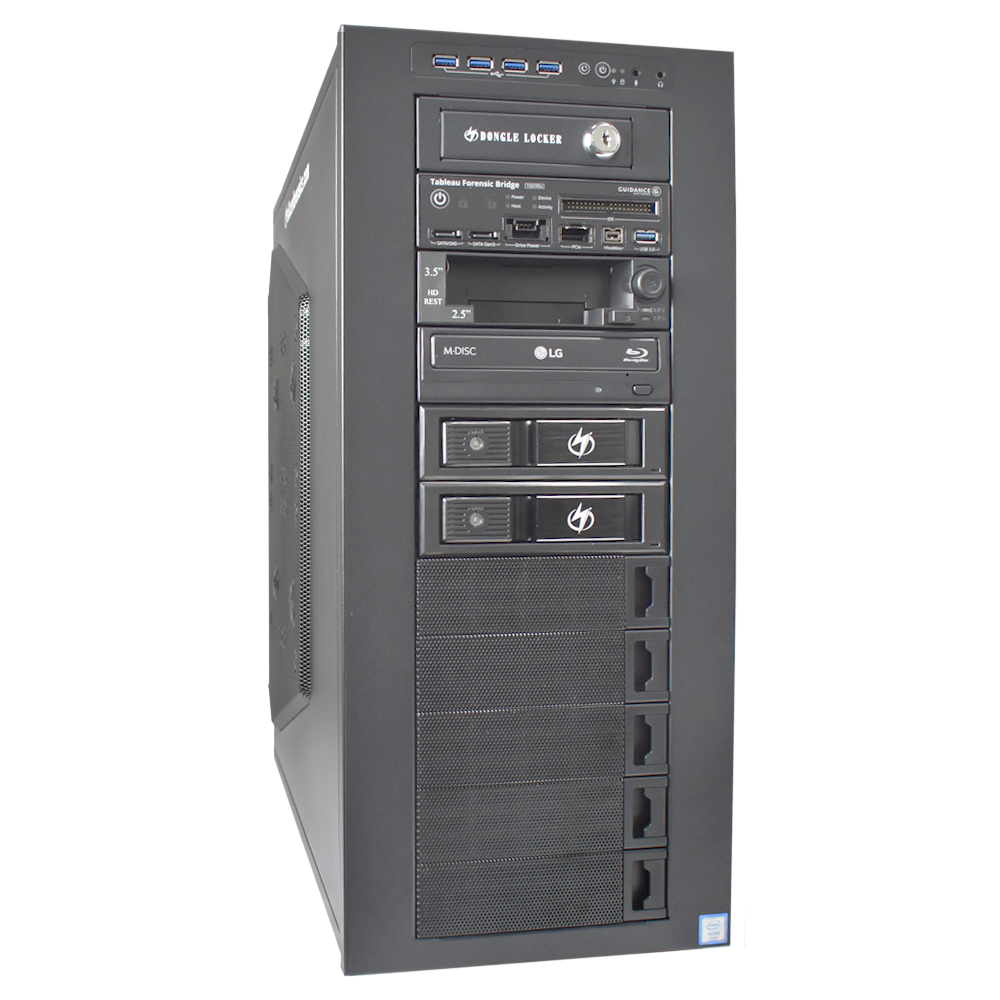

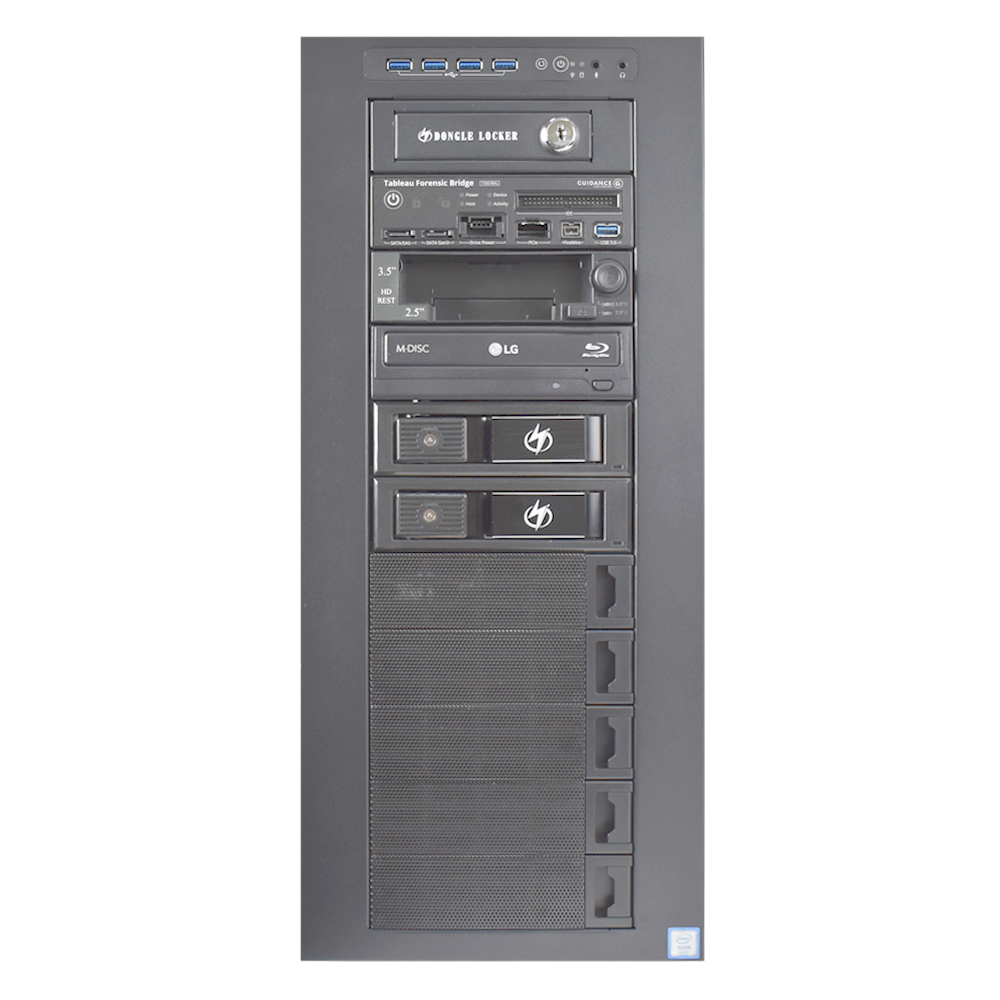

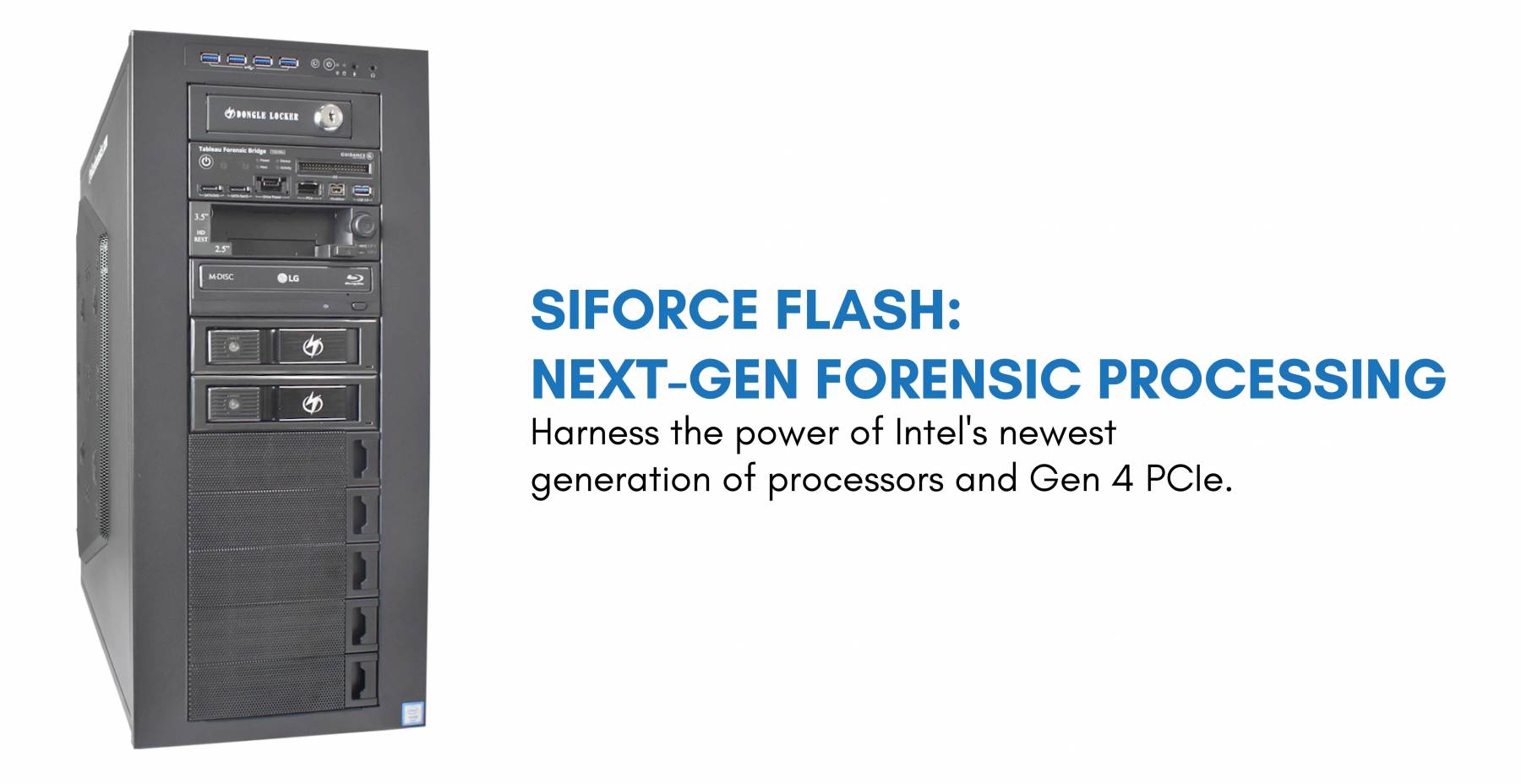

SiForce Flash – starting at $7,895 USD
Harness the power of Intel’s newest generation of processors and Gen 4 PCIe with this next-gen forensic workstation.

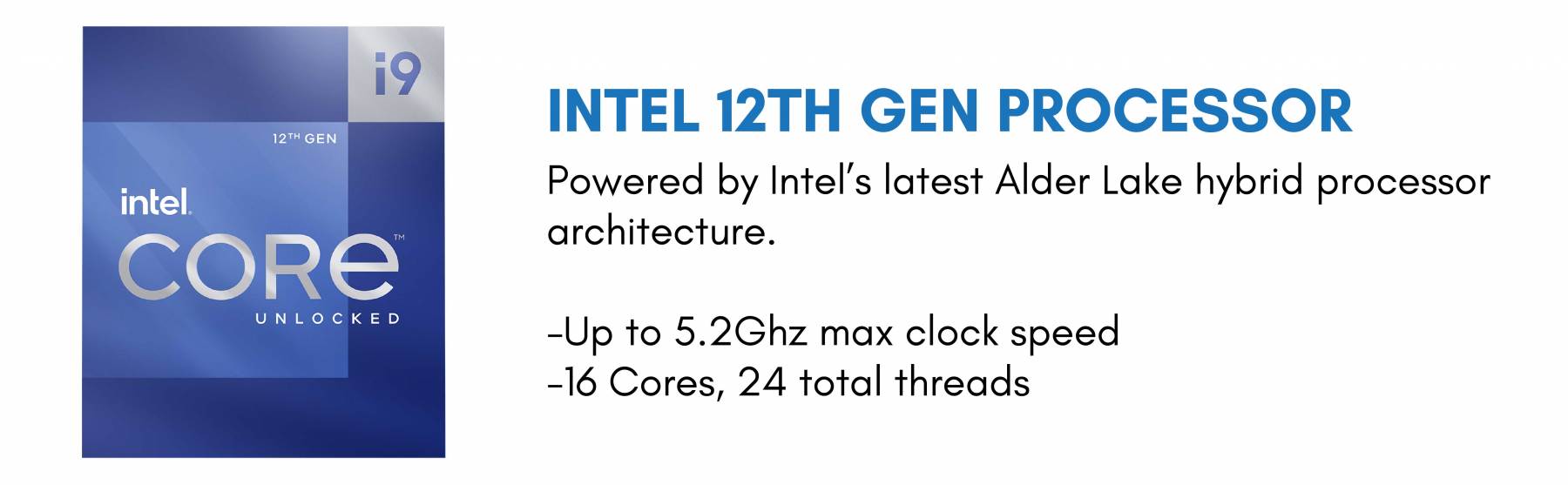

- Intel 12th-Gen Processor. Powered by Intel’s latest Alder Lake hybrid processor architecture with 16 cores and 24 total threads, the max clock speed can reach up to 5.2 GHz.

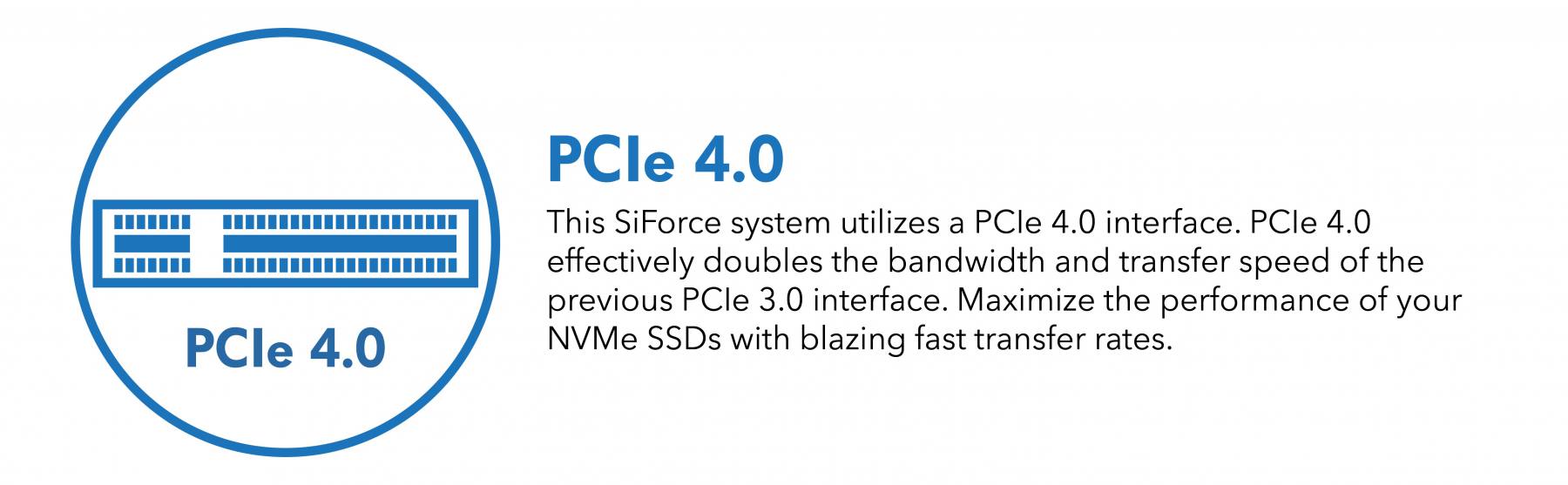

- PCIe 4.0. This SiForce system utilizes a PCIe 4.0 interface. PCIe 4.0 effectively doubles the bandwidth and transfer speed of the previous PCIe 3.0 interface. Maximize the performance of your NVMe SSDs with blazing fast transfer rates.

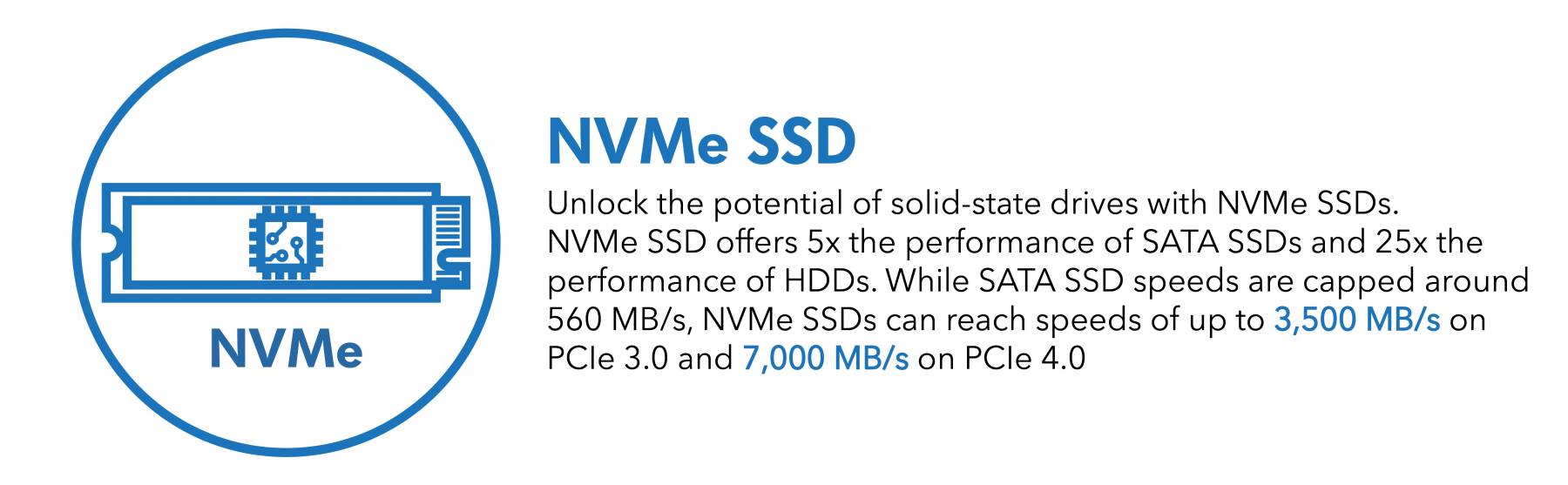

- NVMe SSD. Unlock the potential of solid state drives with NVMe SSDs. NVMe SSD offers 5x the performance of SATA SSDs and 25x the performance of HDDs. While SATA SSD speeds are capped around 560 MB/s, NVMe SSDs can reach speeds of up to 3,500 MB/s on PCIe 3.0 and 7,000 MB/s on PCIe 4.0.

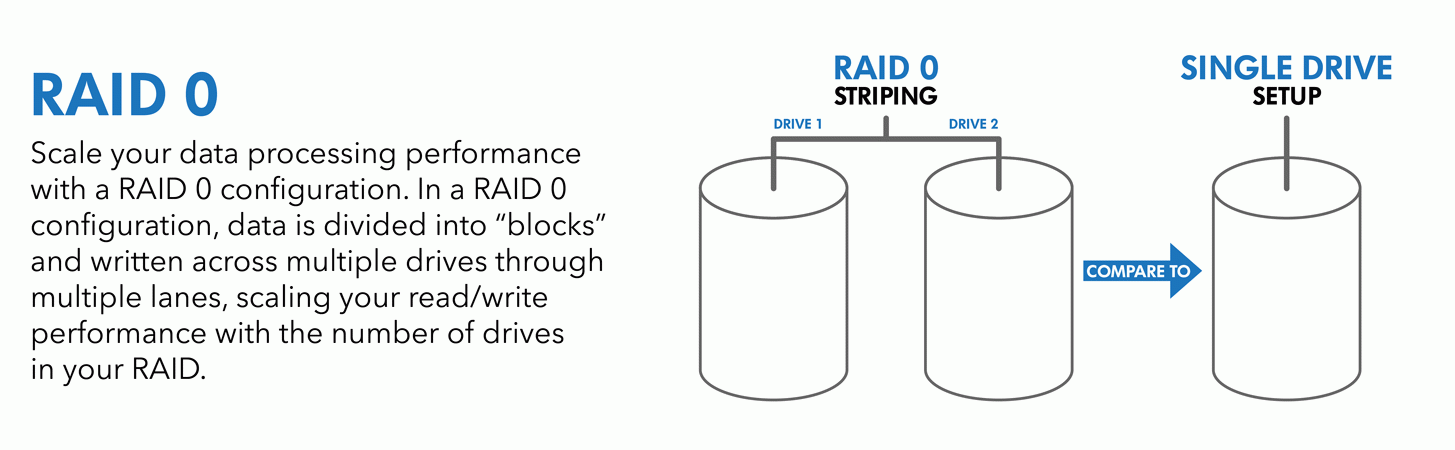

- RAID 0. Scale your data processing performance with a RAID 0 configuration. In a RAID 0 configuration, data is divided into “blocks” and written across multiple drives through multiple lanes, scaling your read/write performance with the number of drives in your RAID.

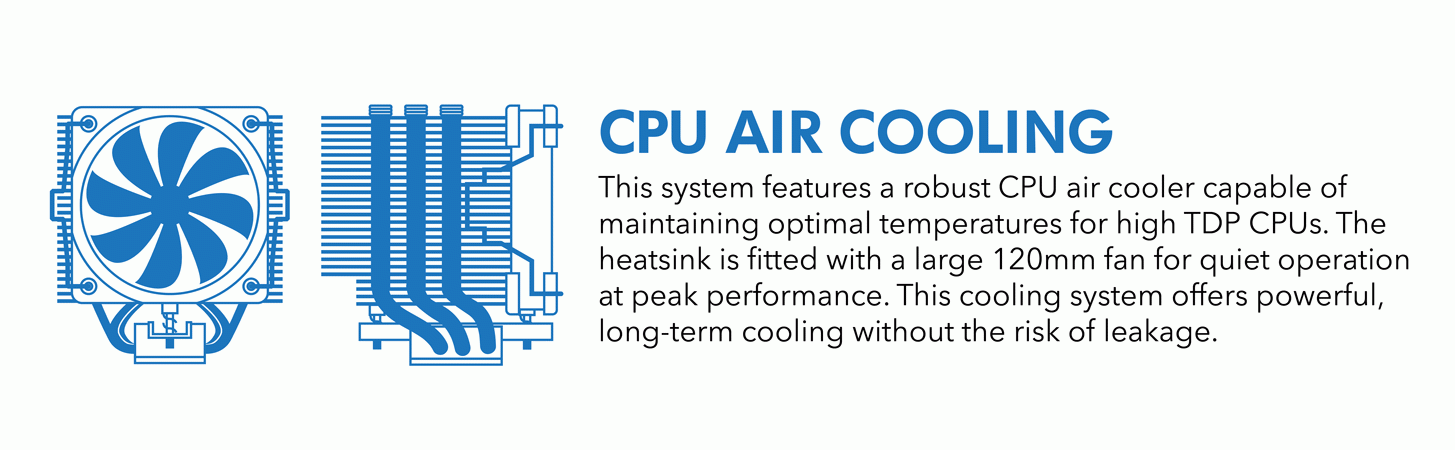

- CPU Air Cooling. This system features a robust CPU air cooler capable of maintaining optimal temperatures for high TDP CPUs. The heatsink is fitted with a large 120mm fan for quiet operation at peak performance. This cooling system offers powerful, long-term cooling without the risk of leakage.

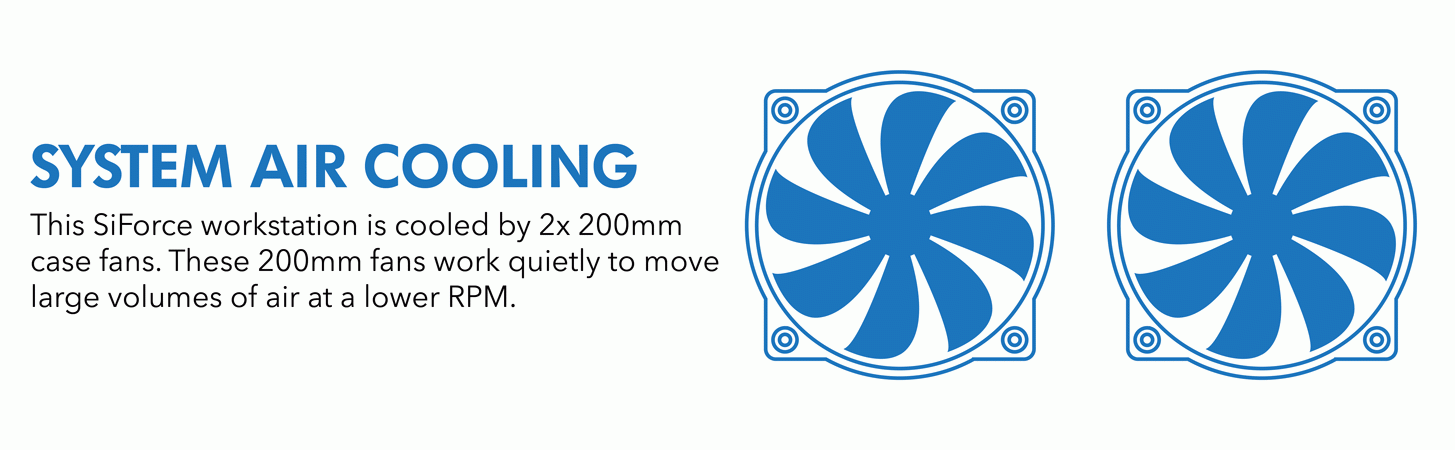

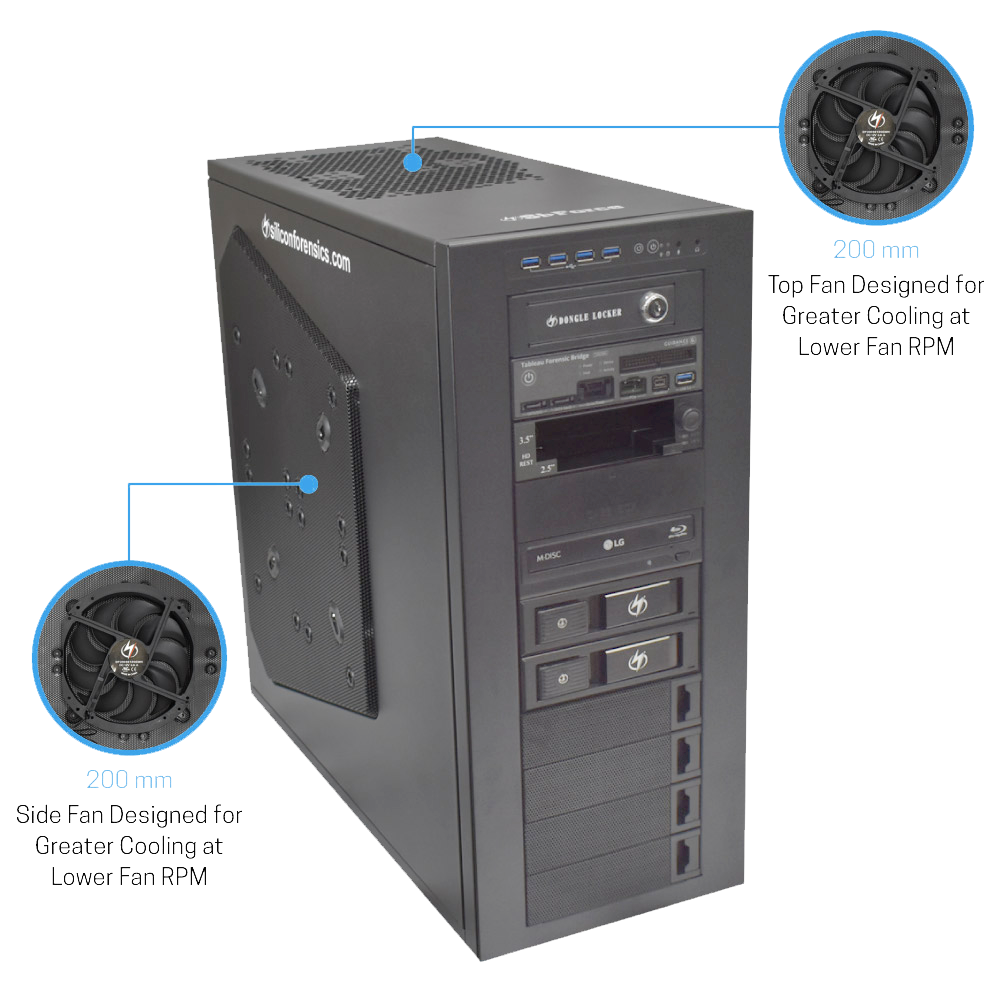

- System Air Cooling. This SiForce workstation is cooled by 2x 200mm case fans. These 200mm fans work quietly to move large volumes of air at a lower RPM.

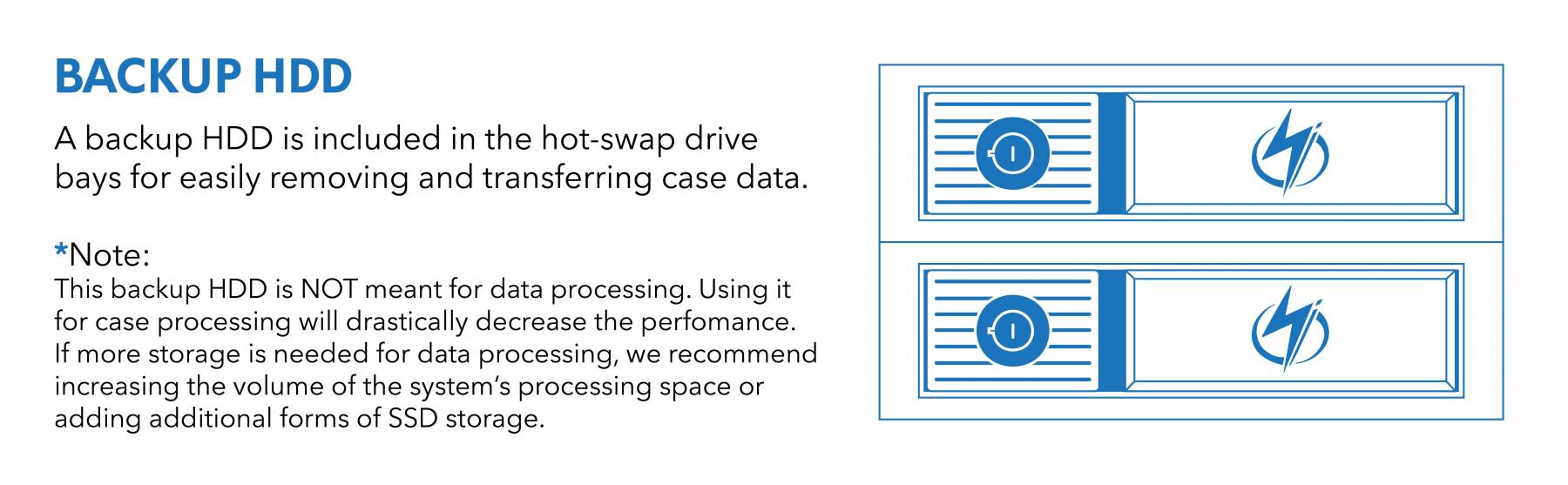

- Backup HDD. A backup HDD is included in the hot-swap drive bays for easily removing and transferring case data.
* Note: This backup HDD is NOT meant for data processing. Using it for case processing will drastically decrease the performance. If more storage is needed for data processing, we recommend increasing the volume of the system’s processing space or adding additional forms of SSD storage.

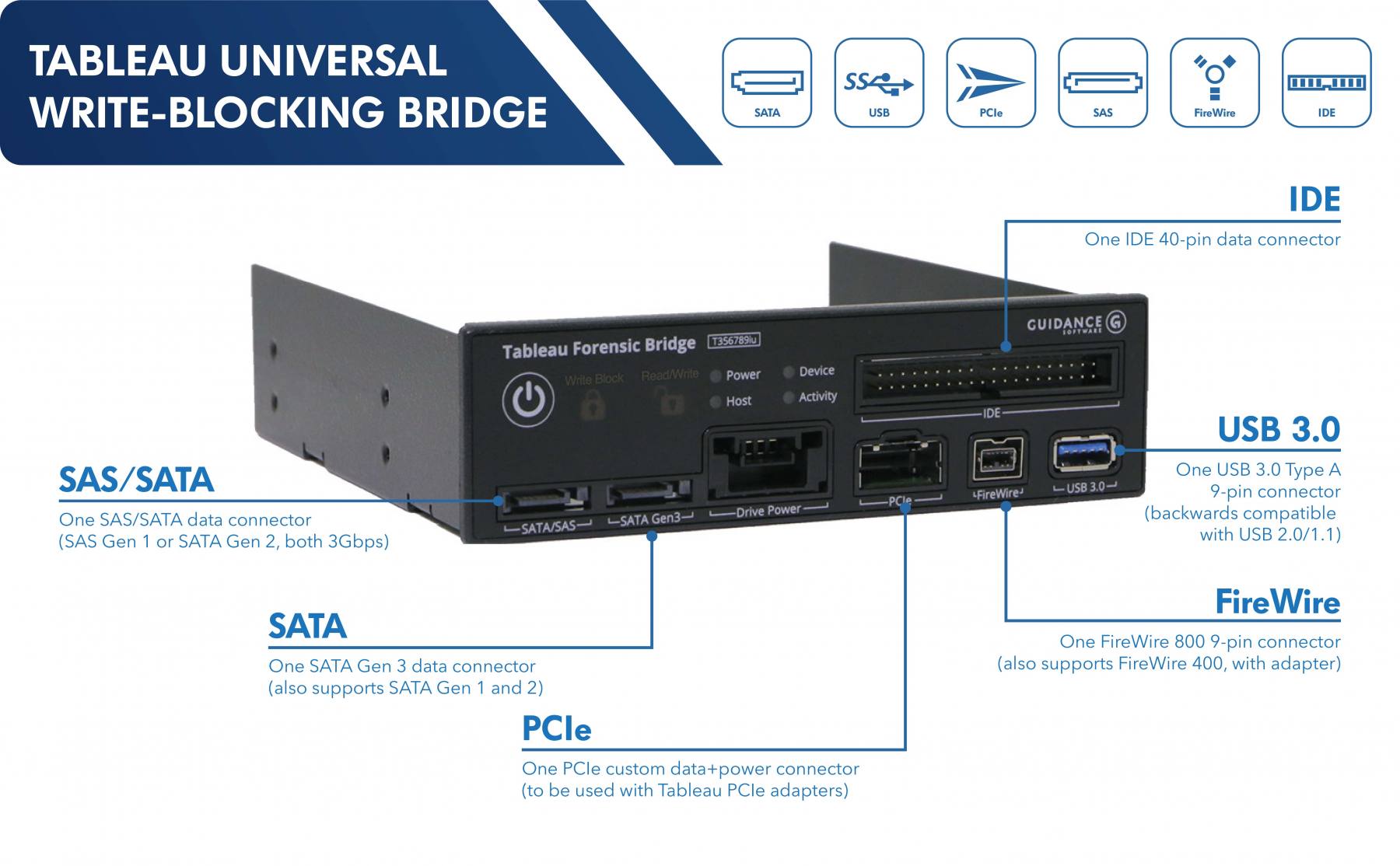

- Tableau Forensic Universal Bridge [T356789iu]. This SiForce workstation includes a Tableau Forensic Universal Bridge, an integrated write-blocker that mounts in a drive bay of a forensic workstation and supports forensic acquisitions of SATA, USB 3.0, PCIe, SAS, FireWire 800, and IDE.
See the Tableau Forensic Universal Bridge webpage for more information.

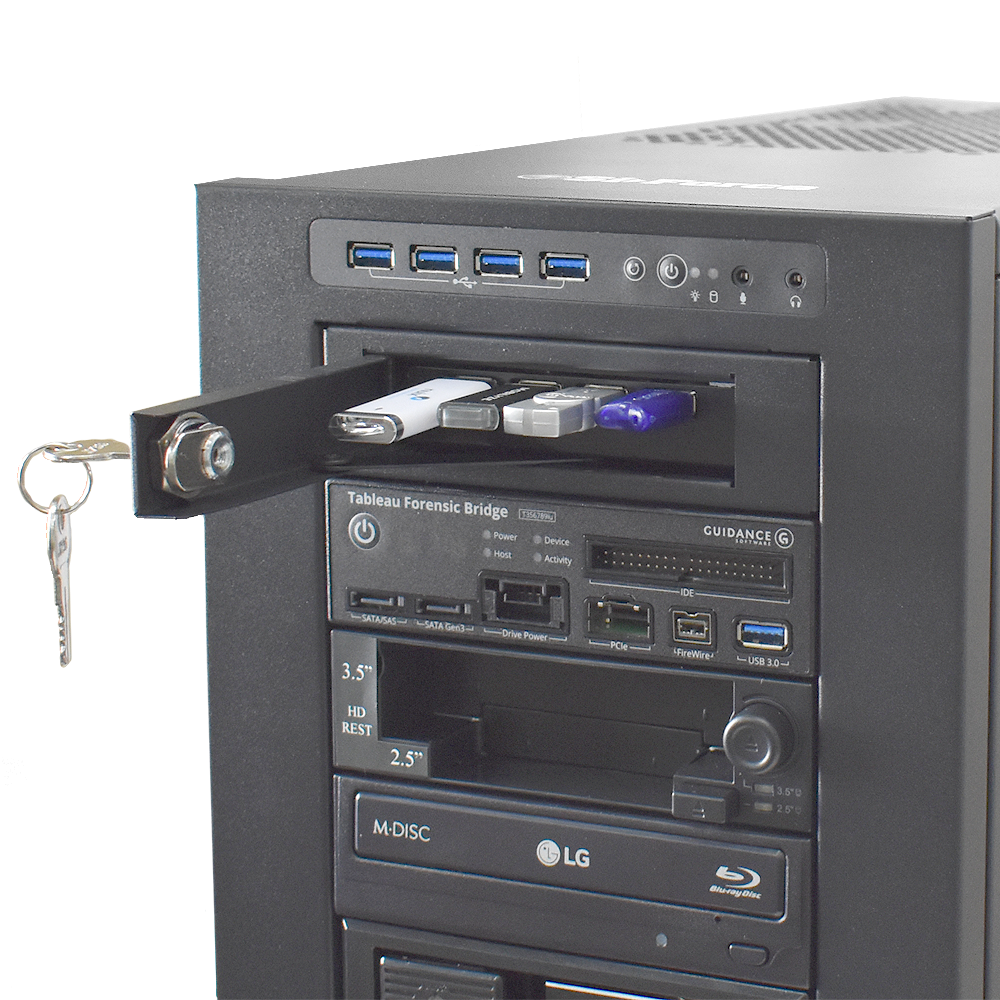

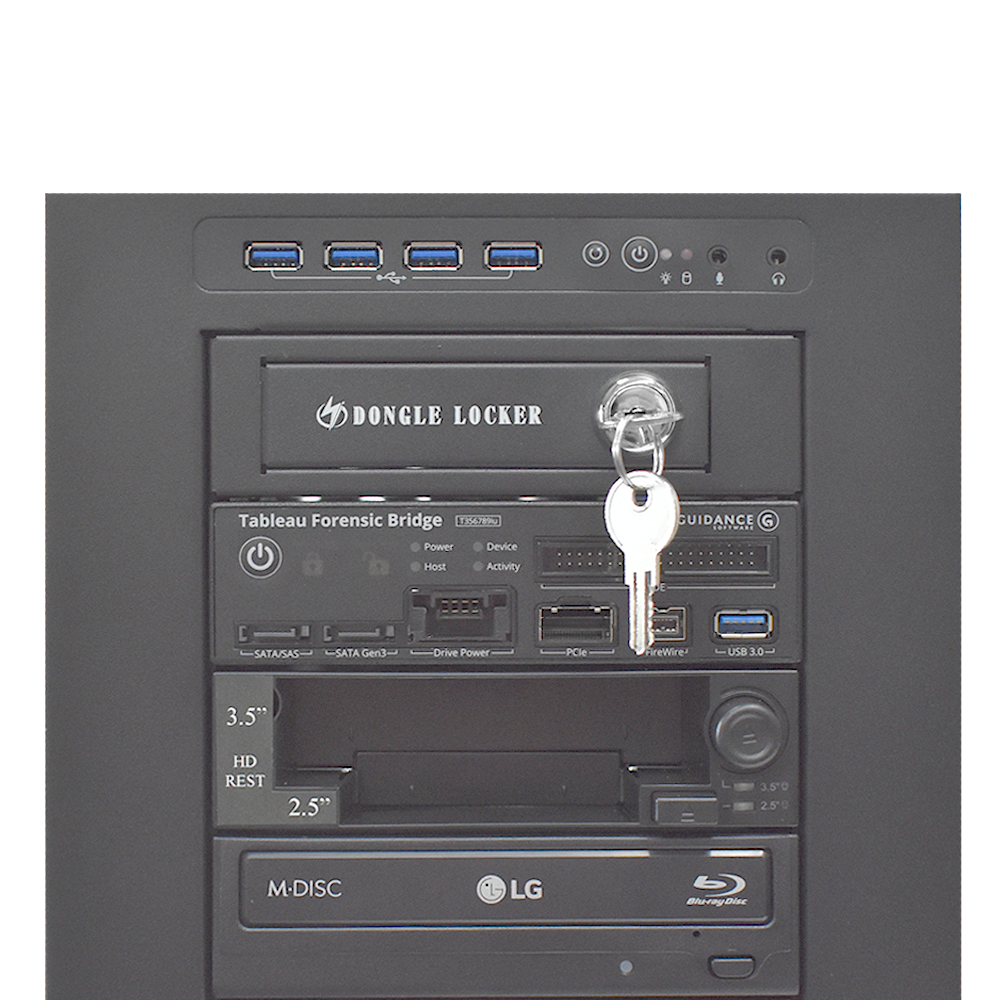

- SiForce Dongle Locker. Protect electronic data stored in software license dongles, flash drives and security keys from unauthorized, physical access with this SiForce Dongle Locker. The locker provides this additional security by keeping a 4-port USB 3.0 hub behind a locked compartment that can only be accessed by key (2 keys included).
See the SiForce Dongle Locker webpage for more information.
|PROCESSOR||Base option: Intel Core i9 12900K 16 Cores, 5.2/3.2 GHz
Alternative 1: Intel Core i9-12900KS 16 Core, 5.5/3.4 GHz (+$300.00 USD)
|MEMORY||Base option: 128GB DDR4|
|OS DRIVE||Base option: 500GB Gen 4 NVMe SSD
Alternative 1: 1TB Gen 4 NVMe SSD (+$200.00 USD)
Alternative 2: 2TB Gen 4 NVMe SSD (+$360.00 USD)
|PROCESSING SPACE||Base option: 8TB (4 x 2TB) Gen 4 NVMe SSD
Alternative 1: 16TB (4 x 4TB) Gen 4 NVMe SSD (+$2,000.00 USD)
|TEMP DRIVE||Base option: 1TB Gen 4 NVMe SSD
Alternative 1: 2TB Gen 4 NVMe SSD (+$500.00 USD)
|DATA STORAGE||Base option: 10TB Enterprise HDD
Alternative 1: 16TB Enterprise HDD (+$200.00 USD)
|VIDEO||Base option: On-board video
Alternative 1: GeForce RTX 3060 (+$600.00 USD)
Alternative 2: GeForce RTX 3070Ti (+$900.00 USD)
Alternative 3: GeForce RTX 3080 (+$1,300.00 USD)
|IO PORTS||RJ45 2.5Gb LAN
USB 3.2 Gen 2 (1 Rear)
USB 3.2 Gen 2 x 2 (1 Rear) Type C
USB 3.0 (4 Front, 2 Rear)
USB 3.0 (4 Front locked)
Tableau Universal Bridge
-Read only SATA
-Read only SAS
-Read only IDE
-Read only USB
-Read only FW800
-Read only PCIe
|OPTICAL DRIVE||16x Blu-Ray RW|
|HOT-SWAP BAYS||Base option: Two hot-swap bays and one 2.5-inch drive adapter
Alternative 1: Three hot-swap bays and two 2.5-inch drive adapters (+$100.00 USD)
Alternative 2: Four hot-swap bays and three 2.5-inch drive adapters (+$200.00 USD)
|KEYBOARD AND MOUSE||Base option: Wired USB Keyboard and Mouse
Alternative 1: Wireless USB Keyboard and Mouse (no additional cost)
Alternative 2: Mechanical RGB Wired USB Keyboard and Mouse (+$50.00 USD)
|OPERATING SYSTEM||Windows 10 Professional|
|CASE OPTIONS||Base Option: 11 Bay Tower
Alternative 1: 8 Bay Tower (No additional cost)
Alternative 2: 4U Rackmount with Rails (+$200.00 USD)
USED WITH TABLEAU
|Base option: None
Alternative 1: Tableau PCIe Adapter Bundle [TKDA-PCIE-5PC]
Alternative 2: Tableau SATA & IDE Adapter Bundle [TKDA-SATA-IDE-7PC]
|WARRANTY||Base option: 3-year SiShield Parts & Labour
Alternative 1: 5-Year SiShield Parts & Labour (+$500.00 USD)
