SiForce Nano II

SIFORCE NANO II – starting at $3,995 USD

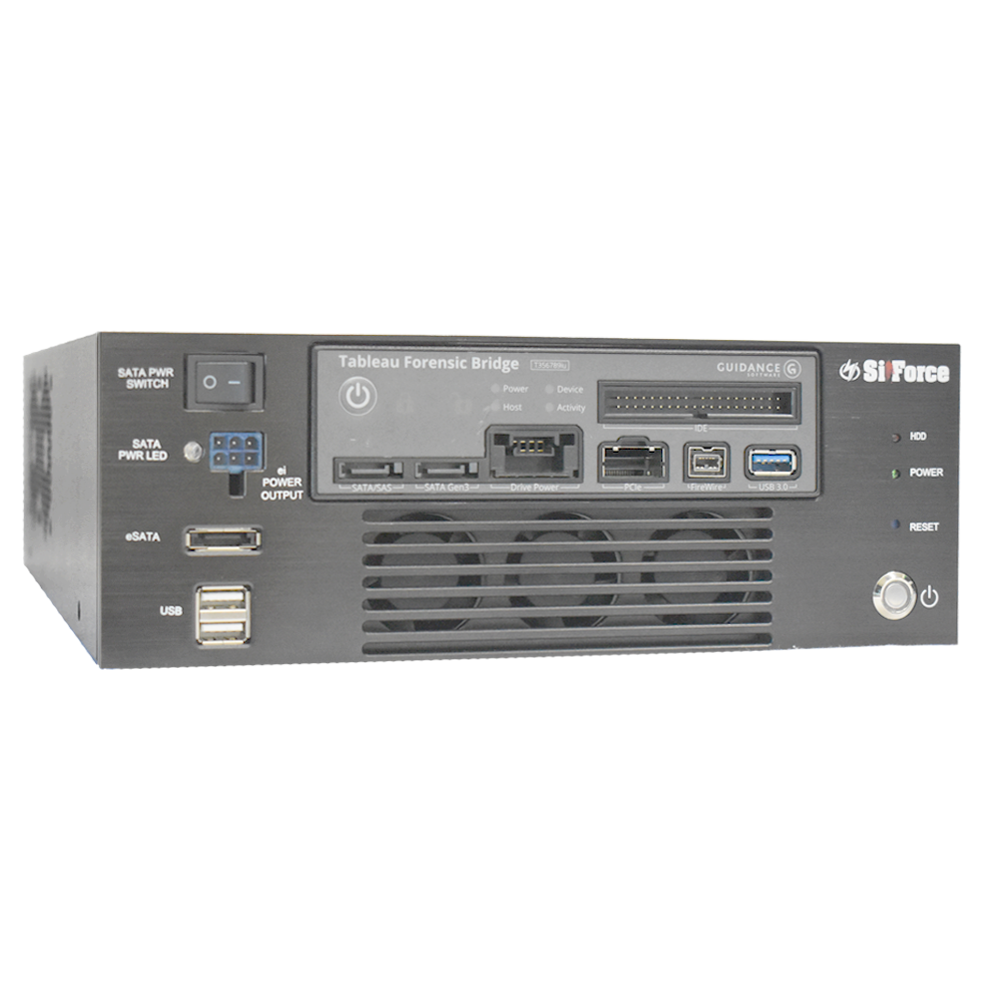

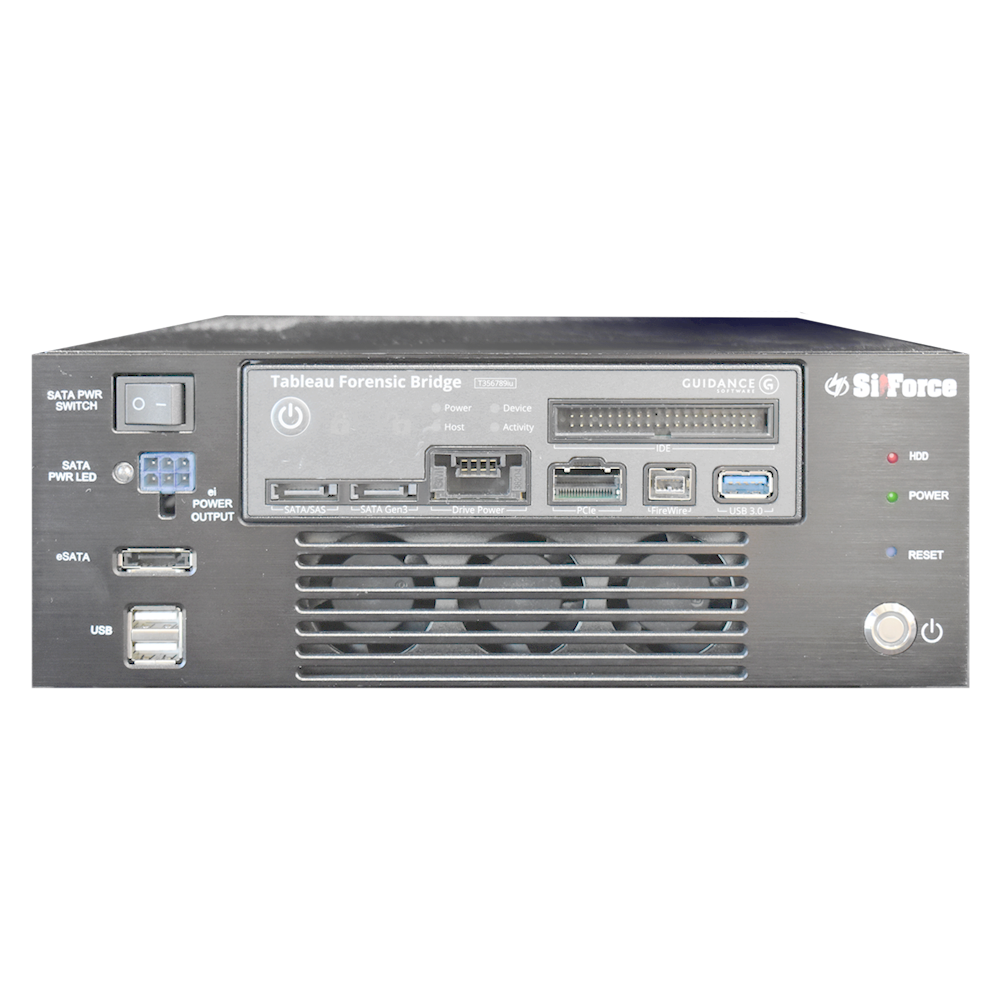

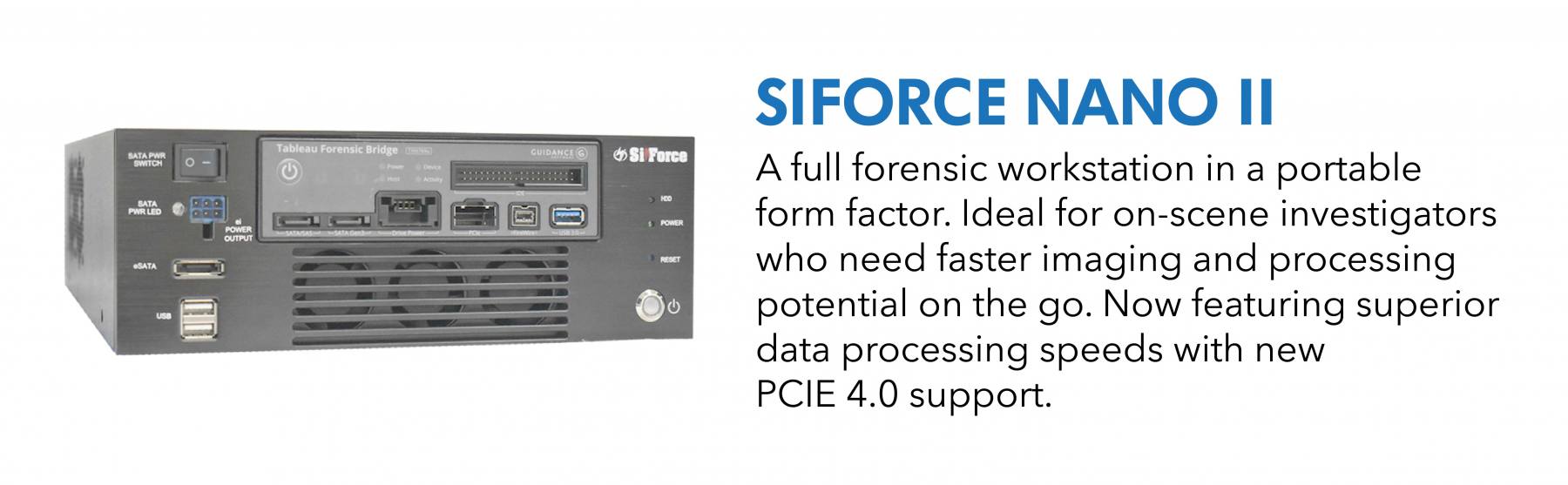

The SiForce Nano II is a full-powered forensic workstation that is compact and portable. It packs an Intel® Core™ i7 Processor (potential upgrade to Intel® Core™ i9 Processor) and a powerful SSD RAID into a small, custom designed form factor. This all-in-one forensic lab processes data faster than typical forensic workstations or servers, and at 1/10th the size of a forensic tower, it allows for easy transportation and on-site processing. A built-in Tableau forensic bridge allows for directly connecting media requiring write-block for one-off quick lookups, or for targeted or physical forensic collection. The SSD RAID (up to 54TB!) makes short work of disk-intensive tasks: directory recovery, data carving, log2timeline, Volatility plugins, processing from forensic tools, ediscovery processing, data export, and load file creation has never been faster.

Forensic or e-discovery software processing, search, and export that would take 24+ hours on a single standard computer takes only 1/3 of the time with the SiForce Nano II. There is no need to ship multiple computer systems and setup a temporary lab to meet the processing goals and deadlines. The Nano II will enable your team to streamline their work and easily meet all project goals, all while having a small footprint.

Features

Easily Transportable All-In-One Forensic Lab

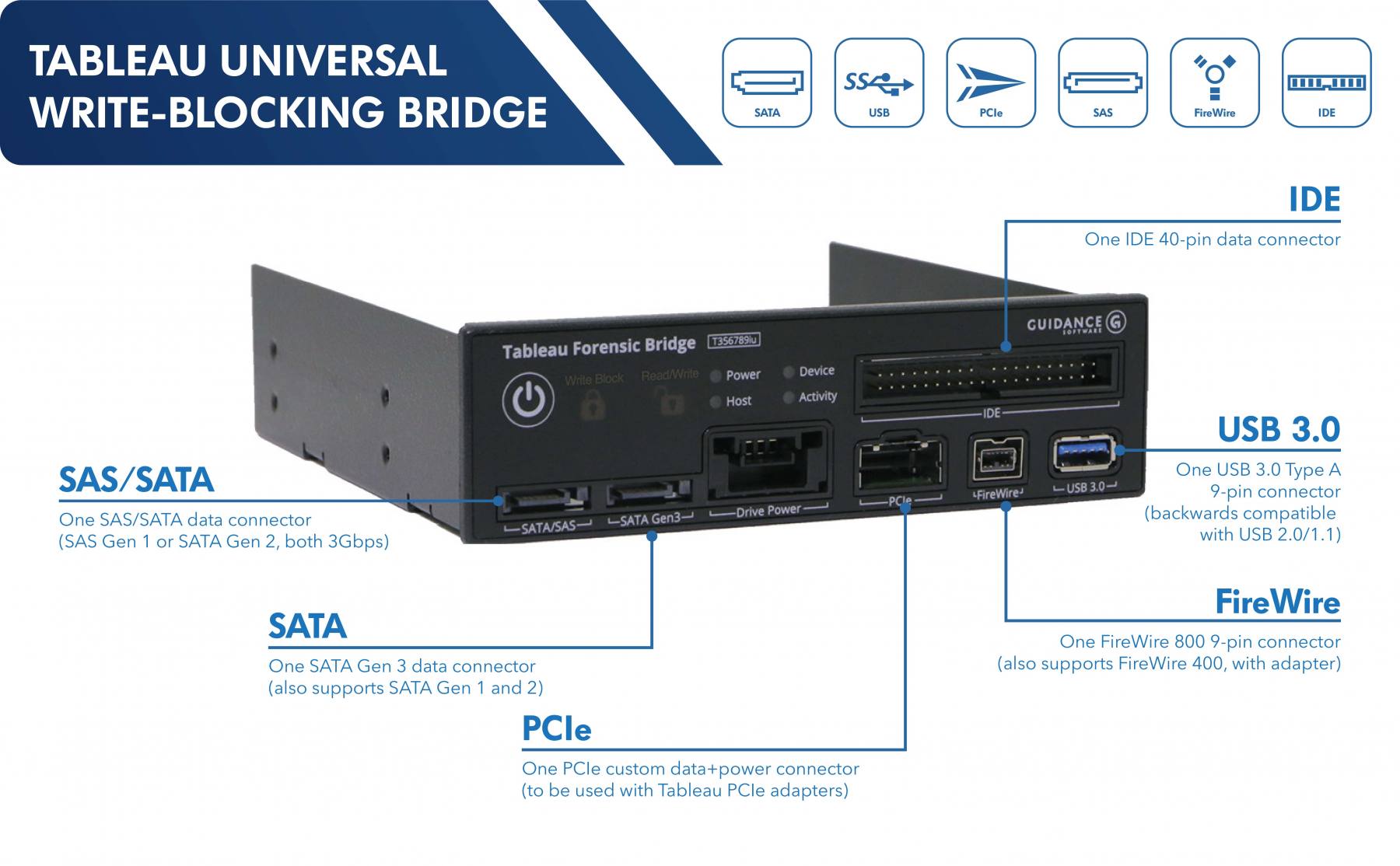

  • Built-in Tableau forensic bridge for easy connection and quick targeted or physical evidence collection

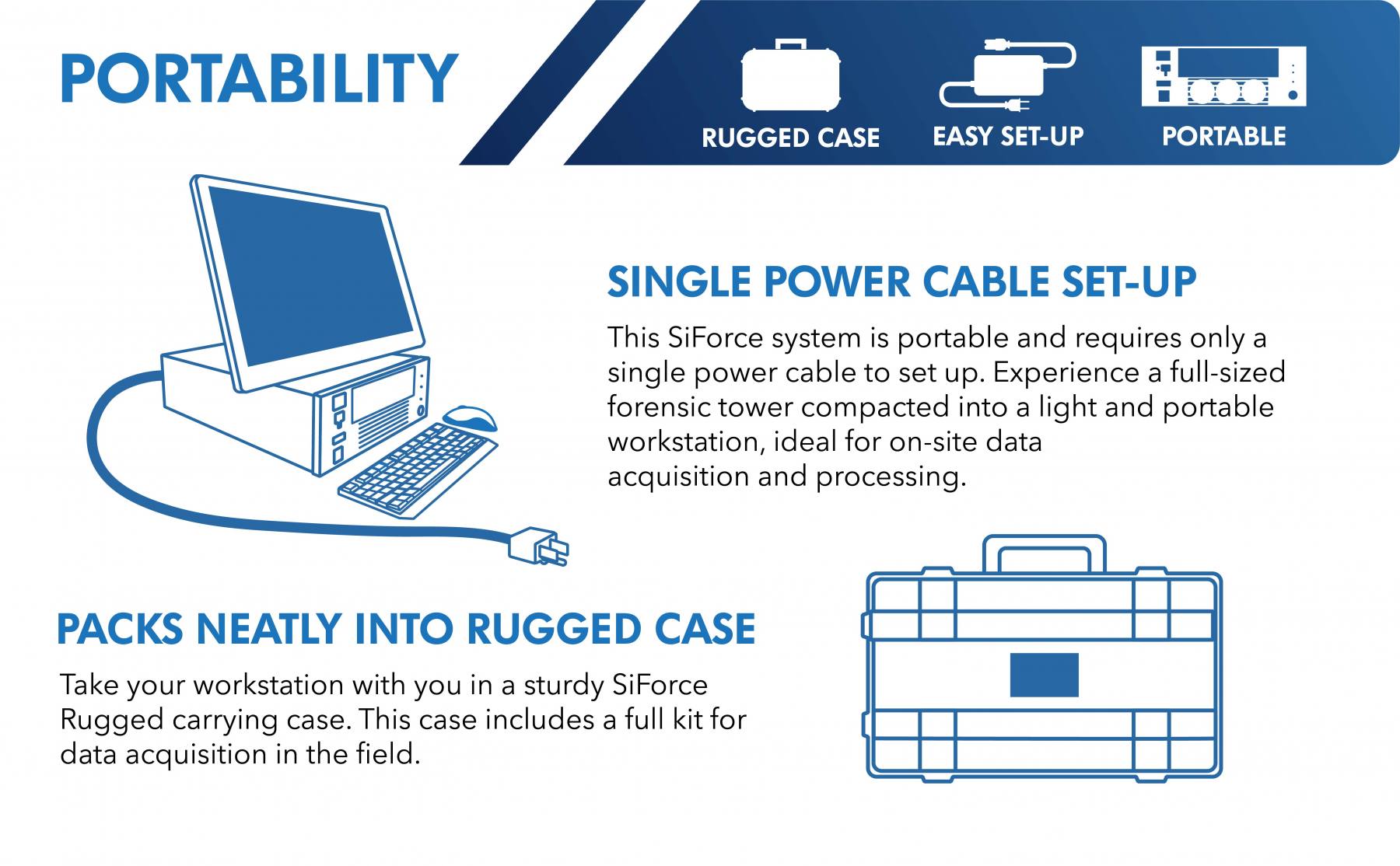

  • Additional accessories such as rugged travel case allow for easy transportation and on-site processing

Compact, Full-Powered Forensic Workstation

  • Small, custom-designed form factor
  • SSD RAID

Supports up to 7 SSDs

  • 7 x 480GB Enterprise SSD RAID option for large storage capacity and high processing speeds
PROCESSOR Base option: Intel Core i7-9700, 8 Core 2.9/4.7Ghz
Alternative 1: Intel Core i9-9900, 8 Core 3.1/5.0Ghz (+$300.00 USD)
MEMORY Base option: 32GB DDR4 (2 x 16GB)
Alternative 1: 64GB DDR4 (2 x 32GB) (+$300.00 USD)
OS DRIVE Base option: 500GB SSD
Alternative 1: 1TB SSD (+$300.00 USD)
Alternative 2: 2TB SSD (+$560.00 USD)
PROCESSING SPACE Base option: 2TB PCIe NVMe SSD
Alternative 1: 4TB PCIe NVMe SSD (+$1,600.00 USD)
Alternative 2: 3.3TB (7 x 480GB Enterprise SSD RAID) (+$2,400.00 USD)
Alternative 3: 6.7TB (7 x 960GB Enterprise SSD RAID) (+$4,800.00 USD)
Alternative 4: 54TB (7 x 7.68TB Enterprise SSD RAID) (+$18,000.00 USD)
STORAGE Base option: None
Alternative 1: 2TB SATA HDD (+$120.00 USD)
Alternative 2: 1TB SATA SSD (+$200.00 USD)
Alternative 3: 2TB SATA SSD (+$350.00 USD)
Alternative 4: 4TB SATA SSD (+$700.00 USD)

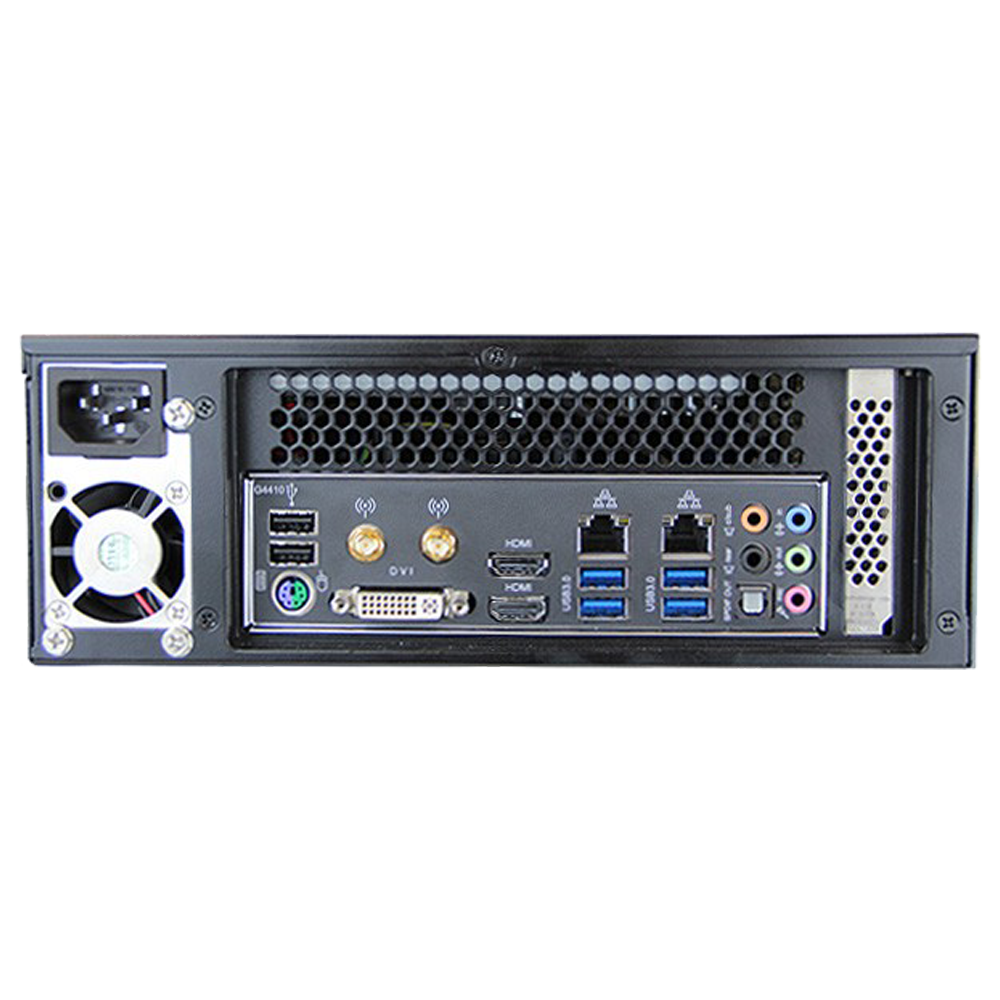

IO PORTS USB 3.0/3.1 Gen 1 (4 rear)
USB 2.0 (2 front, 2 rear)
ei Power Output for internal SATA drive
5.1 Digital Audio
HDMI (2 rear)
Front eSATA
DVI
Dual Band Wireless AC
Read-only SATA port
Read-only IDE port
Read-only USB 3.0/3.1 Gen 1 port
Read-only Firewire port
Read-only SAS port
Read-only PCIe port

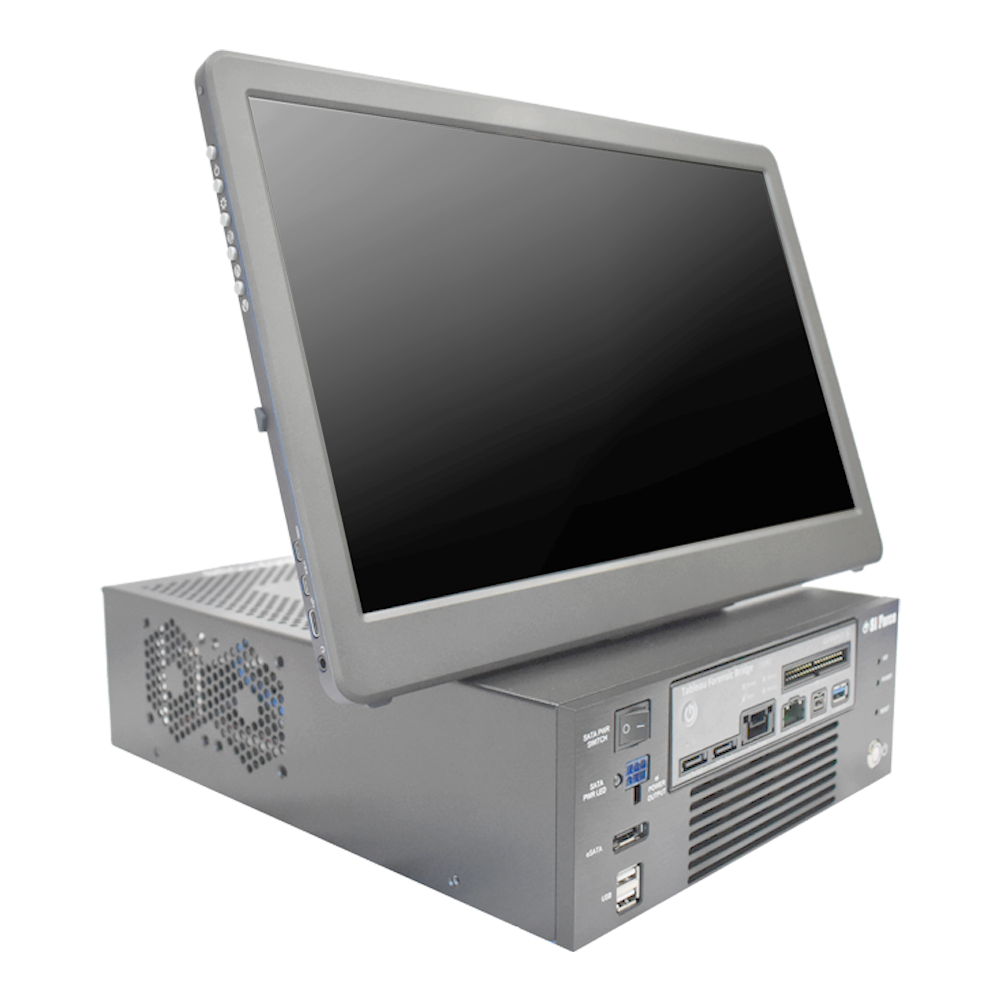

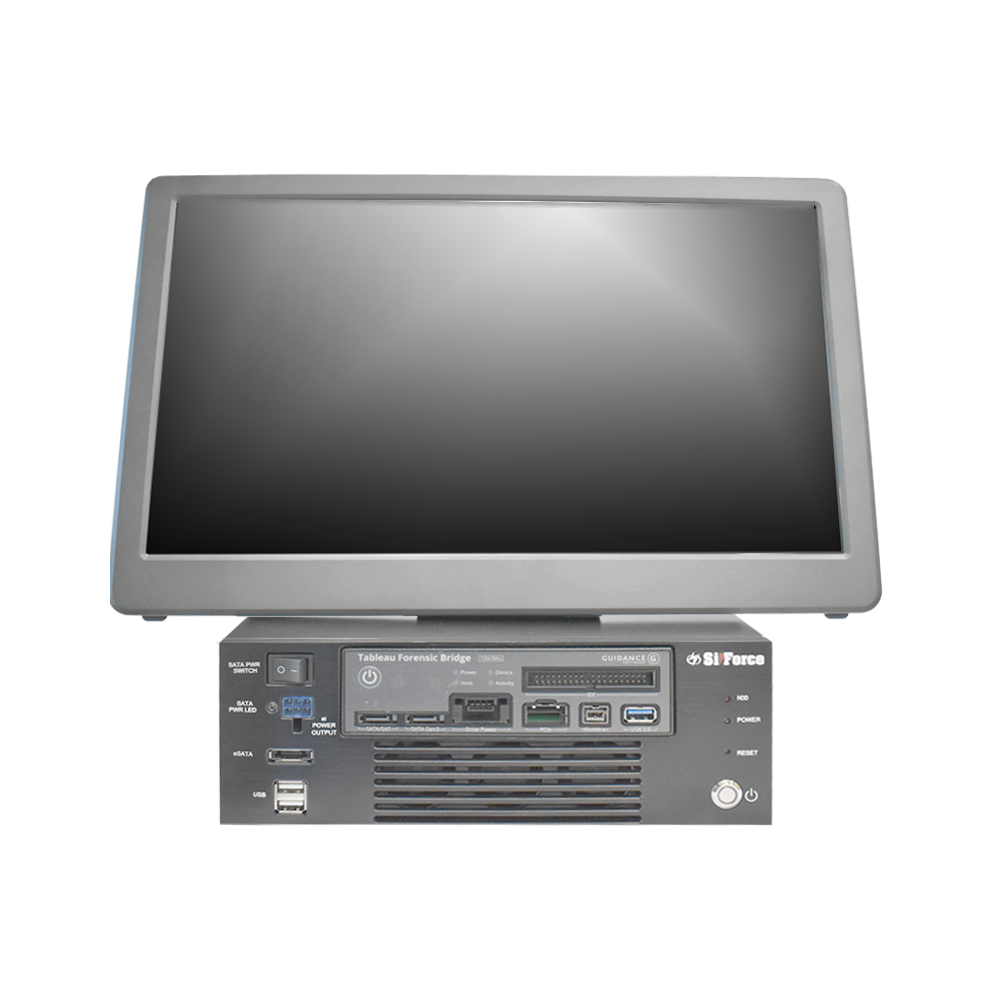

DISPLAY 15.6″ Portable Slim Monitor

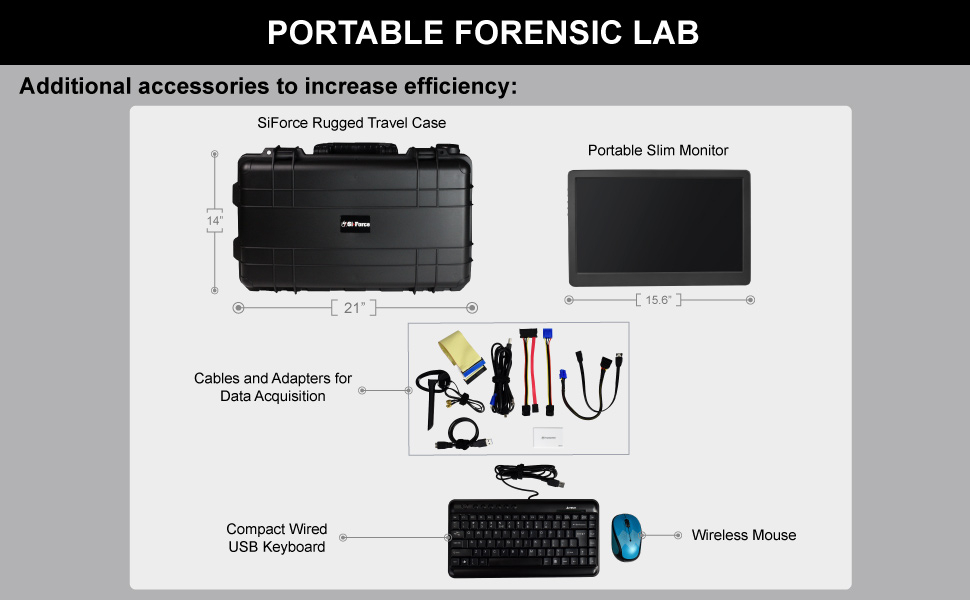

ADDITIONAL ACCESSORIES Wireless Mouse
Compact USB Keyboard
Cables and Adapters for Data Acquisition
MONITOR & RUGGED TRAVEL CASE OPTIONS Base option: Monitor & rugged travel case included
Alternative 1: Exclude LCD Monitor (-$200.00 USD)
Alternative 2: Exclude Rugged Travel Case (-$200.00 USD)
Alternative 3: Exclude both LCD Monitor and Rugged Travel Case (-$400.00 USD)

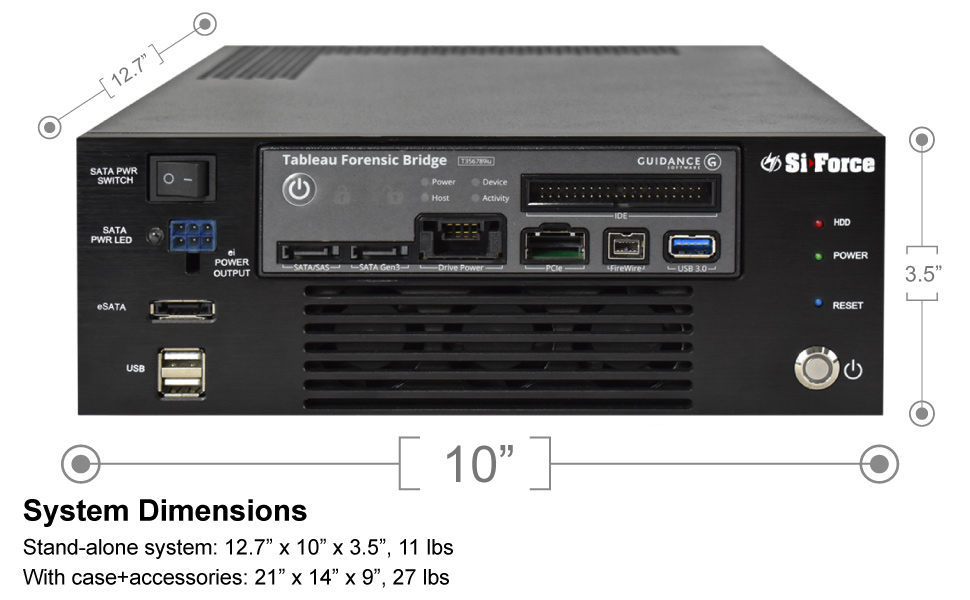

DIMENSIONS AND WEIGHT Nano II: (12.7″ x 10″ x 3.5″) or (32.3cm x 25.4cm x 8.9cm)
Nano II Weight: 11 lbs or 5 kg

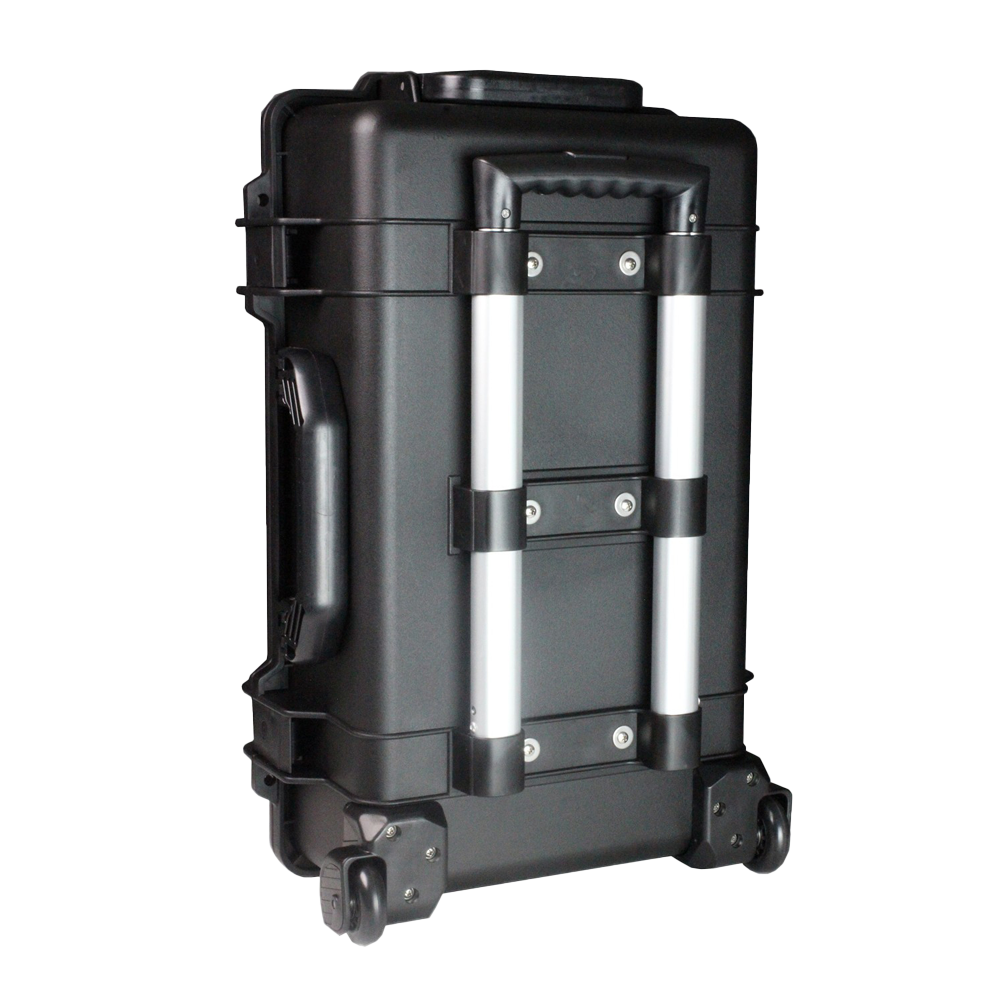

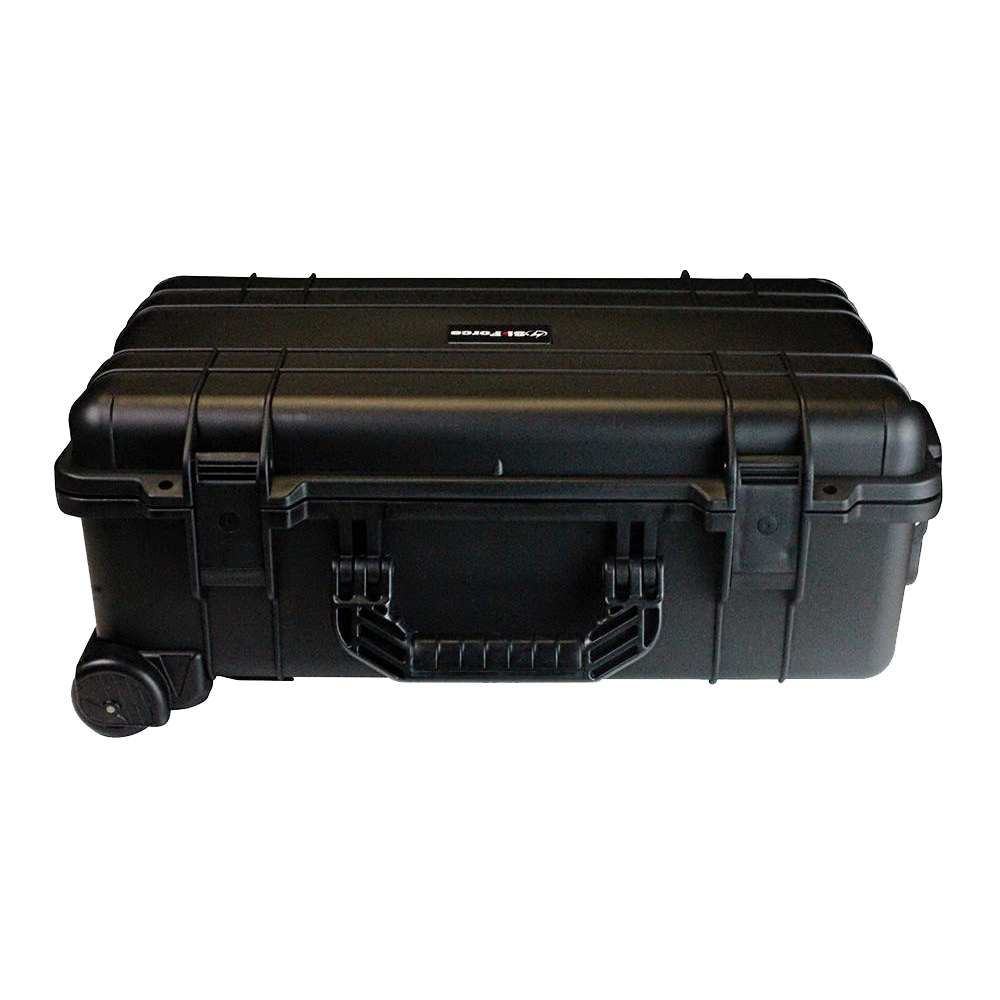

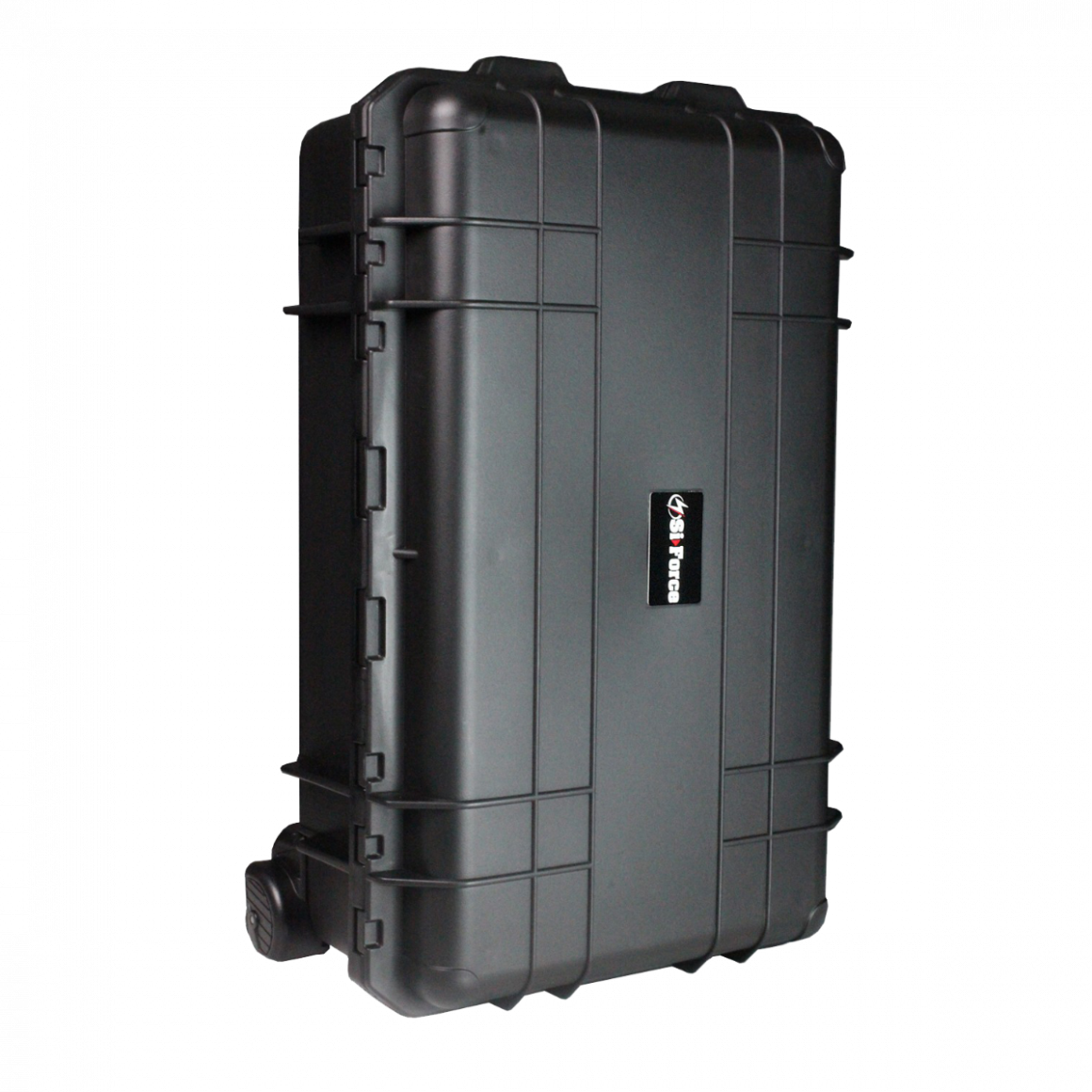

Rugged Travel Case: (21″ x 14″ x 9″) or (53.3cm x 35.6cm x 22.9cm)
Rugged Travel Case + Nano II + Monitor Weight: 27 lbs or 12.3 kg
OPERATING SYSTEM Windows 10 Professional
TABLEAU ADAPTERS
(QUOTED SEPARATELY)
Base option: None
Alternative 1: Tableau PCIe Adapter Bundle [TKDA-PCIE-5PC]
Alternative 2: Tableau SATA & IDE Adapter Bundle [TKDA-SATA-IDE-7PC]
WARRANTY Base option: 3-year SiShield Parts & Labour
Alternative 1: 5-Year SiShield Parts & Labour (+$400.00 USD)

Note: If requesting a quote for this item, please advise exact item quantity and your full shipping address, as we require this information to estimate shipping costs. Thank you!

Request a Quote
