SiForce One – starting at $5,895 USD

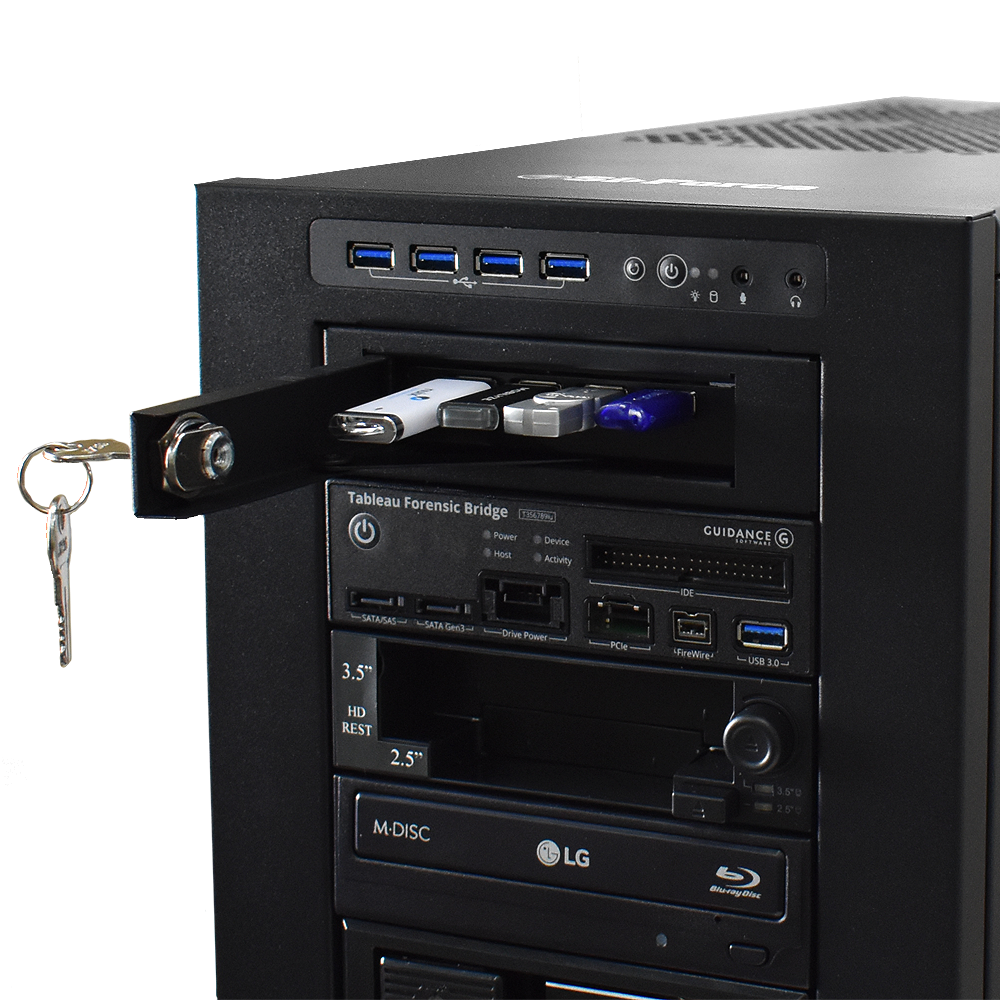

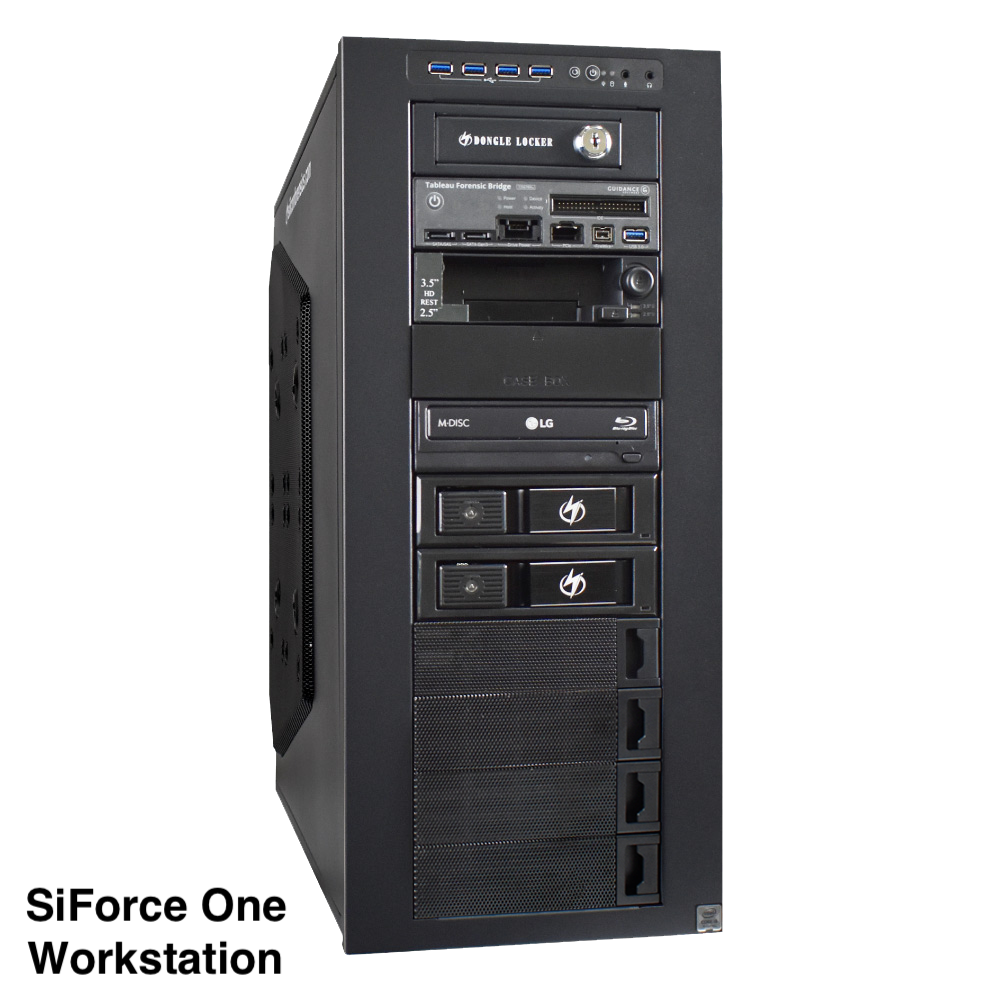

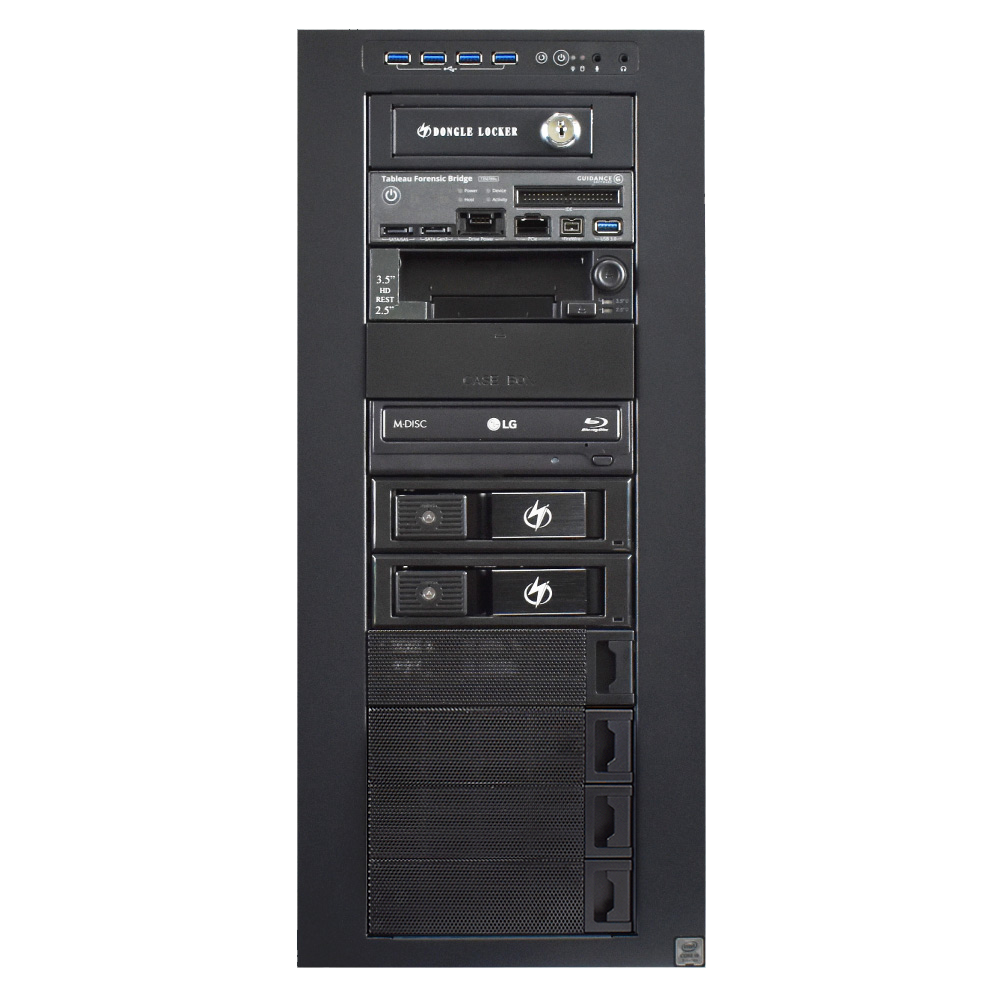

SiForce One is a forensic workstation optimized using software manufacturer’s recommended configuration. It is for everyday use by investigators to acquire digital imaging, processing data, review, and data storage. A key feature of this system is its hot-pluggable, write protected, hard drive enclosure which provides investigators the ability to acquire digital images from several source hard drives without the need for down time to swap drives. The destination drive bay is also hot-swappable enabling the investigator to use several drives for larger images without having to shutdown the system. SiForce One is the most flexible forensic system in the market, additional trays are supplied to accommodate either IDE drives, SATA drives, or laptop drives.

Silicon Forensics is the first to offer Intel® Optane™ Storage Technology and Intel® Core™ i9 Processor in the SiForce One’s base configuration.

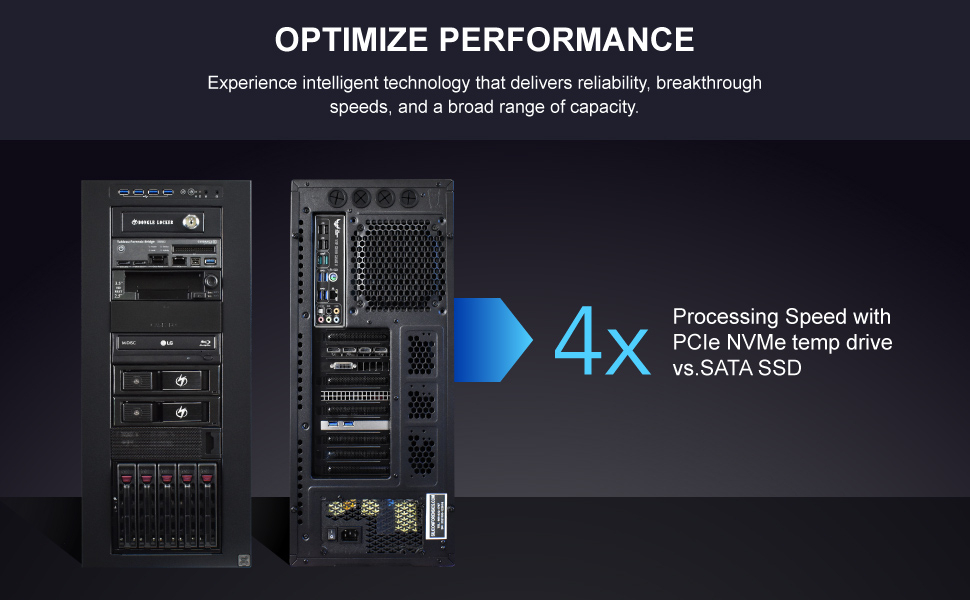

  • 8X Faster Drive Processing Speed with PCIe NVMe temp drive vs. SATA SSD
  • 4X Faster Imaging Speed

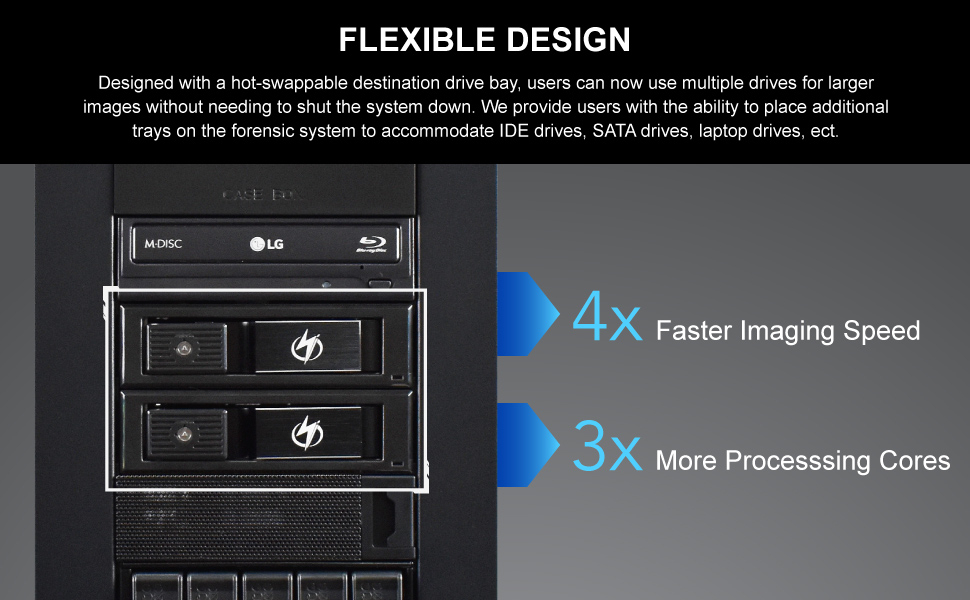

  • Hot Swap Drive Bays: Image multiple drives without stopping to restart the machine
  • 3X More Processing Cores
  • 8X Faster I/O with optional Thunderbolt 3 port: 40GBps Thunderbolt 3 vs 5GBps USB 3.0
PROCESSOR

Intel Core i9-7900X 10 Core 3.3Ghz

(up to Intel Core i9-7980XE 18 Core 2.6Ghz)

MEMORY 32GB DDR4 (up to 128GB DDR4)
OS DRIVE 256GB SATA III SSD (up to 2TB)
TEMP DRIVE 280GB Optane 3D XPoint (up to 1TB NVMe PCIe SSD)
DATA STORAGE 1TB SSD SATA III (up to 3.84 TB SSD SATA III)
RAID STORAGE 2TB 7200RPM SATA III ( No RAID) (up to 32TB RAID 5)
VIDEO

GeForce GT 1030 2GB PCIe

Upgrade Option: GeForce GTX 1060 3GB PCIe 1DVI/3DP

Upgrade Option: GeForce GTX 1080 8GB PCIe 1DVI/1 HDMI\3DP

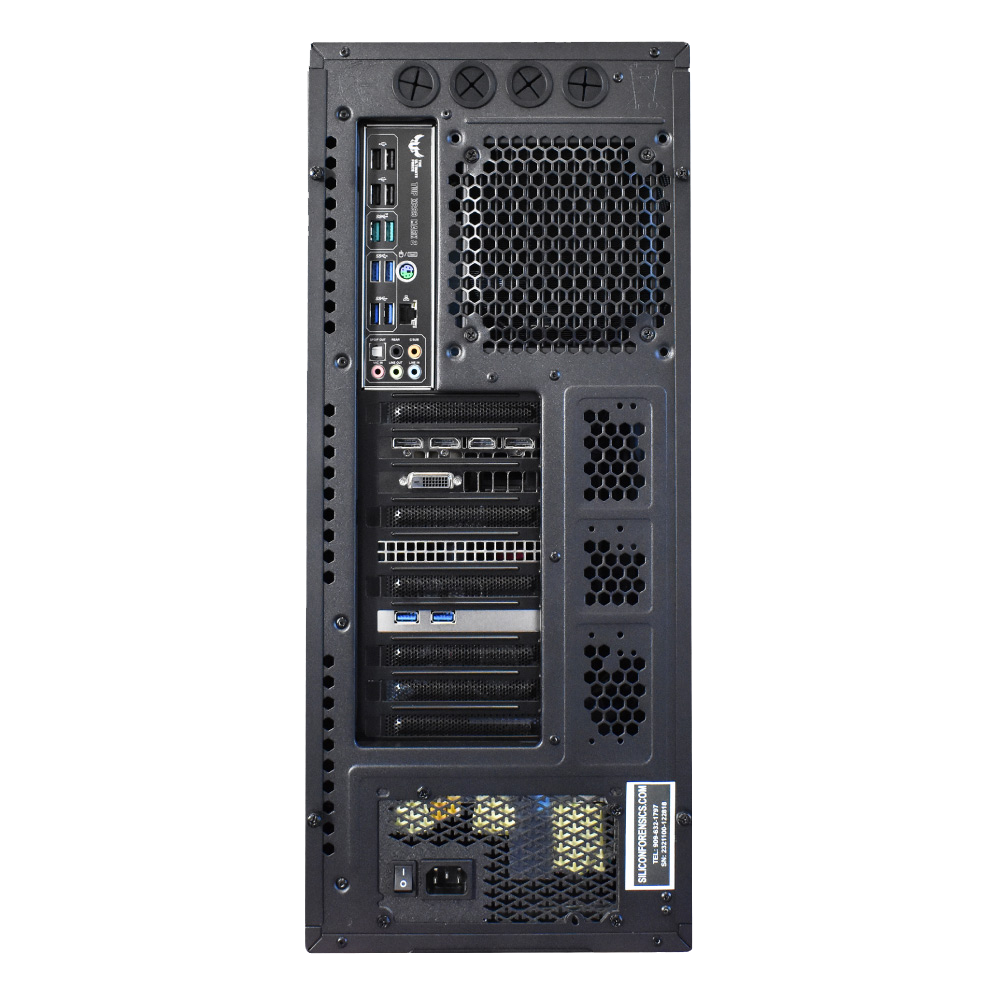

IO PORTS USB 3.1 (1 Rear)
USB 3.0 (4 front, 6 rear)
USB 2.0 (4 rear)
eSATA (2)
8-channel (7.1)
HD Audio Subsystem
Read-only SATA port
Read-only IDE port
Read-only USB port
Read-only PCIe port
Read-only FW800 port
Read-only SAS port
Read-only PCIe port
OPTICAL DRIVE Blu-Ray 16x Writing Speed and Supports BDXL (128GB) discs
OPERATING SYSTEM Windows 10 Professional (Windows 7 Optional)
