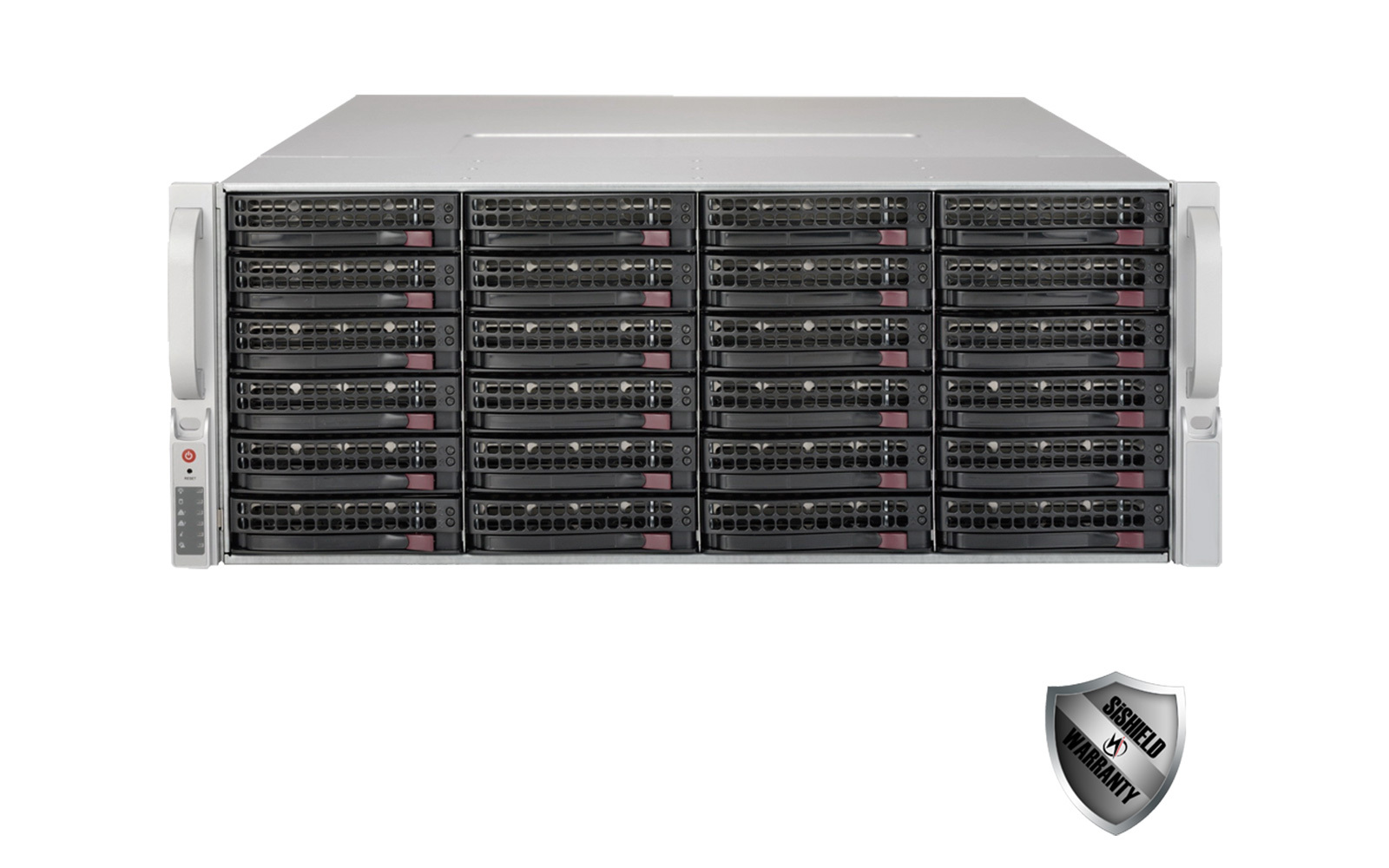

SiStor 4U Hybrid Storage Server

SISTOR 4U HYBRID STORAGE SERVER – starting at $15,980 USD

The SiStor 4U Enterprise Software Storage Server is designed to fill your storage needs. Bring data center performance, reliability, and scalability into your lab.

Data accumulates quickly. Silicon Forensics SiStor 4U has up to 512TB of enterprise SAS drives to meet your demand for more storage space. 24 hot-swap bays in the front and 12 in the back provide excellent storage density. The RAID configuration will increase both speed and stability, making sure you always have quick access to your data.

Want to offload your data at 100x the speed? Silicon Forensics SiStor is designed like cloud storage by using NVMe drives that are 100X faster than HDDs for hot data.

The SiStor is highly scalable by adding drives on the fly or double the capacity by cascading a JBOD.

Reliability is essential when talking about storage servers. Your data is invaluable, which is why the 4U Storage Server comes with 80 Plus Platinum certified redundant power supplies, as well as redundant cooling. Enterprise SAS drives, designed to last longer in heavy read/write environments, working in a RAID configuration provide multiple levels of security against drive failures. This means you can run the SiStor storage server 24/7 without worries of overheating or power failure.

Finally, Silicon Forensics 4U server is backed by a three-year SiShield warranty.

  • Dual Intel Xeon Scalable Processors (up to 40 Cores total)
  • Up to 512 GB DDR4 ECC RAM

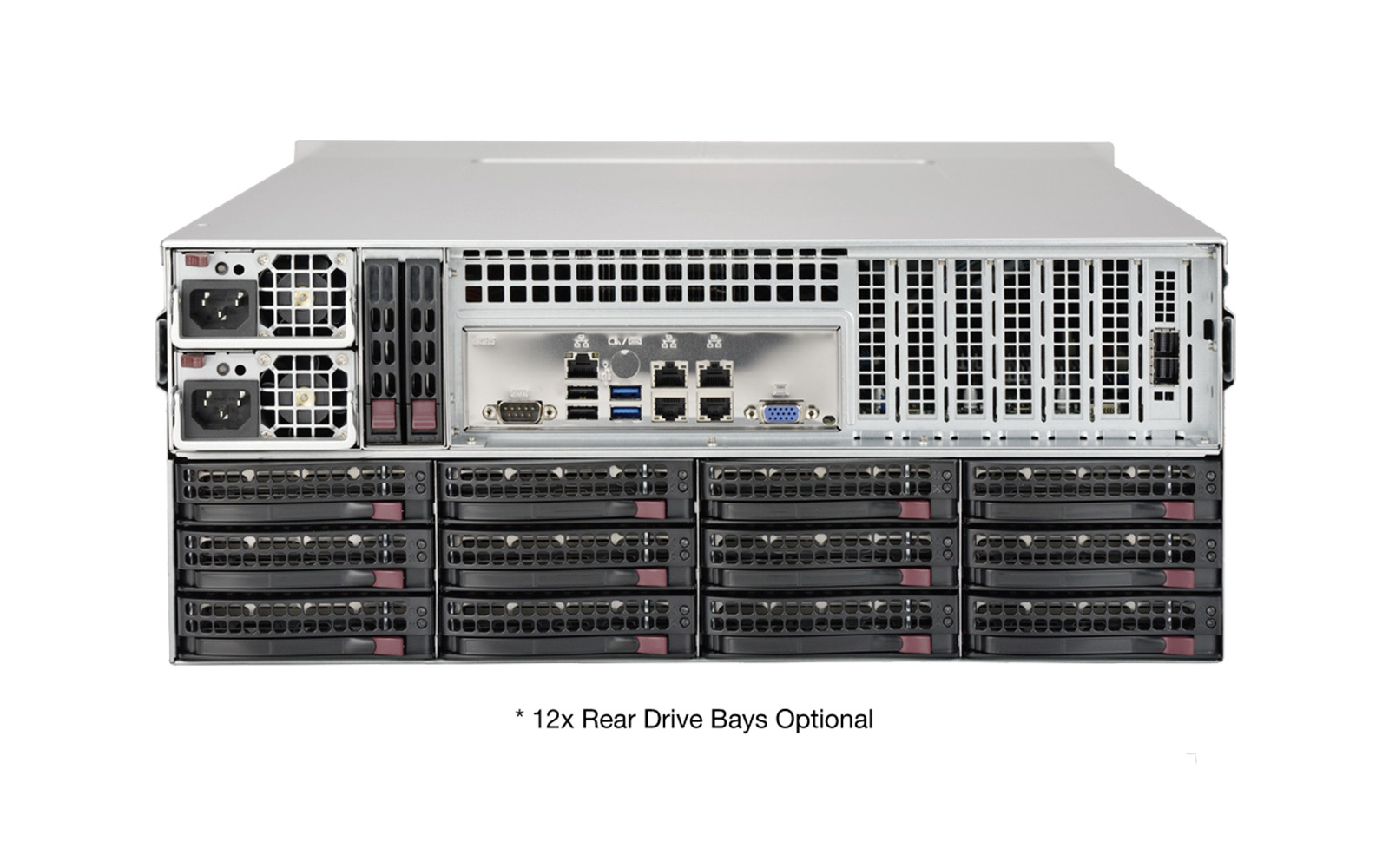

  • 24 x 3.5″ SAS hot-swap bays (36-bay upgrade option available)
  • Tier 1 hot data space of up to 32 TB
  • Tier 2 storage up to 512 TB
  • Expandable to 800+ TB
  • IPMI 2.0
  • 2 x 10G Base-T LAN or 10Gb Fb
  • 80 Plus Platinum redundant power supplies
  • Windows 2016 Server
  • Rackmount Rails
  • 3-year SiShield Warranty, with 5-year warranty upgrade option
  • Any defective data drives do not need to be returned for replacement

Dimensions (L x W x H): (27.5″ x 17.2″ x 7″) or (69.85 cm x 43.69 cm x 17.78 cm)

Contact us for additional expansion capability for 800TB+

PROCESSOR Base option: Dual Intel Xeon Scalable 4208 Silver, 16 cores total
Alternative 1: Dual Intel Xeon Scalable 5218 Gold, 32 cores total (+$2,800.00 USD)
Alternative 2: Dual Intel Xeon Scalable 6230 Gold, 40 cores total (+$4,600.00 USD)
MEMORY Base option: 128GB ECC REG DDR4
Alternative 2: 192GB ECC REG DDR4 (+$600.00 USD)
Alternative 3: 256GB ECC REG DDR4 (+$2,800.00 USD)
Alternative 5: 512GB ECC REG DDR4 (+$6,000.00 USD)
OS DRIVE 2 x 480GB Enterprise SSD (RAID 1 / Mirrored)
TIER 1 PROCESSING STORAGE Base option: 4TB Enterprise NVMe SSD (4 x 1TB)
Alternative 1: 8TB Enterprise NVMe SSD (4 x 2TB) (+$4,000.00 USD)
Alternative 2: 16TB Enterprise NVMe SSD (4 x 4TB) (+$12,000.00 USD)
Alternative 3: 32TB Enterprise NVMe SSD (4 x 8TB) (+$24,000.00 USD)
TIER 2 STORAGE
(PLEASE MATCH WITH DRIVE BAYS)
Base option: 120TB 7200RPM Enterprise SAS (20 x 6TB)
Alternative 1: 200TB 7200RPM Enterprise SAS (20 x 10TB) (+$5,000.00 USD)
Alternative 2: 192TB 7200RPM Enterprise SAS (32 x 6TB) (+$8,000.00 USD)
Alternative 3: 266TB 7200RPM Enterprise SAS (32 x 8TB) (+$11,800.00 USD)
Alternative 4: 320TB 7200RPM Enterprise SAS (32 x 10TB) (+$15,200.00 USD)
Alternative 5: 384TB 7200RPM Enterprise SAS (32 x 12TB) (+$21,000.00 USD)
Alternative 6: 512TB 7200RPM Enterprise SAS (32 x 16TB) (+$30,000.00 USD)
DRIVE BAYS Base option: 24 x 3.5″ Hot Swap Bays
Alternative 1: 36 x 3.5″ Hot Swap Bays (+$2,000.00 USD)
OPERATING SYSTEM Windows Server 2016
DIMENSIONS (L x W x H) Imperial: 27.5″ x 17.2″ x 7″
Metric: 69.85 cm x 43.69 cm x 17.78 cm
WARRANTY Base option: 3-year SiShield Parts & Labour
Alternative 1: 5-Year SiShield Parts & Labour (+$1,500.00 USD)

Note: If requesting a quote for this item, please advise exact item quantity and your full shipping address, as we require this information to estimate shipping costs. Thank you!
