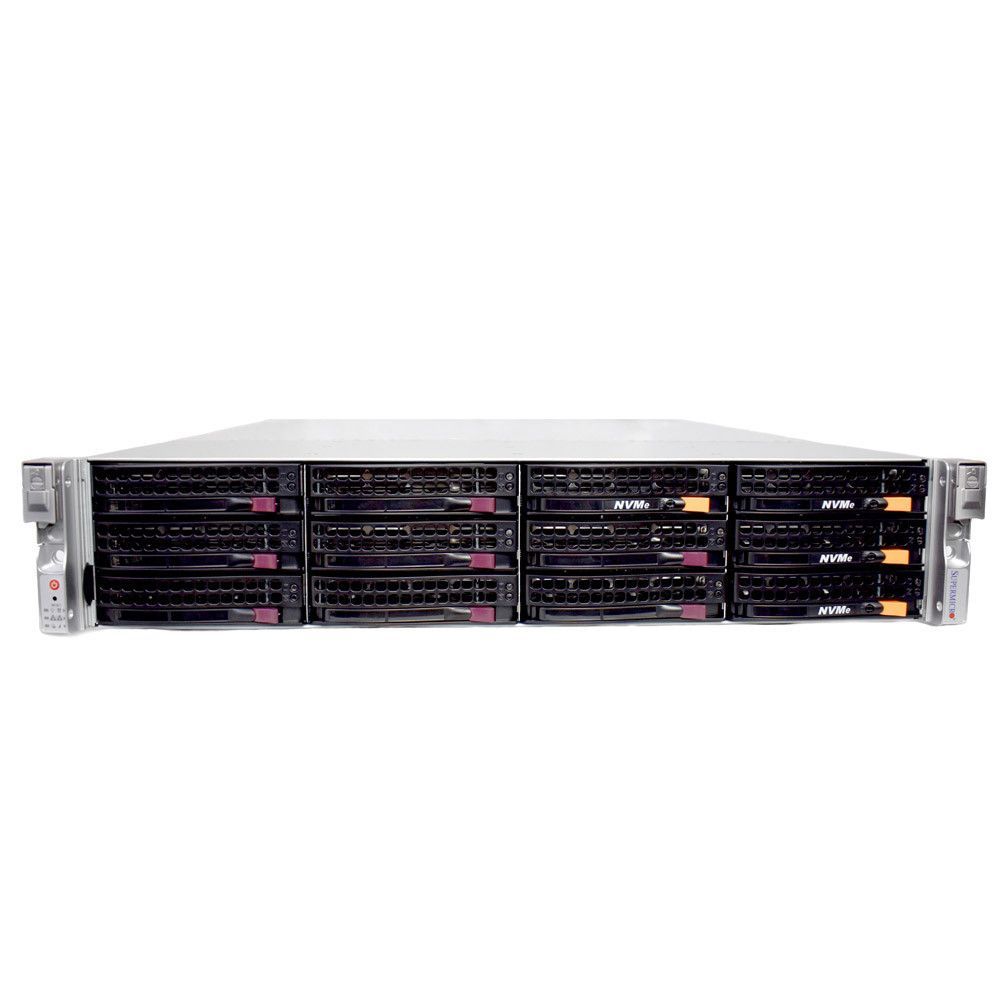

SiStor 2U Hybrid Storage Server


The SiStor 2U Enterprise Software Storage Server is designed to fill your storage needs. Bring data center performance, reliability, and scalability into your lab.

Data accumulates quickly. Silicon Forensics SiStor 2U has up to 192TB of enterprise SAS drives to meet your demand for more storage space.

Want to offload your data at 20x the speed? Silicon Forensics SiStor is designed like cloud storage by using NVMe drives that are 20X faster than HDDs for hot data.

The SiStor is highly scalable by adding drives on the fly or double the capacity by cascading a JBOD.

Reliability is essential when talking about storage servers. Your data is invaluable, which is why the 2U Storage Server comes with Platinum certified redundant power supplies, as well as redundant cooling. Enterprise SAS drives, designed to last longer in heavy read/write environments, working in a RAID configuration provide multiple levels of security against drive failures. This means you can run the SiStor storage server 24/7 without worries of overheating or power failure.

Finally, Silicon Forensics 4U server is backed by a three-year SiShield warranty.

  • Dual Intel Xeon Scalable Processors (up to 40 Cores total)
  • Up to 512 GB DDR4 ECC RAM
  • 12 x 3.5″ SAS hot-swap bays + 4 NVMe bays
  • Tier 1 hot data space of up to 32 TB
  • Tier 2 storage up to 192 TB
  • Expandable to 600+ TB
  • IPMI 2.0
  • 2 x 10G Base-T LAN or 10Gb Fb
  • 80 Plus Platinum redundant power supplies
  • Windows 2016 Server
  • Rackmount Rails
  • 3-year SiShield Warranty, with 5-year warranty upgrade option
  • Any defective data drives do not need to be returned for replacement

Dimensions (L x W x H): (27.5″ x 17.2″ x 3.5″) or (69.85 cm x 43.69 cm x 8.89 cm)

Contact us for additional expansion capability for 800TB+

PROCESSOR Base option: Dual Intel Xeon Scalable 4208 Silver, 16 cores total
Alternative 1: Dual Intel Xeon Scalable 5218 Gold, 32 cores total (+$3,200.00 USD)
Alternative 2: Dual Intel Xeon Scalable 6230 Gold, 40 cores total (+$6,000.00 USD)
MEMORY Base option: 32GB ECC REG DDR4
Alternative 1: 96GB ECC REG DDR4 (+$480.00 USD)
Alternative 2: 128GB ECC REG DDR4 (+$1,200.00 USD)
Alternative 3: 256GB ECC REG DDR4 (+$2,800.00 USD)
Alternative 4: 384GB ECC REG DDR4 (+$4,000.00 USD)
Alternative 5: 512GB ECC REG DDR4 (+$6,000.00 USD)
OS DRIVE Base option: 2 x 480GB Enterprise SSD (RAID 1 / Mirrored)
Alternative 1: 2 x 960GB Enterprise SSD (RAID 1 / Mirrored) (+$400.00 USD)
Alternative 2: 2 x 1.92TB Enterprise SSD (RAID 1 / Mirrored) (+$2,200.00 USD)
TIER 1 PROCESSING STORAGE Base option: 4TB Enterprise NVMe SSD (4 x 1TB)
Alternative 1: 8TB Enterprise NVMe SSD (4 x 2TB) (+$4,000.00 USD)
Alternative 2: 16TB Enterprise NVMe SSD (4 x 4TB) (+$12,000.00 USD)
Alternative 3: 32TB Enterprise NVMe SSD (4 x 8TB) (+$24,000.00 USD)
TIER 2 STORAGE Base option: 72TB 7200RPM Enterprise SAS (12 x 6TB)
Alternative 1: 120TB 7200RPM Enterprise SAS (12 x 10TB) (+$3,600.00 USD)
Alternative 2: 144TB 7200RPM Enterprise SAS (12 x 12TB) (+$5,800.00 USD)
Alternative 3: 192TB 7200RPM Enterprise SAS (12 x 16TB) (+$9,600.00 USD)
OPERATING SYSTEM Windows Server 2016
DIMENSIONS (L x W x H) Imperial: 27.5″ x 17.2″ x 3.5″
Metric: 69.85 cm x 43.69 cm x 8.89 cm
WARRANTY Base option: 3-year SiShield Parts & Labour
Alternative 1: 5-Year SiShield Parts & Labour (+$1,200.00 USD)

Note: If requesting a quote for this item, please advise exact item quantity and your full shipping address, as we require this information to estimate shipping costs. Thank you!

Request a Quote
