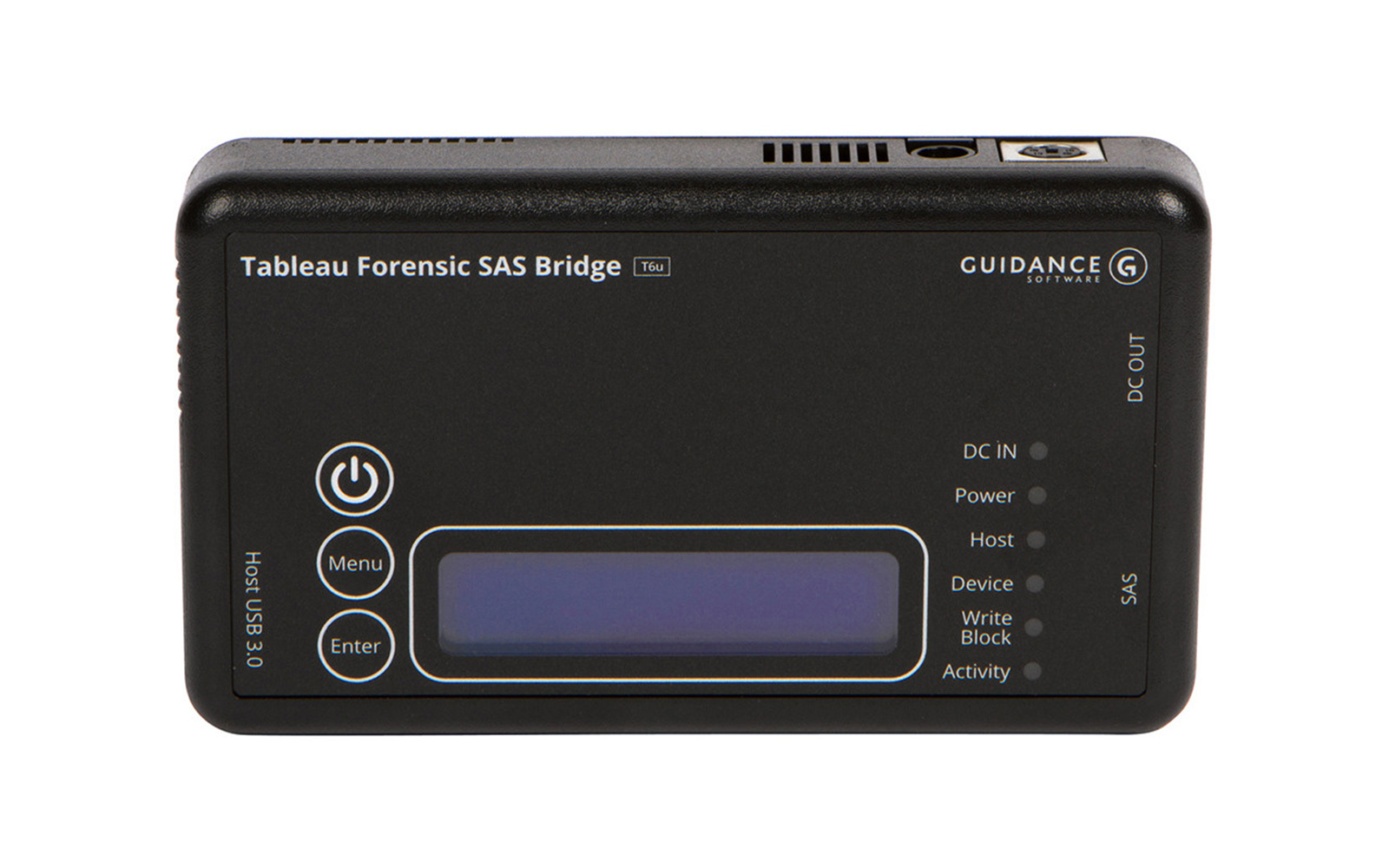

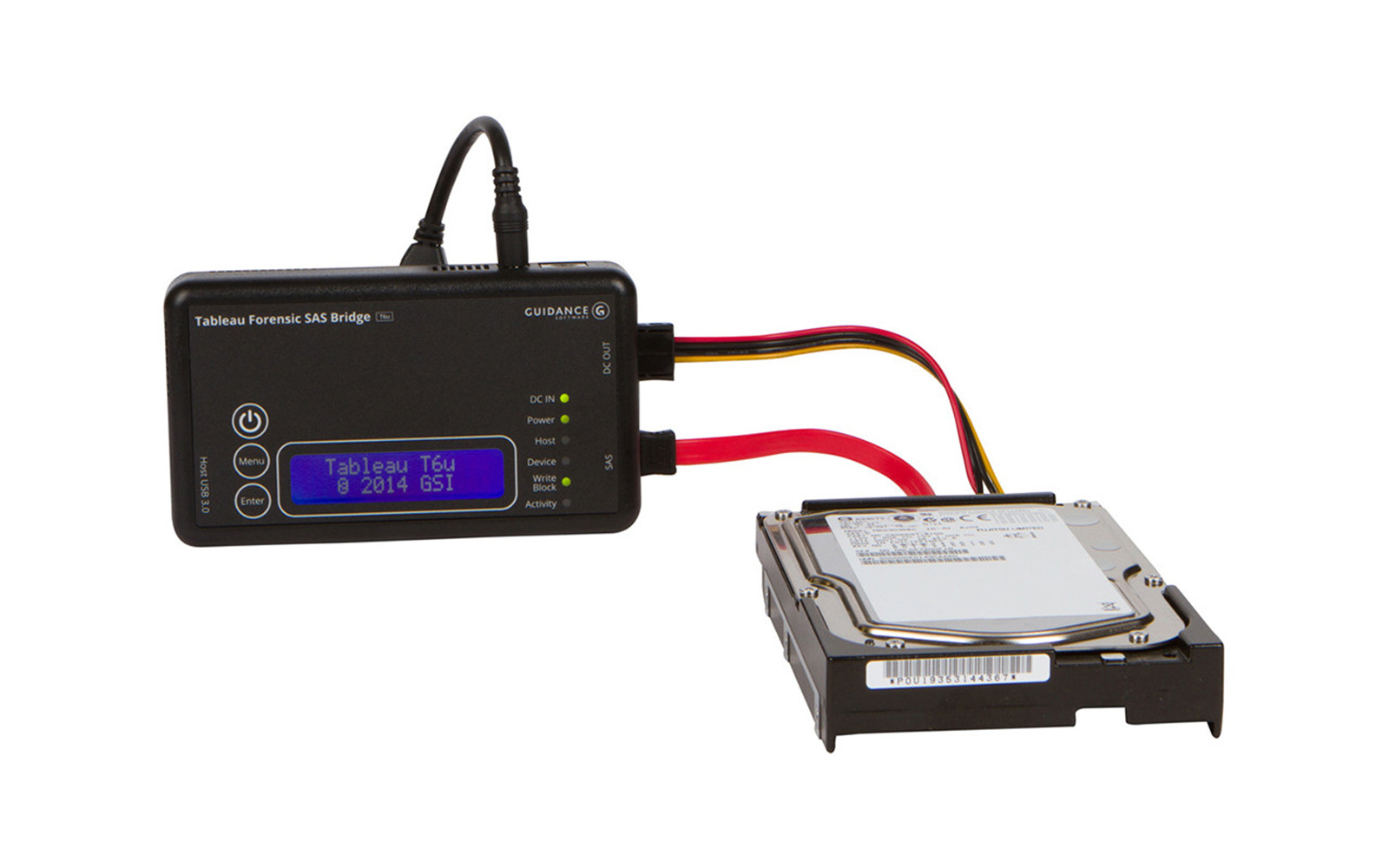

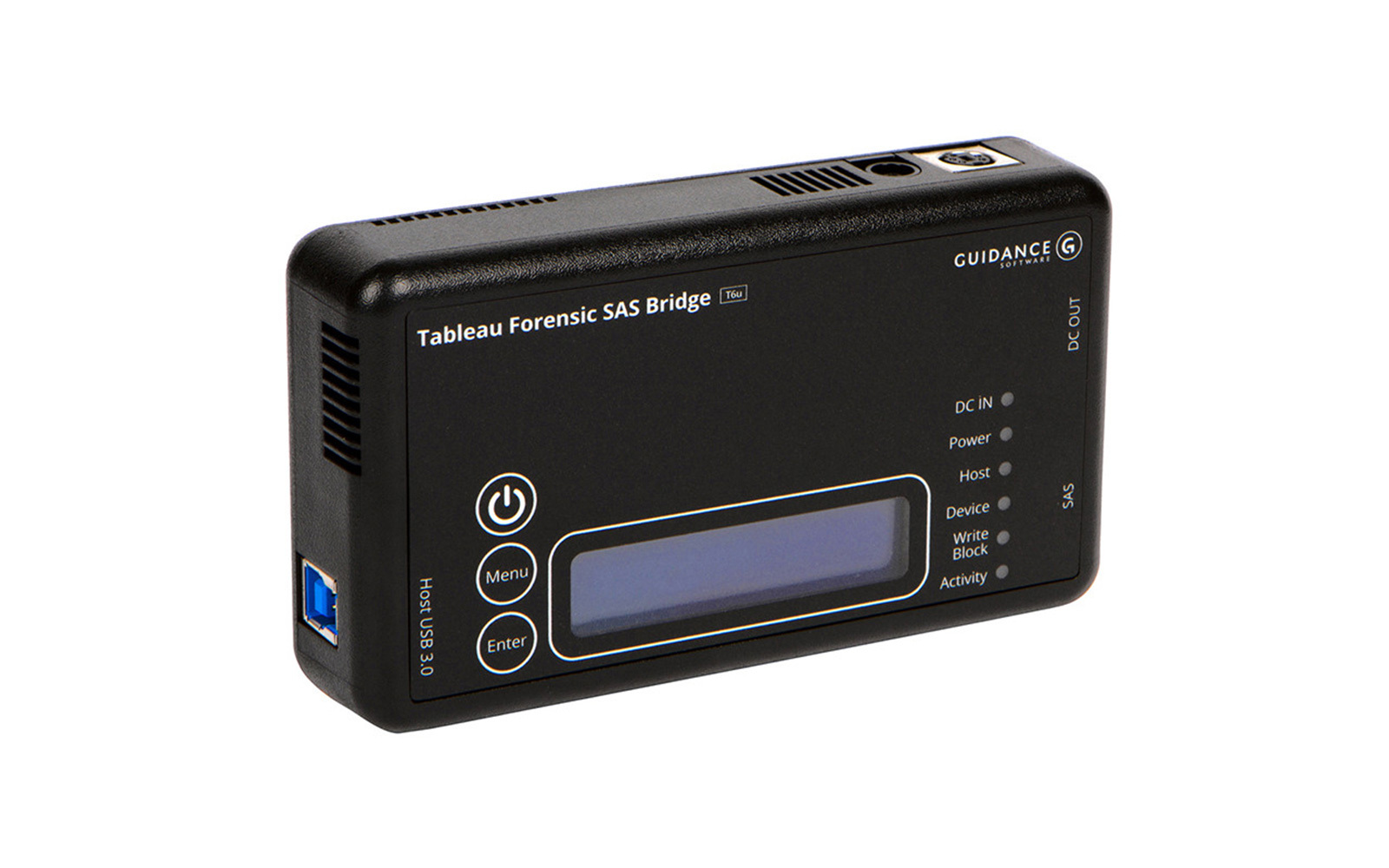

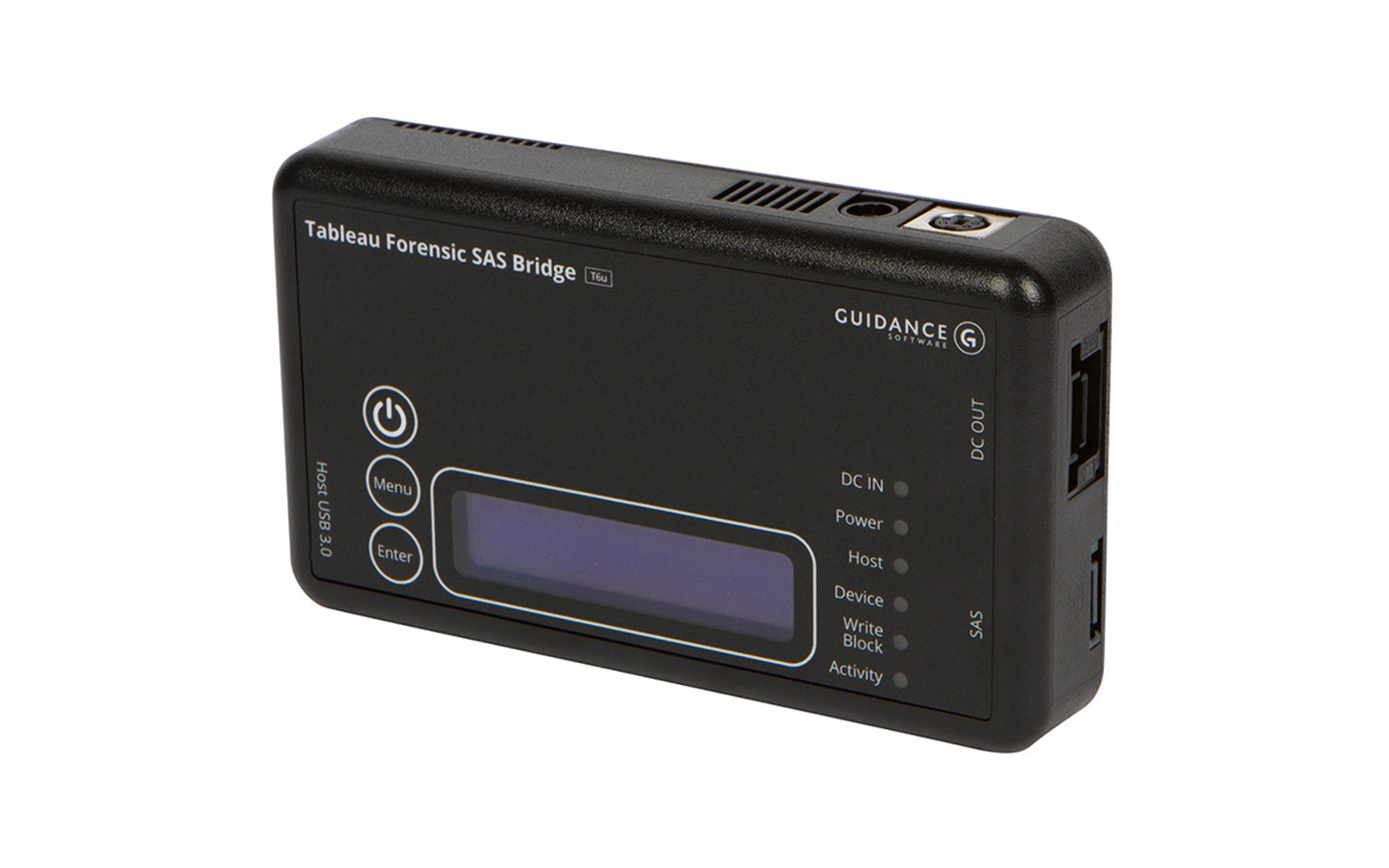

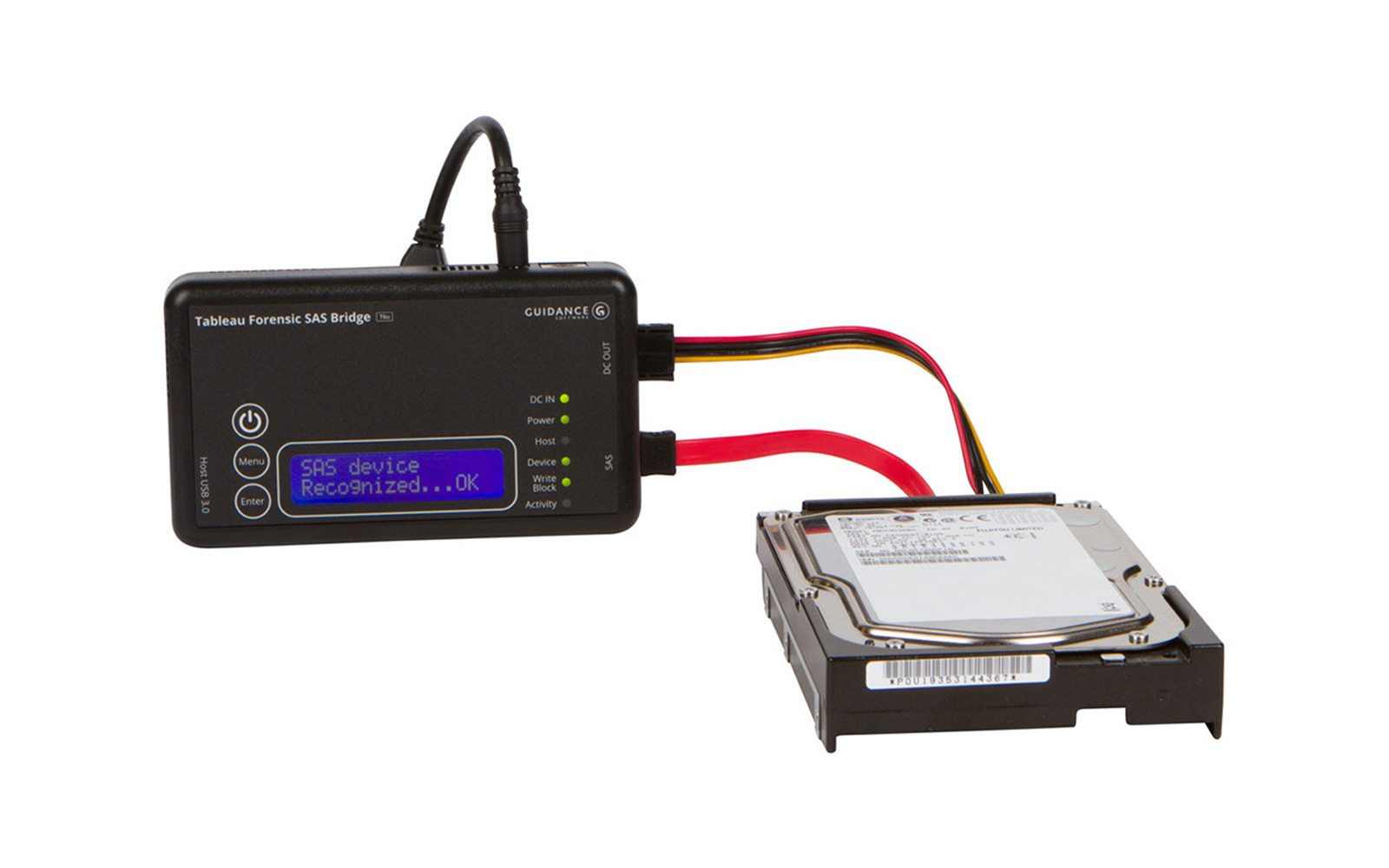

The Tableau Forensic SAS Bridge (T6u) is a portable write-blocker that enables forensic acquisition of SAS hard drives.
Note: The T6u does not come with any accessories (cables) or power supply when purchased as a stand-alone item, and therefore you will need your own cables and power supply to use the device. For this reason, we also offer a kit version of the T6u that does include the corresponding power supply and cables. See below for kit content details.
We also offer the T6u, other Tableau write-blocking devices, plus all related cables and accessories in our premium write-blocking kit for a more comprehensive option: EFS Premium Tableau Write Blocking Kit.
Features
- Suitable for both the field and lab
- Imaging speeds up to 200 MB/second
- USB 3.0 host computer connection
- User-switchable read-write mode via internal DIP switch supports wiping and formatting of SAS devices without the need of an expensive SAS controller card
- Integrated, backlit LCD presents useful bridge and SAS device information.
- Six LEDs provide status on power, host connection, SAS device detection, write-block status, and activity
- Free Tableau firmware updates
TK6u Kit contents:
- Tableau Forensic SAS Bridge [T6u]
- Tableau Power Supply [TP7]
- Tableau Unified SATA/SAS Signal and Power Cable (3M-style) – 8″ [TC4-8-R2]
- USB 3.0 A-to-B Cable – 6′ [019914]
- USB-A (female) to USB-C (male) 3.0 Adapter [019927]
- Rugged Write-Blocker Case, with Foam [008098]
- T6u Quick Reference Guide

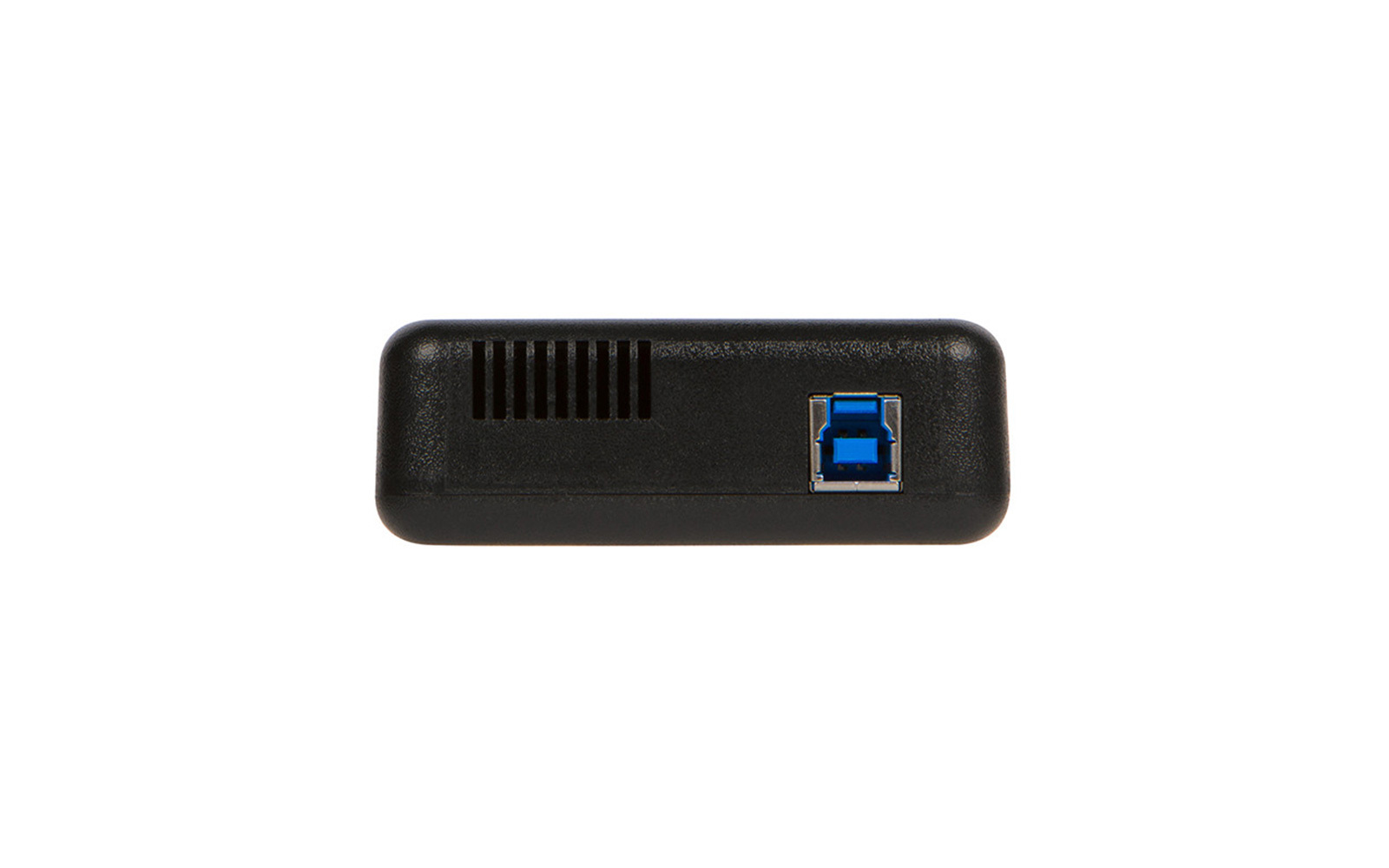

| Host side connector | One USB 3.0 Standard-B connector |

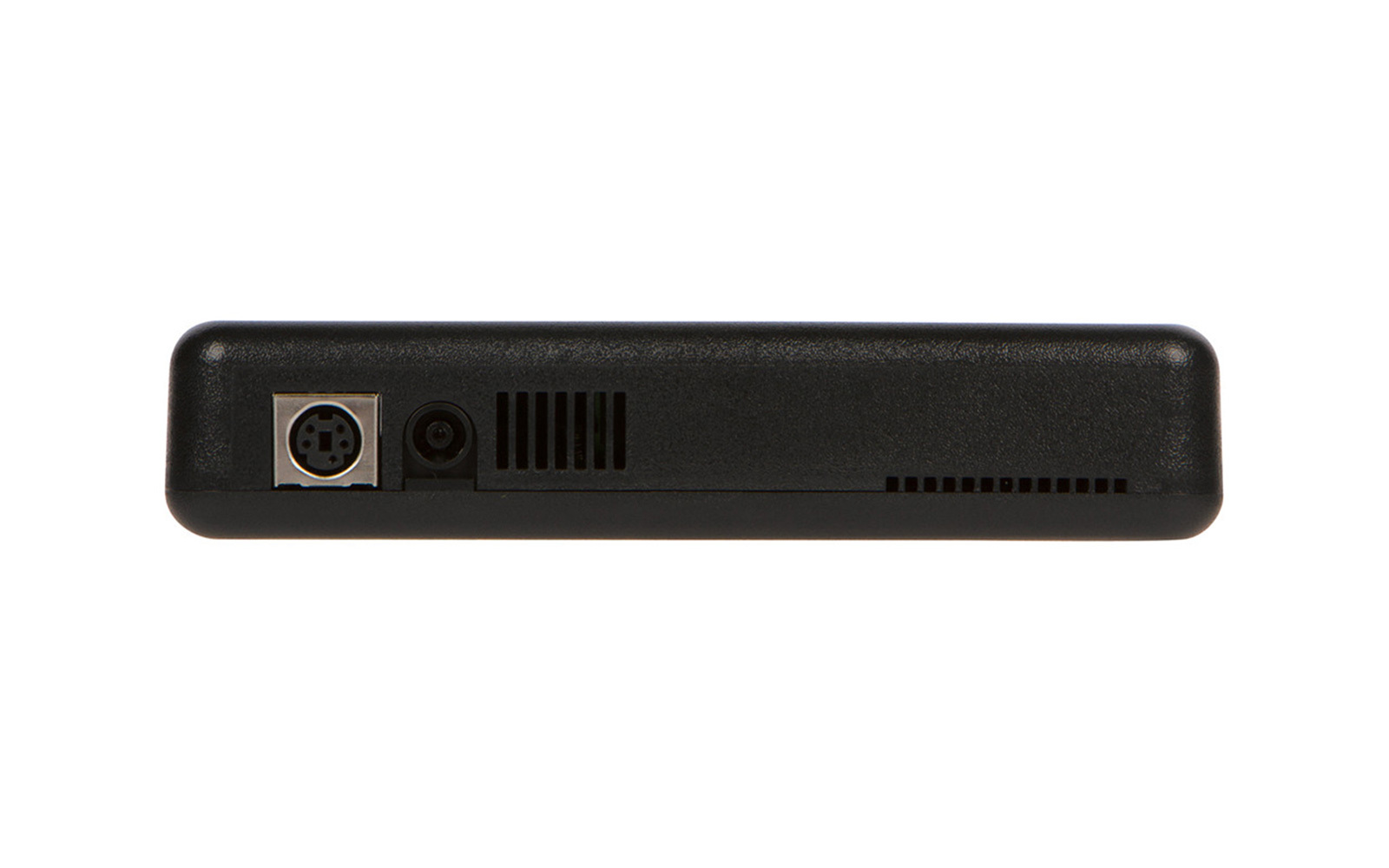

| Top Side Connector | DC Input: One 5-pin mini-DIN connector for use with the Tableau TP2 power supply, and one bayonet connector for use with the Tableau TP5 and TP7 power supplies |

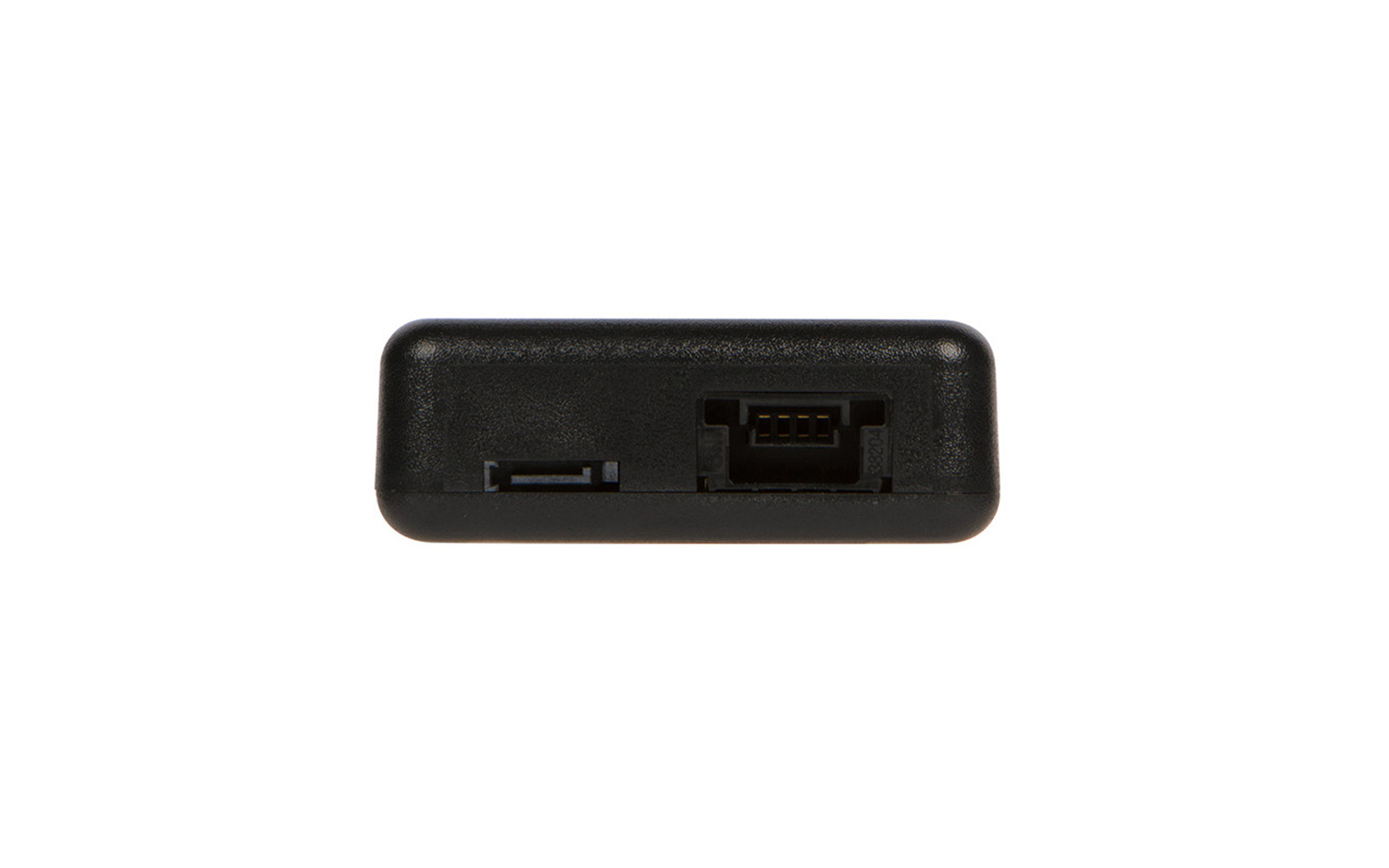

| Device side connector | One SAS signal connector |
| DC out: 4-pin 3M drive power connector (power to SAS hard disk) | |
| DIP Switch | The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T6u Quick Reference Guide for more information |
| LCD | 2 Row x 16 Column monochrome LCD character display with LED backlight |
| Buttons | Three buttons: “Menu” and “Enter” buttons for navigation, plus an “On/Off” button to control the power |
| Status LEDs | Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity |
| Device Compatibility | SAS hard drive devices |
| Host OS Compatibility |
Microsoft Windows version 7, 8, 10 Macintosh OS X Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0) |
| Warranty | One year parts and workmanship from date of purchase |
