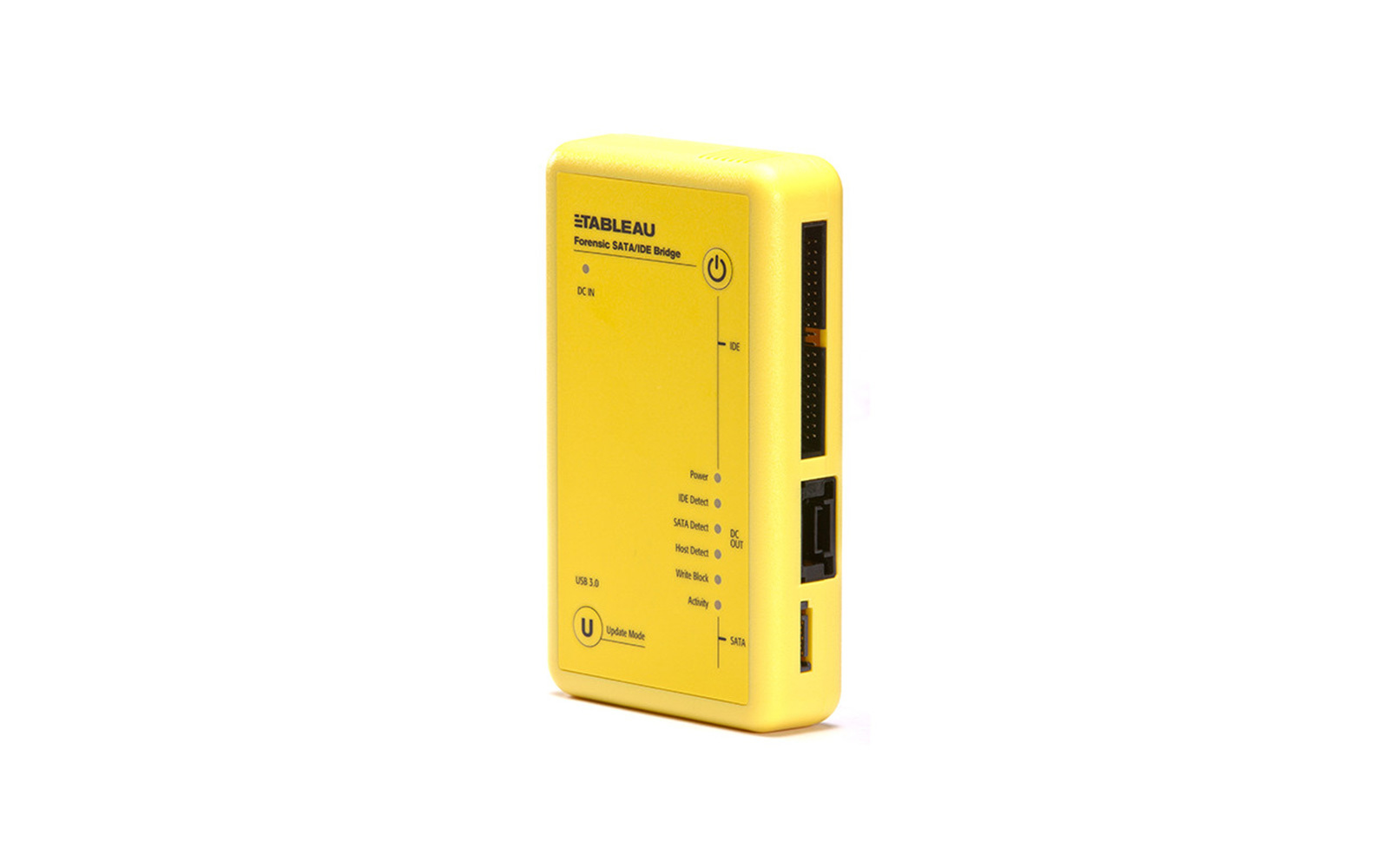

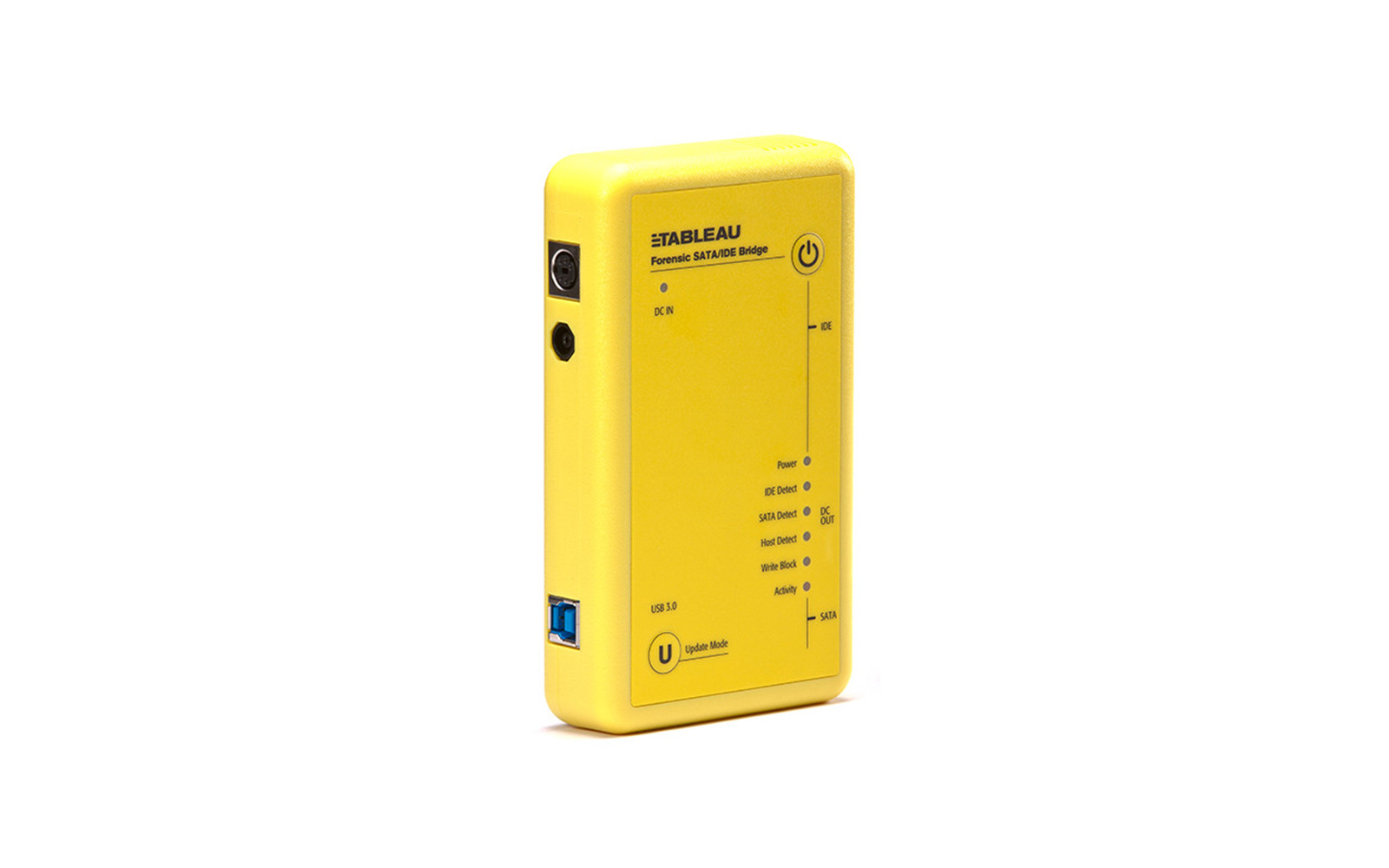

The SATA/IDE Read-Write Bridge (T35u-RW) is yellow in colour and is pre-configured for a read-write operation of SATA and IDE drives. There is another version of the T35u-RW, the T35u, which is pre-configured for a read-only operation of SATA and IDE drives and comes in a black colour.
Note: The T35u-RW does not come with any accessories (cables) or power supply when purchased as a stand-alone item, and therefore you will need your own cables and power supply to use the device. For this reason, we also offer a kit version of the T35u-RW that does include a corresponding power supply and all cables. See below for kit content details.
We also offer the T35u-RW, other Tableau write-blocking devices, plus all related cables and accessories in our premium write-blocking kit for a more comprehensive option: EFS Premium Tableau Write Blocking Kit.
Features
- Suitable for both the field and lab, where read-write functionality is appropriate
- USB 3.0 host computer connection

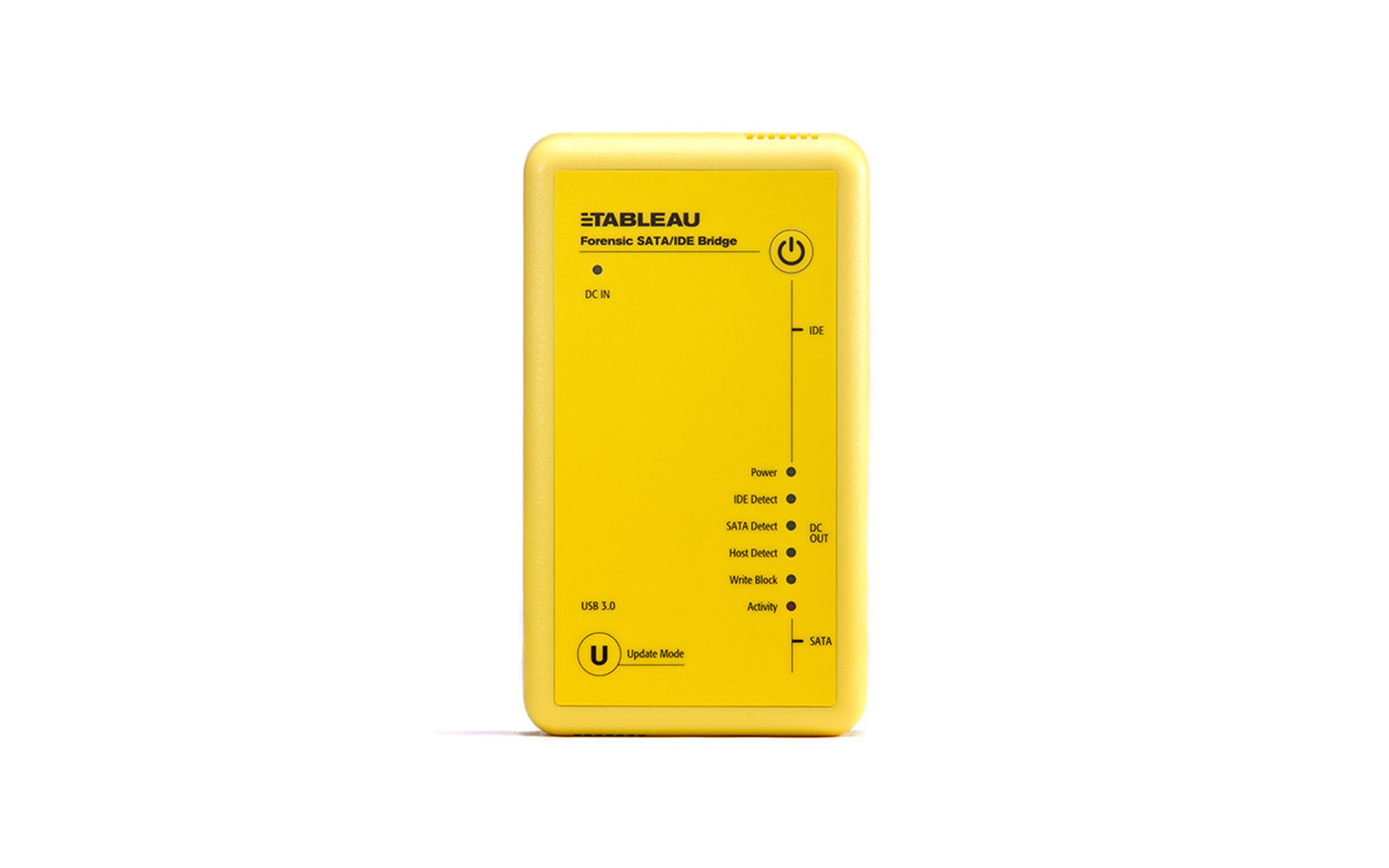

- Seven LEDs provide status on power, IDE media detection, SATA media detection, host connection, write-block status, and activity
T35u-RW Kit Content
- Tableau Forensic SATA/IDE Read-Write Bridge [T35u-RW]
- Tableau Power Supply [TP7]
- Tableau Molex to 3M Drive Power Cable – 8″ [TC2-8-R2]
- Tableau SATA Signal Cable – 8″ [TC3-8]
- Tableau SATA to 3M Drive Power Cable – 8″ [TC5-8-R2]
- Tableau IDE Cable – 8″ [TC6-8]
- USB 3.0 A-to-B Cable – 6′ [019914]
- USB-A (female) to USB-C (male) 3.0 Adapter [019927]
- Rugged Write-Blocker Case, with Foam [008098]
- T35u-RW Quick Reference Guide

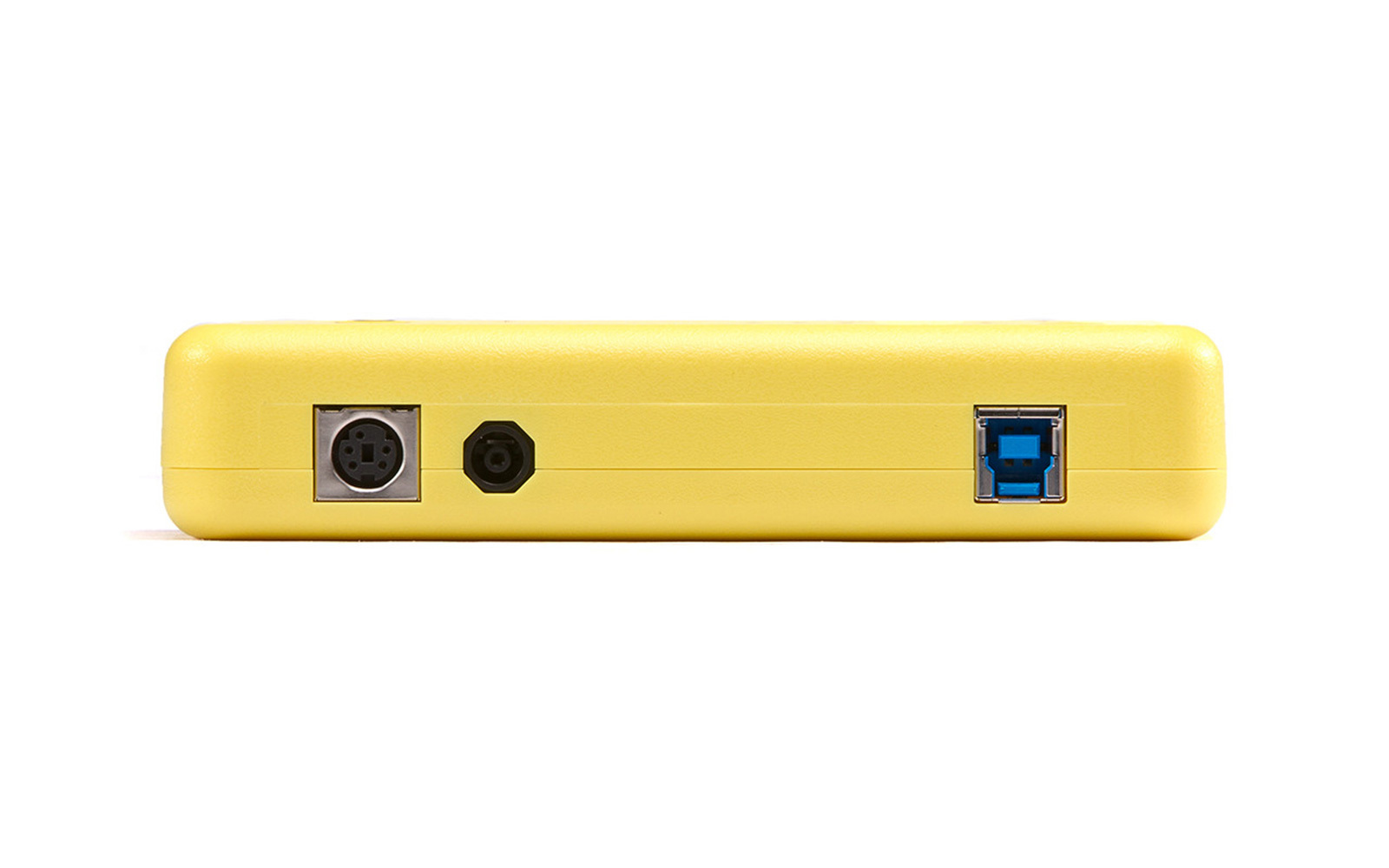

| Connectors: Host (Left) Side | One USB 3.0 Standard-B connector
DC Input: One 5-pin mini-DIN connector for use with the Tableau TP2 power supply, and one bayonet connector for use with the Tableau TP5 and TP7 power supplies |

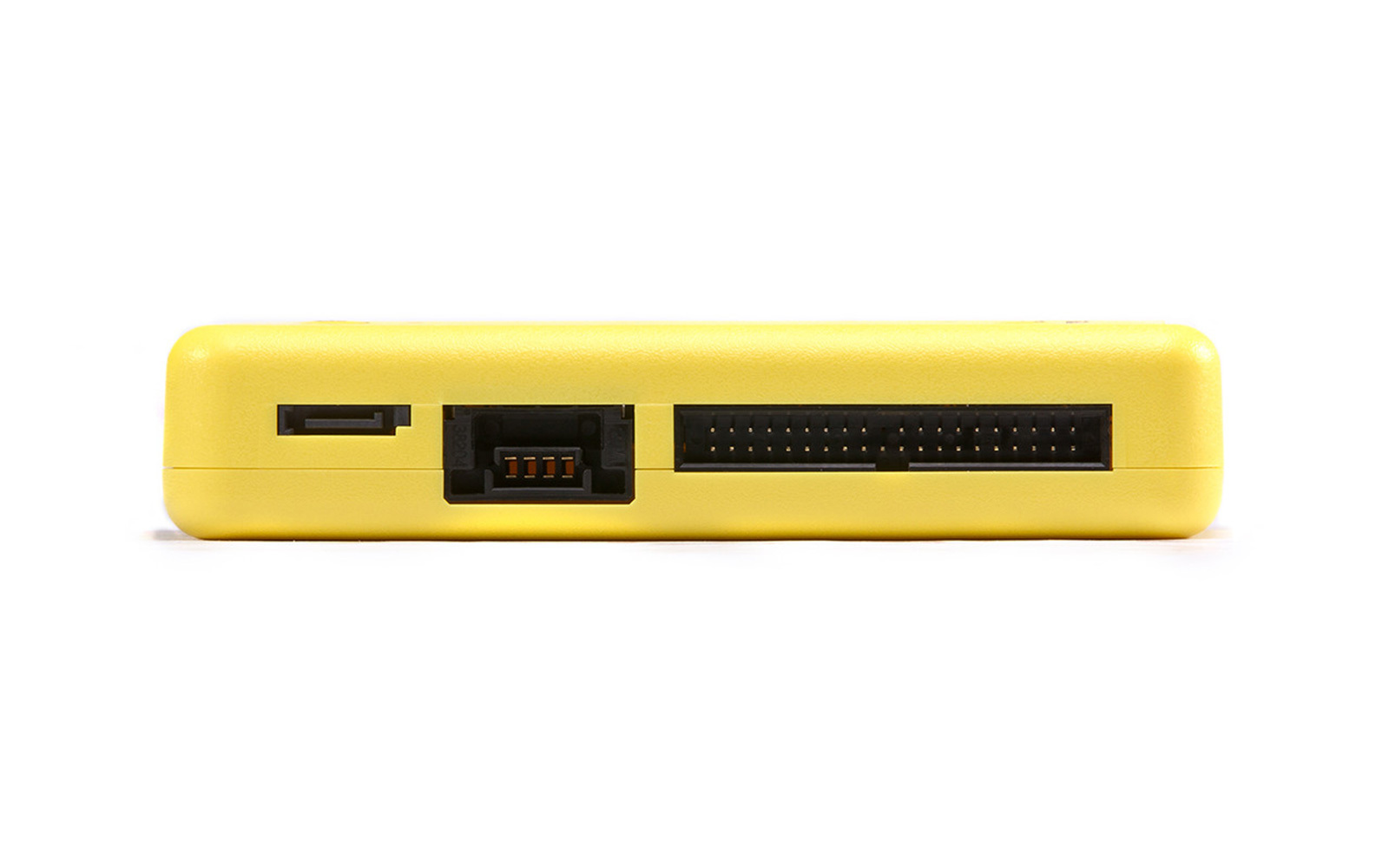

| Connectors: Device (Right) Side |
SATA: SATA signal connector IDE: IDE signal connector DC Out: 4-pin 3M drive power connector (power to SATA or IDE hard disk) |
| DIP Switch | The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T35u/T35u-RW Quick Reference Guide for more information |
| Other Features | Factory Configuration: -Yellow-case units are pre-configured as read-write (T35u-RW) -Black-case units are pre-configured as read-only (T35u)Seven Status LEDs: DC IN, Power, IDE Detect, SATA Detect, Host Detect, Write Block, Activity |
| Compatibility |
Host OS Compatibility: Host Interface: USB 3.0 (backward compatible with USB high/full/low speed) IDE Device: Parallel ATA hard disk devices with Logical Block Addressing (LBA) support SATA Device: SATA hard disk devices |
| Physical / Environmental | Dimensions (L x W x H): -5.625 in x 3.25 in x 1.125 in -14.288 cm x 8.255 cm x 2.858 cmWeight: 5.9 oz (168 g)Operating Temperature Range: 0 to 55 degrees C (no airflow)Output Voltage (DC OUT): +5VDC @ 1A, + 12VDC @ 1A Power: 5-6 watts typical operating (not including hard disk) Relative Humidity: Up to 90% (non-condensing) Storage Temperature Range: -40 to 70 degrees C Supply Voltage (DC IN): +5VDC @ 2A, +12VDC @ 2A (includes budget for hard disk) |
| Warranty | One year parts and workmanship from date of purchase |
