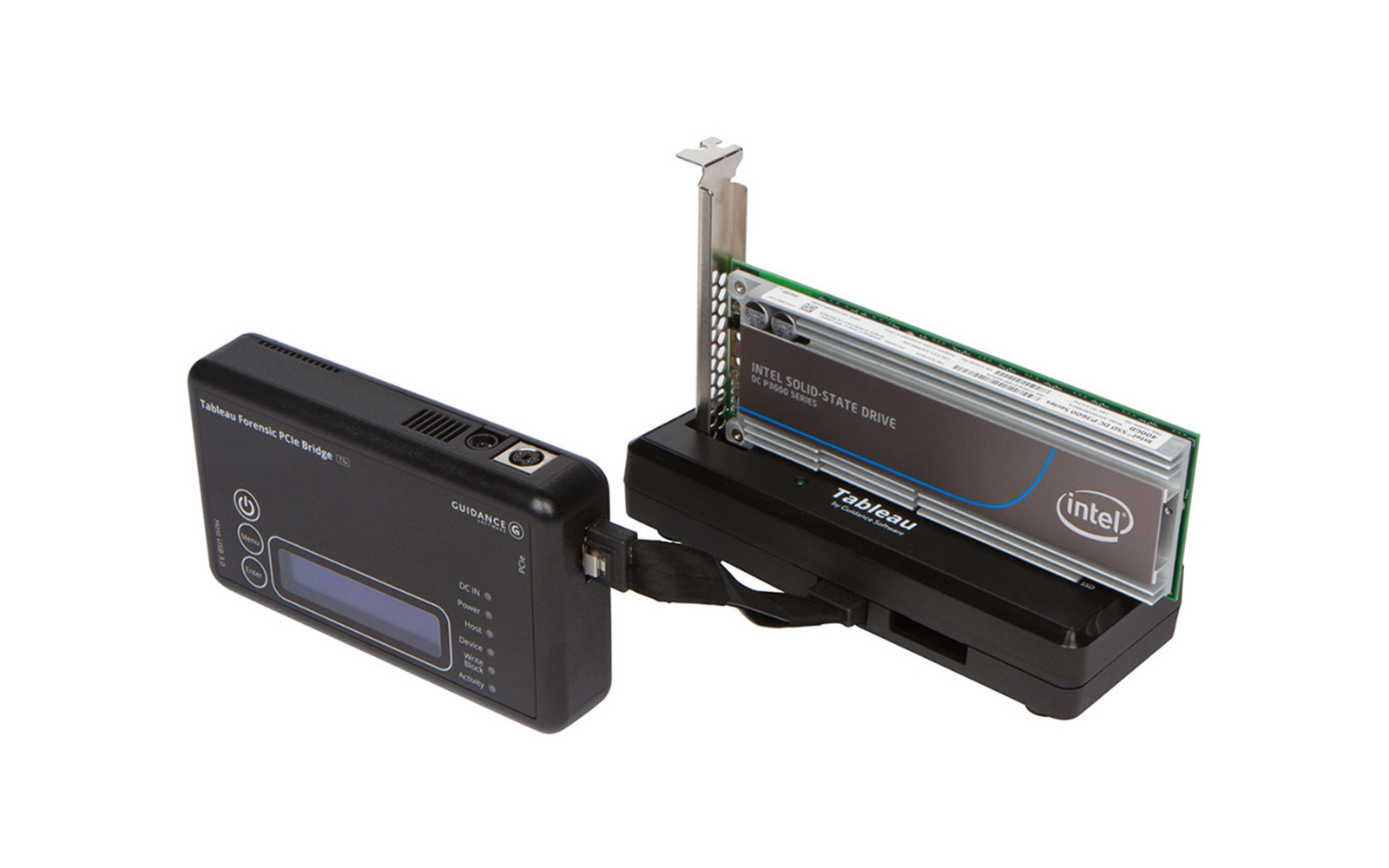

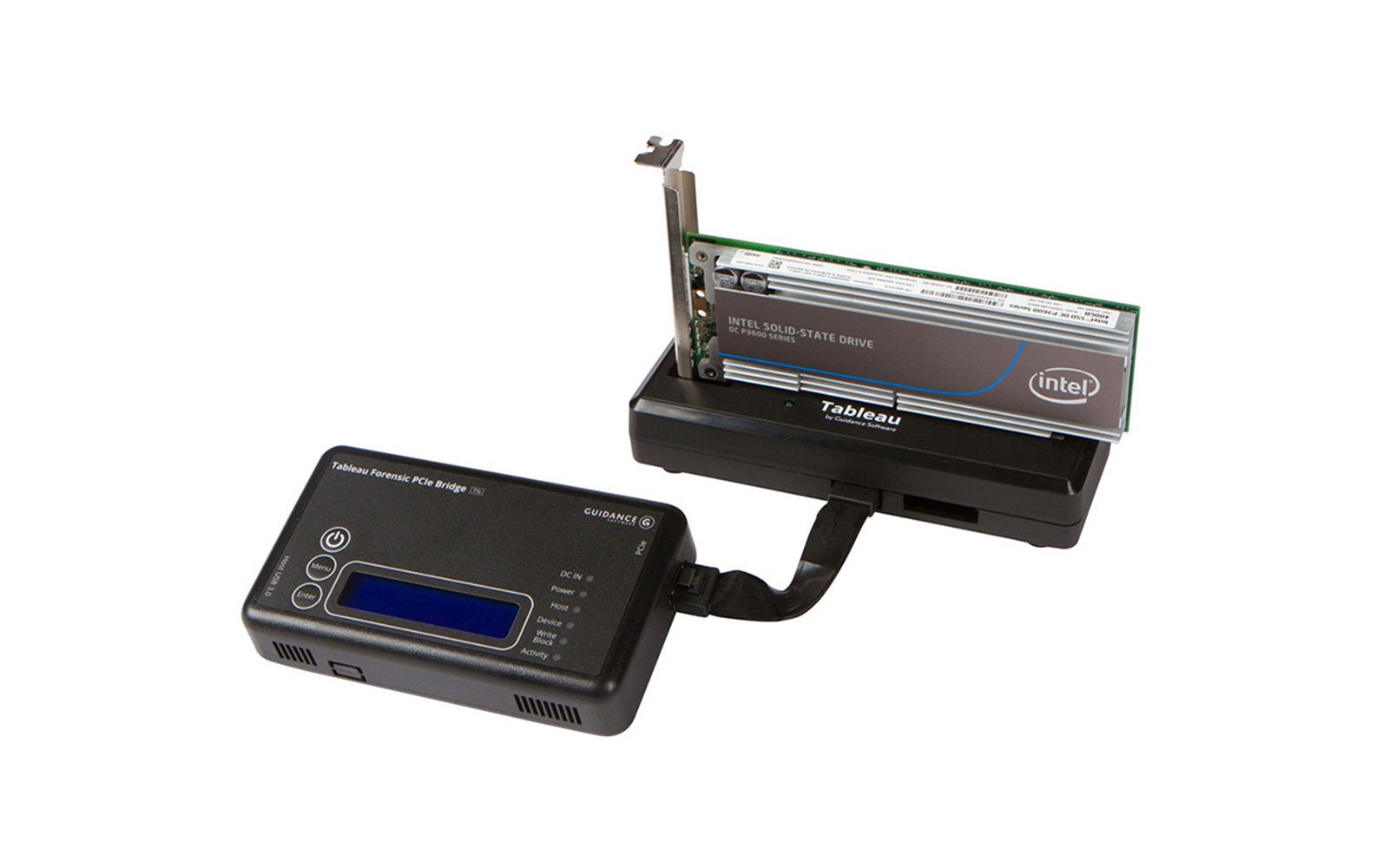

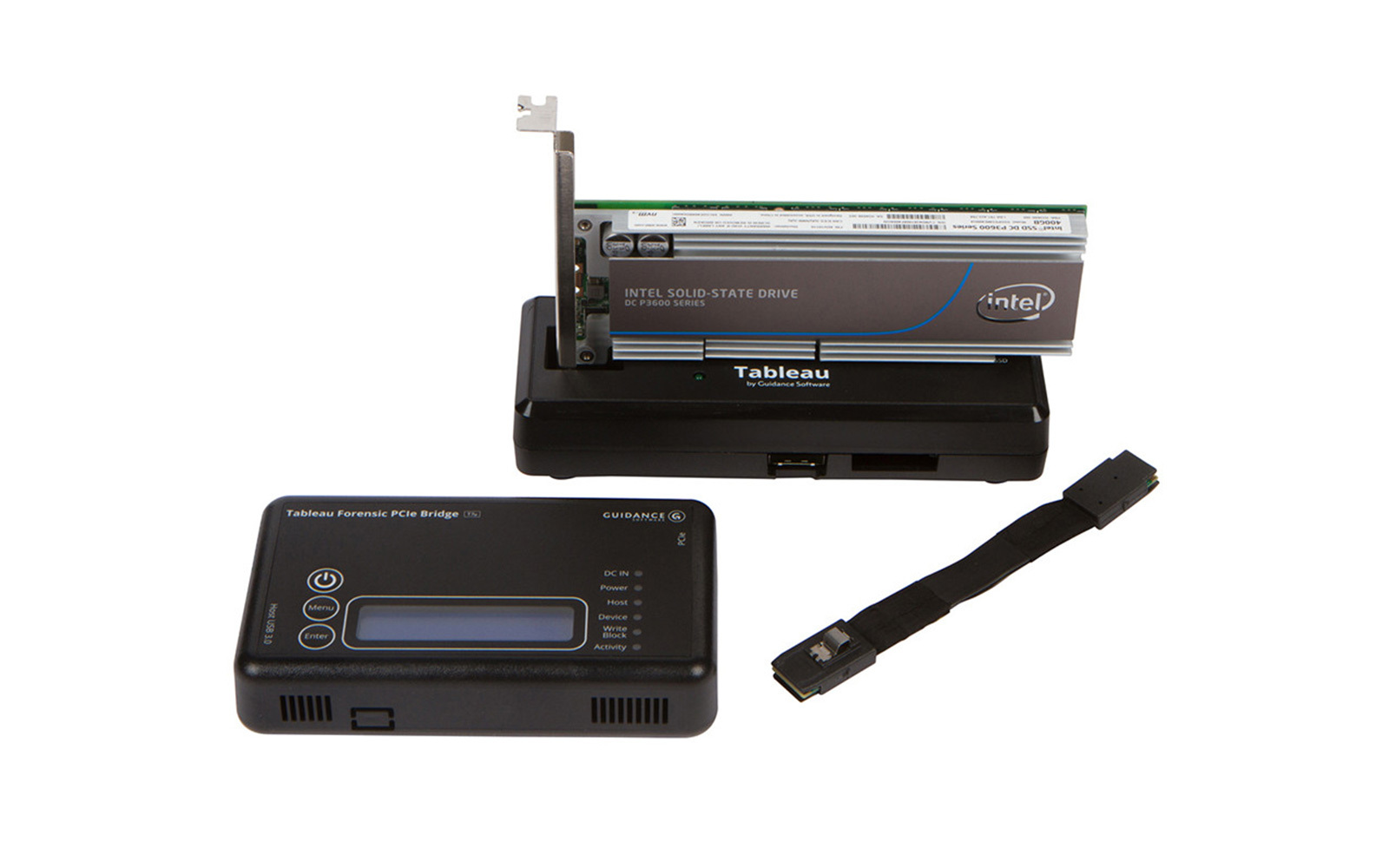

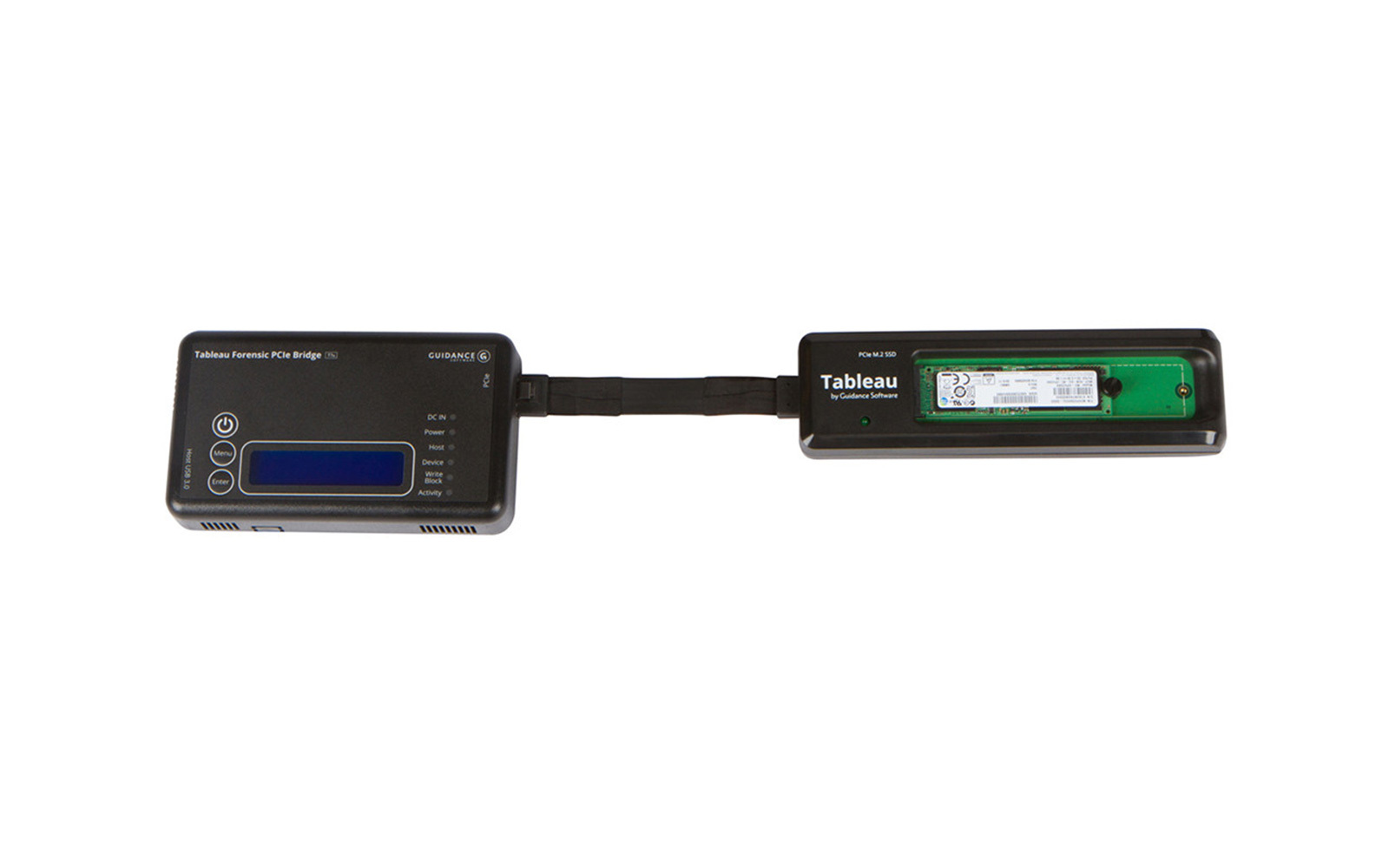

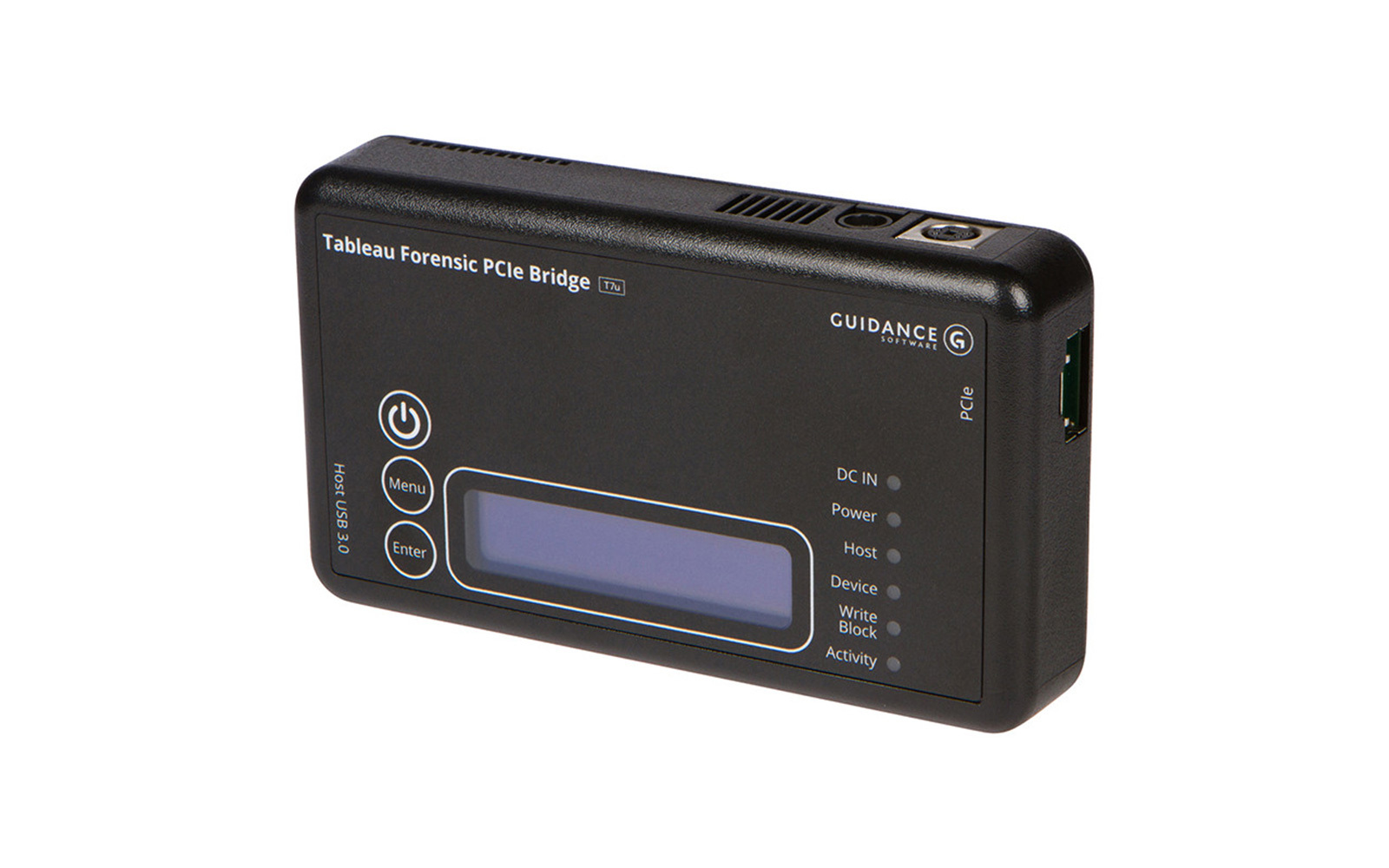

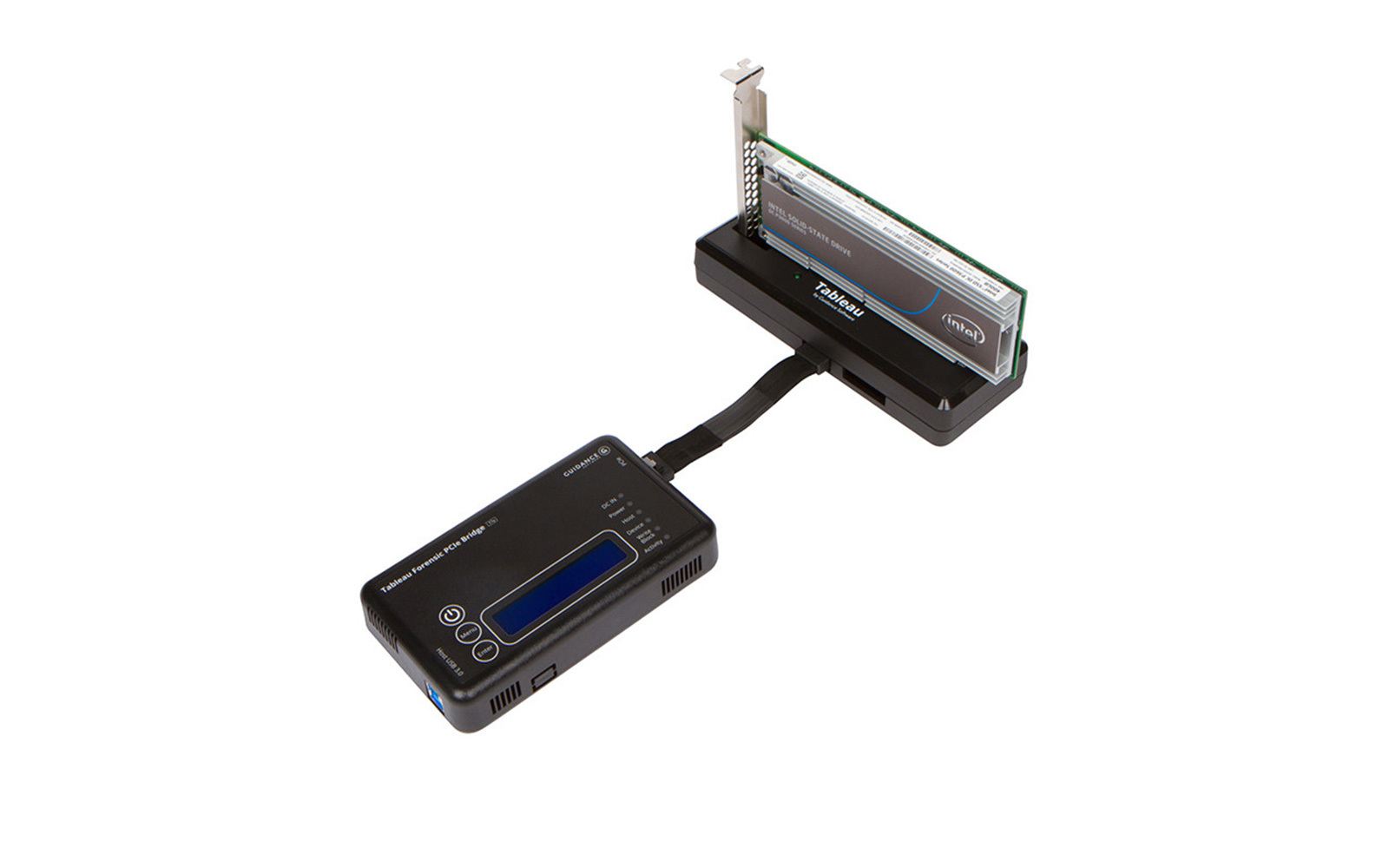

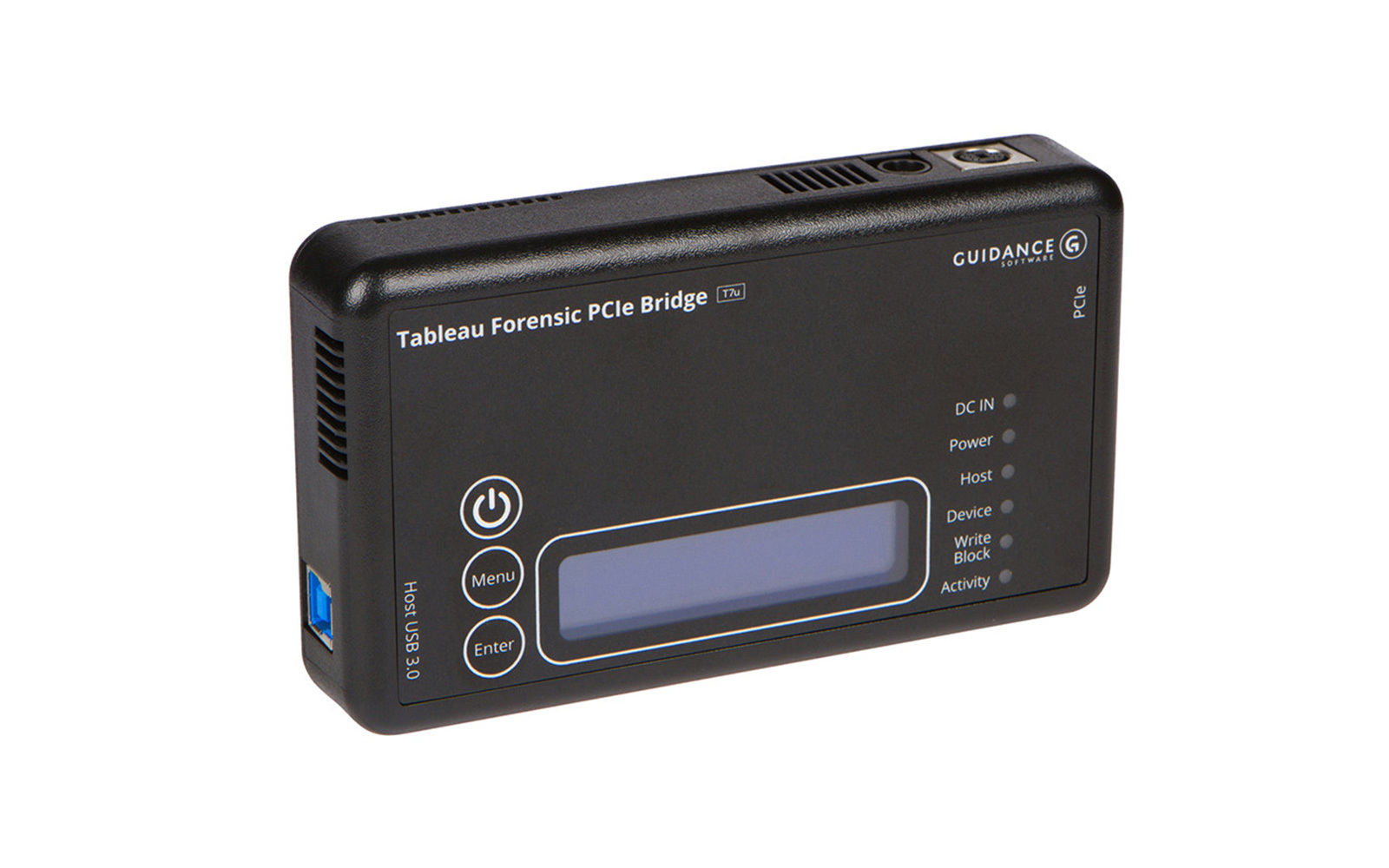

The Tableau Forensic PCIe Bridge (T7u) is the first-ever portable write-blocker that enables forensic acquisition of PCIe solid-state-drives when used with a Tableau PCIe Adapter.
Note: The T7u does not come with any accessories (cables), power supply, or PCIe adapters when purchased as a stand-alone item, and therefore you will need your own power supply, cables and PCIe adapters to use the device. For this reason, the T7u is also offered in several “kit” forms that include a variation of power supply, cables, and PCIe adapters. Different kit details are shown below.
Features
- Suitable for both the field and lab
- Imaging speeds up to 330 MB/second
- USB 3.0 host computer connection
- Integrated, backlit LCD presents useful bridge and PCIe device information
- Six LEDs provide status on power, host connection, PCIe media detection, write-block status, and activity
- Read/write mode capability via internal DIP switch
- Free Tableau firmware updates
TK7u Kit content (T7u + power supply + cables. PCIe adapters not included):
- Tableau Forensic PCIe Bridge [T7u]
- Tableau Power Supply [TP7]
- Tableau PCIe Adapter Cable – 8″ [TC-PCIE-8]
- USB 3.0 A-to-B Cable, 6 ft [019914]
- USB-A (female) to USB-C (male) 3.0 Adapter [019927]
- Rugged Case with Foam [008098]
- T7u Quick Reference Guide

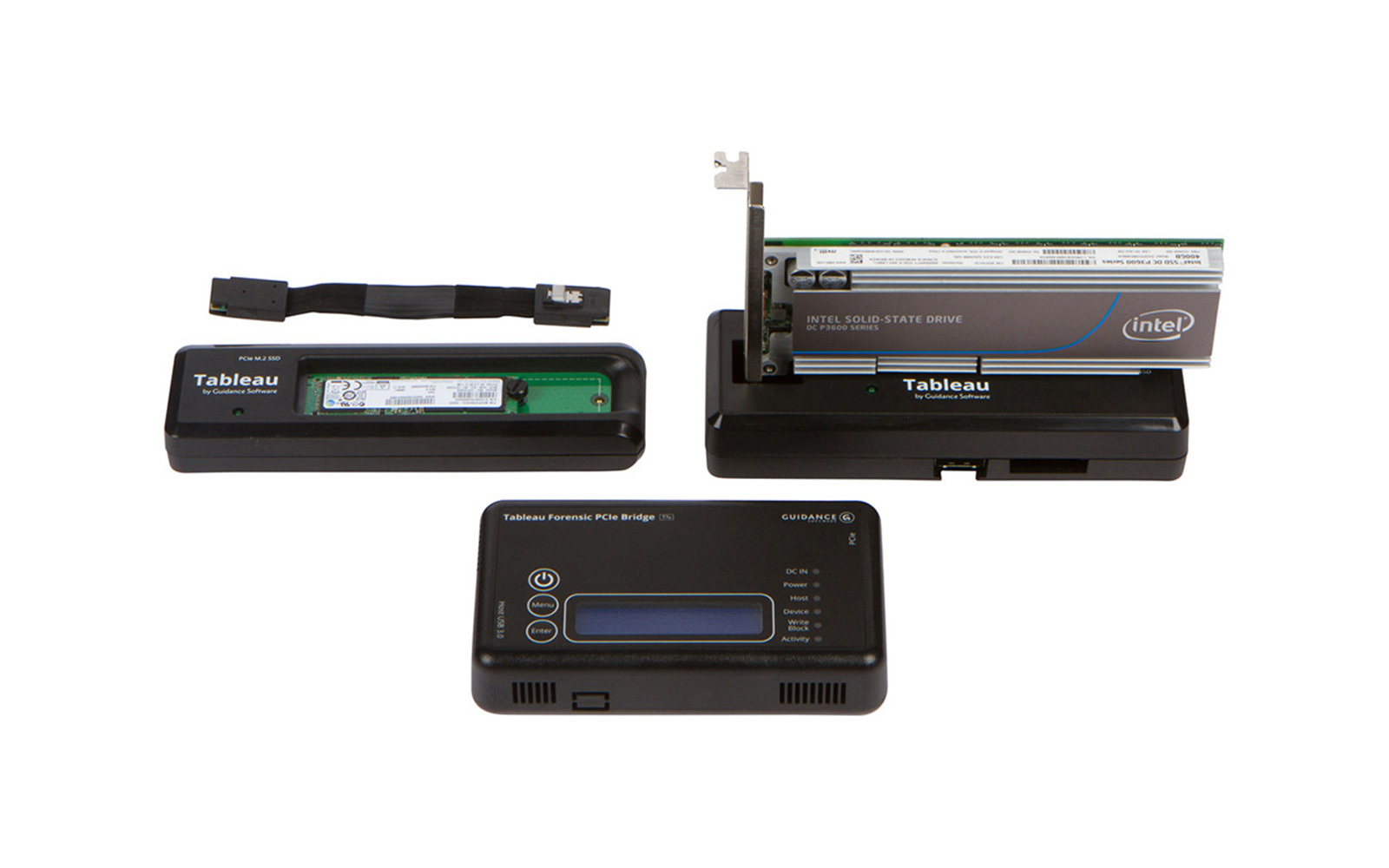

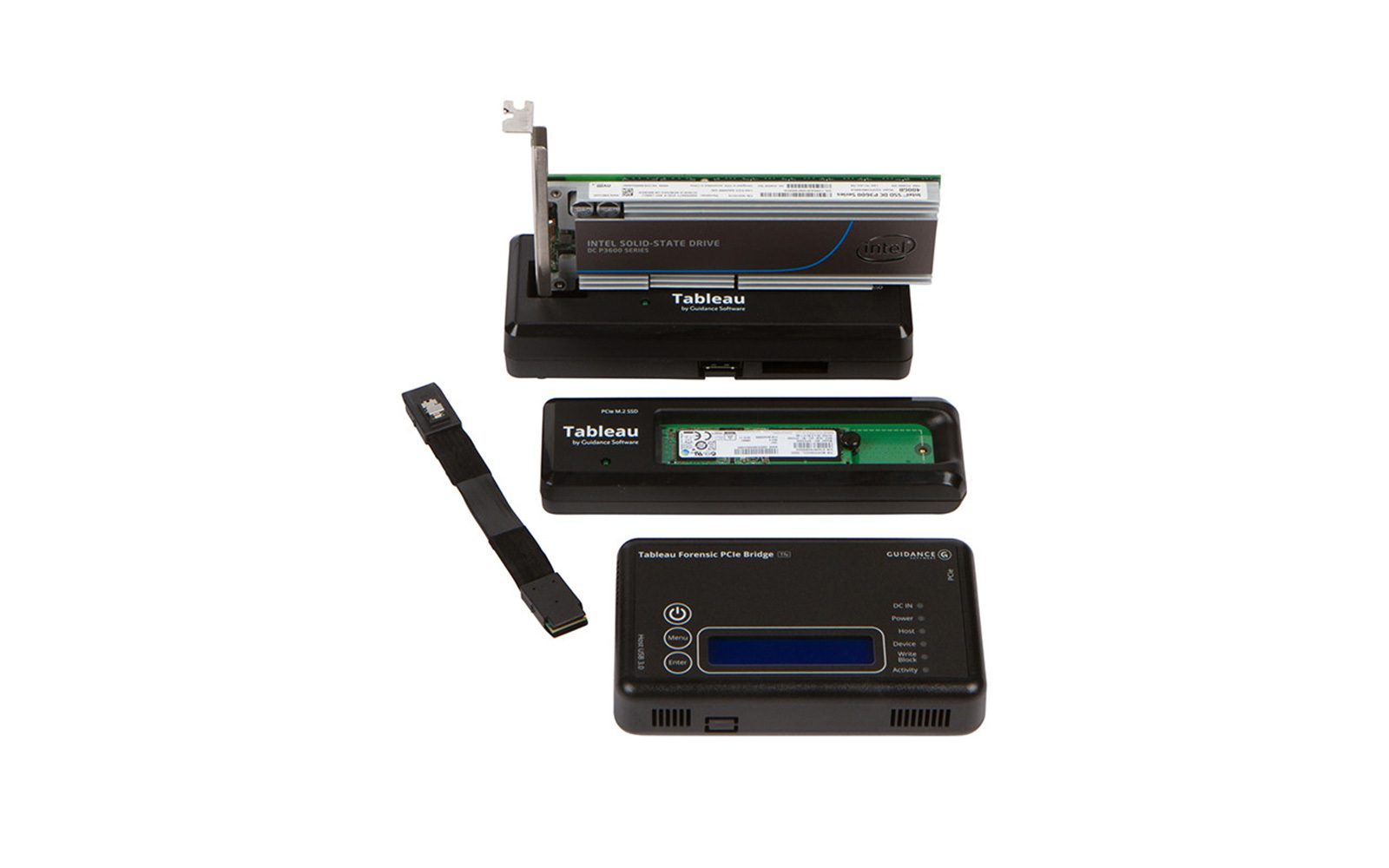

TK7U-BNDLC (T7u kit [T7u + power supply + cables] + PCIe adapters):
NOTE: The TK7U-BNDLC replaces the older TK7U-BNDLB.
- Tableau Forensic PCIe Bridge [T7u]
- Tableau Power Supply [TP7]
- Tableau PCIe Adapter Cable – 8″ [TC-PCIE-8]
- Tableau PCIe Card SSD Adapter [TDA7-1]
- Tableau PCIe M.2 SSD Adapter [TDA7-2]
- Tableau PCIe Adapter for Apple SSD [TDA7-3]
- Tableau PCIe U.2 SSD Adapter Cable [TDA7-4]
- Tableau Apple 2016+ PCIe SSD Adapter [TDA7-7]
- USB 3.0 A-to-B Cable – 6 ft [019914]
- USB-A (female) to USB-C (male) 3.0 Adapter [019927]
- Rugged Case with Foam Inserts [008098]
- T7u Quick Reference Guide
TKDA-PCIE-5PC (PCIe adapters only. No T7u unit, power supply or cables)
NOTE: The TKDA-PCIE-5PC replaces the older TKDA7-3PC-BNDL.
- Tableau PCIe Card SSD Adapter [TDA7-1]
- Tableau PCIe M.2 SSD Adapter [TDA7-2]
- Tableau PCIe Adapter for Apple SSD [TDA7-3]
- Tableau PCIe U.2 SSD Adapter Cable [TDA7-4]
- Tableau Apple 2016+ PCIe SSD Adapter [TDA7-7]
- Tableau PCIe Adapter Cable – 4″ [TC-PCIE-4]
- Black TB6 bag that holds the above items
We also offer the T7u, all other Tableau write-blocking devices, plus all related cables and accessories in our premium write-blocking kit for a more comprehensive option: EFS Premium Tableau Write Blocking Kit.

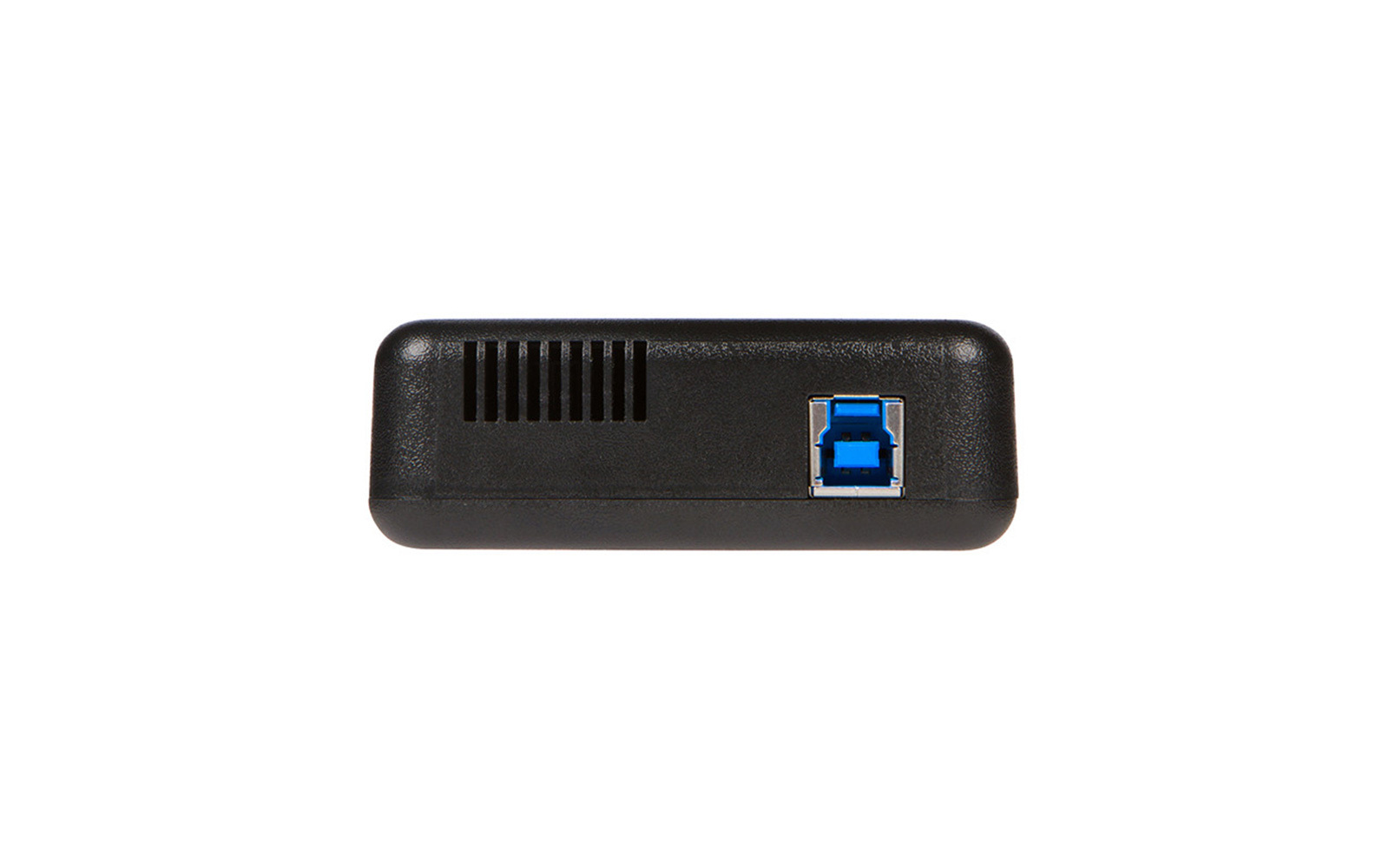

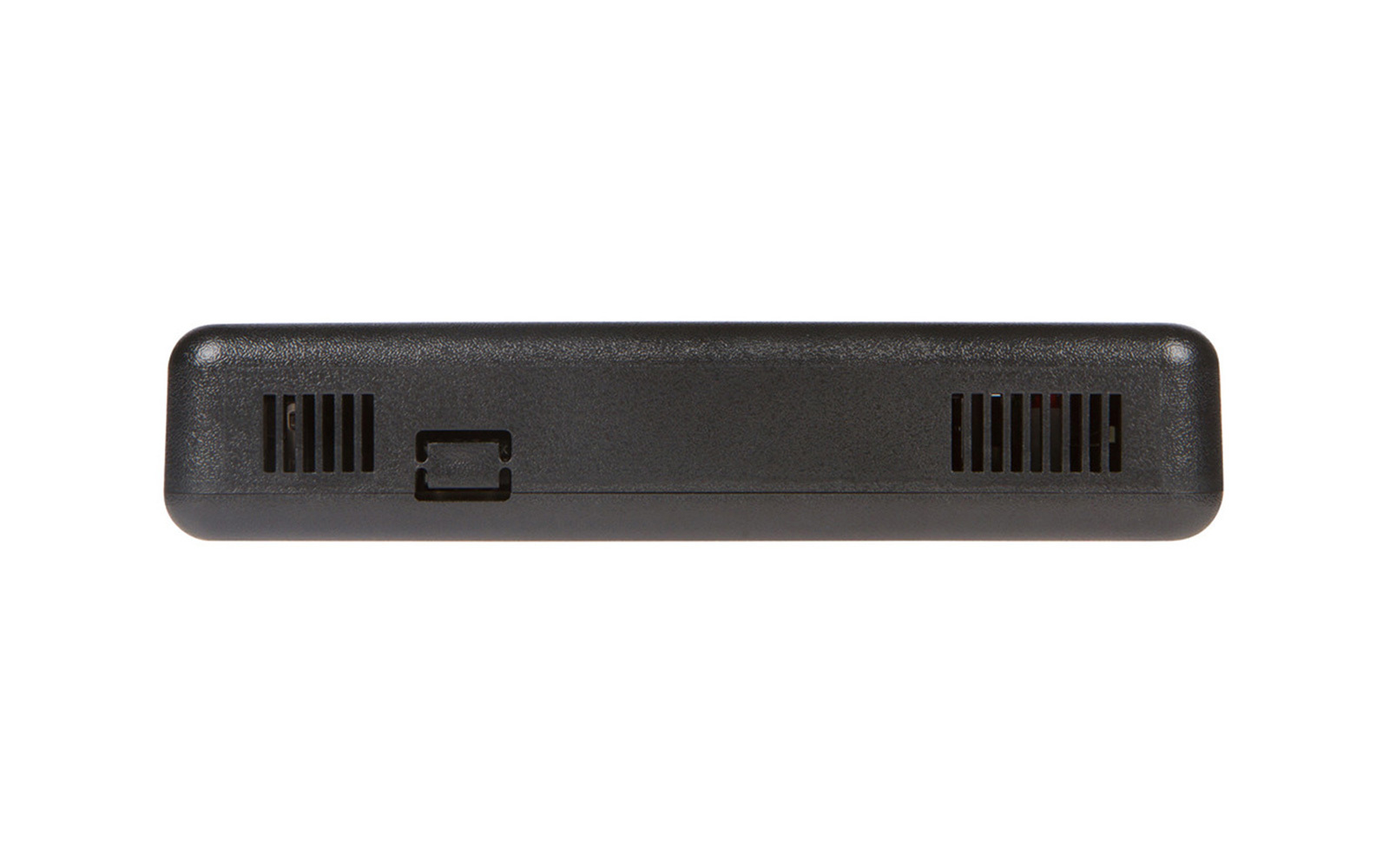

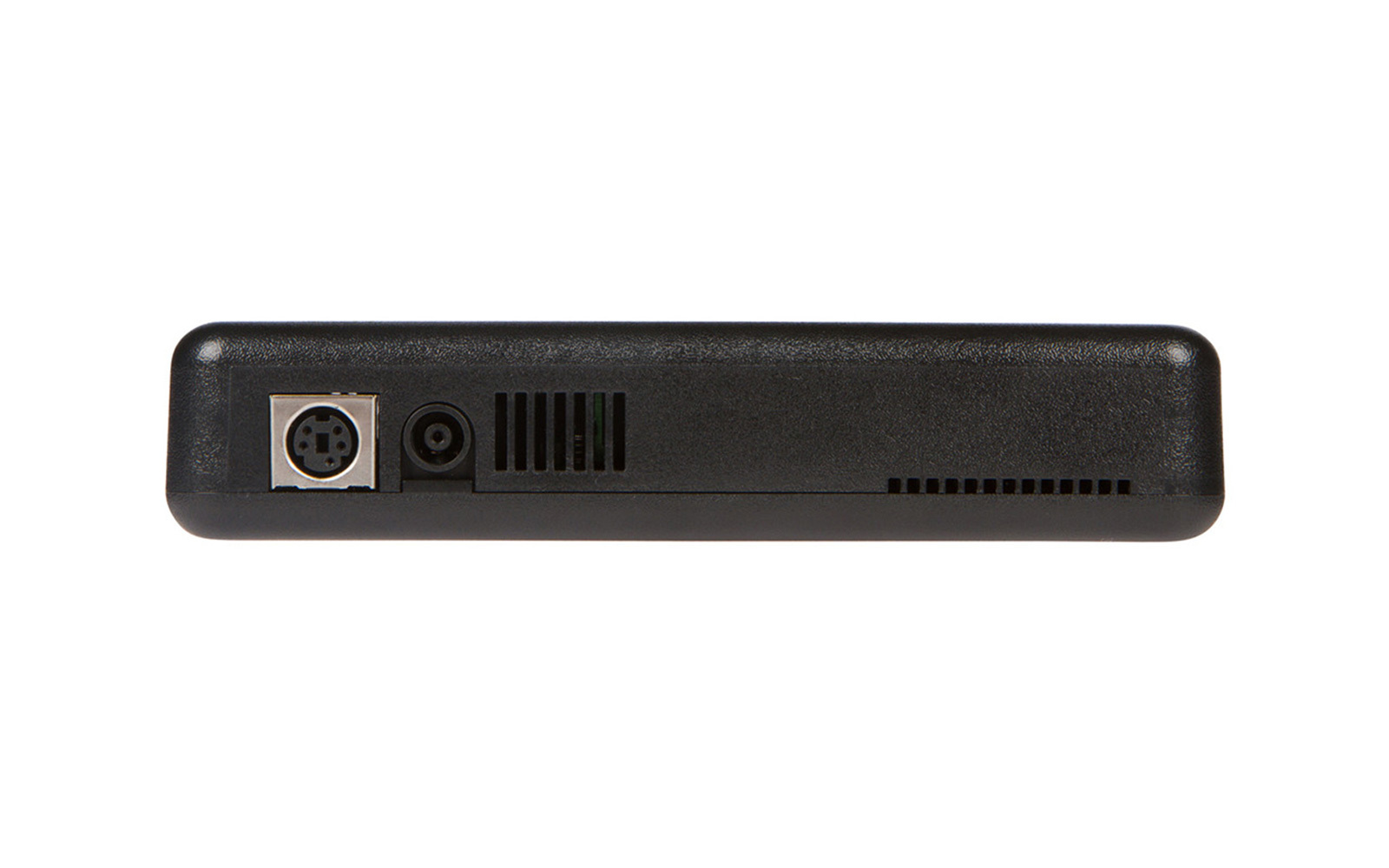

| Host side connector | One USB 3.0 Standard-B connector |
| Top Side Connector | DC Input: One 5-pin mini-DIN connector for use with the Tableau TP2 power supply, and one bayonet connector for use with the Tableau TP5 and TP7 power supplies |

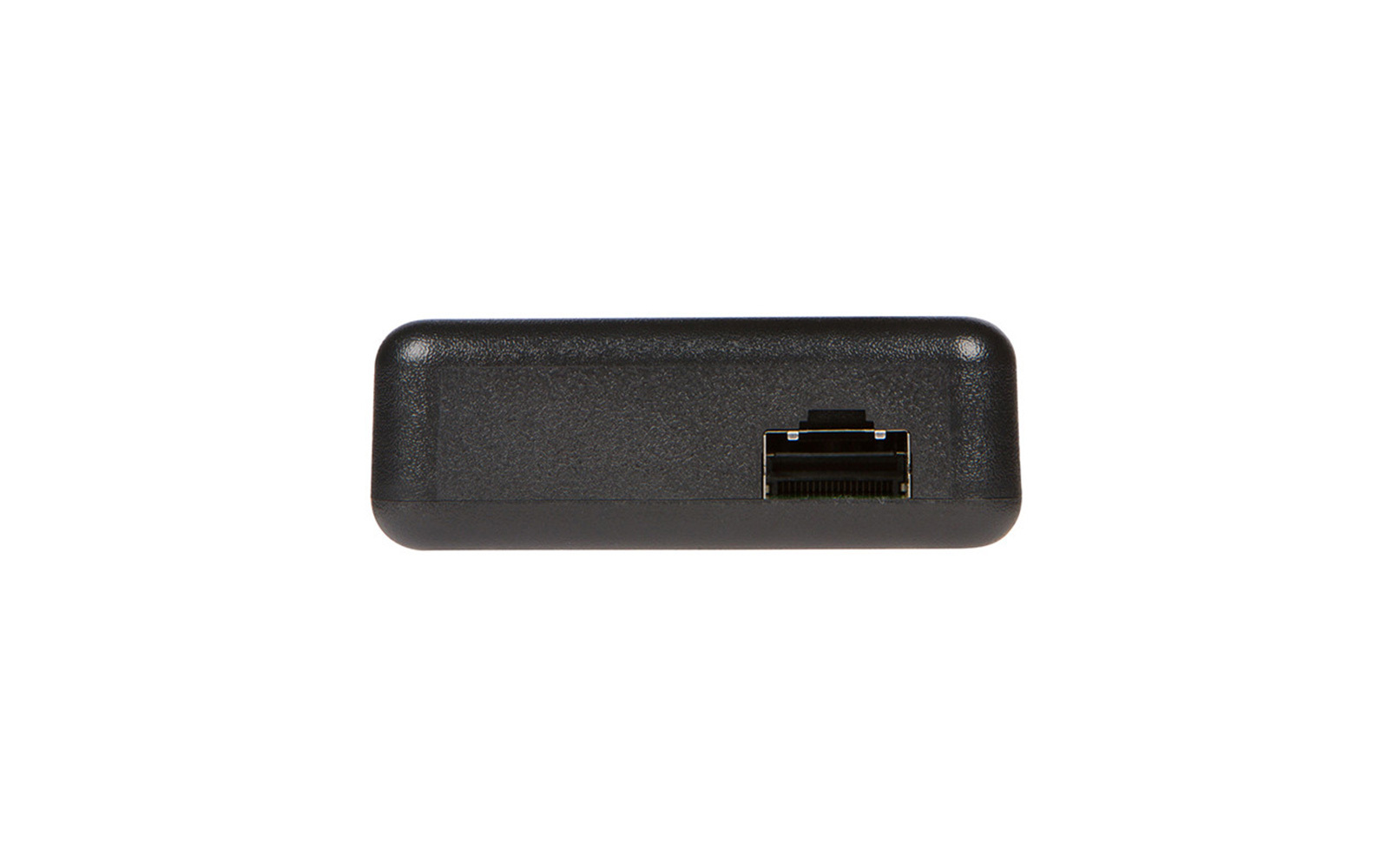

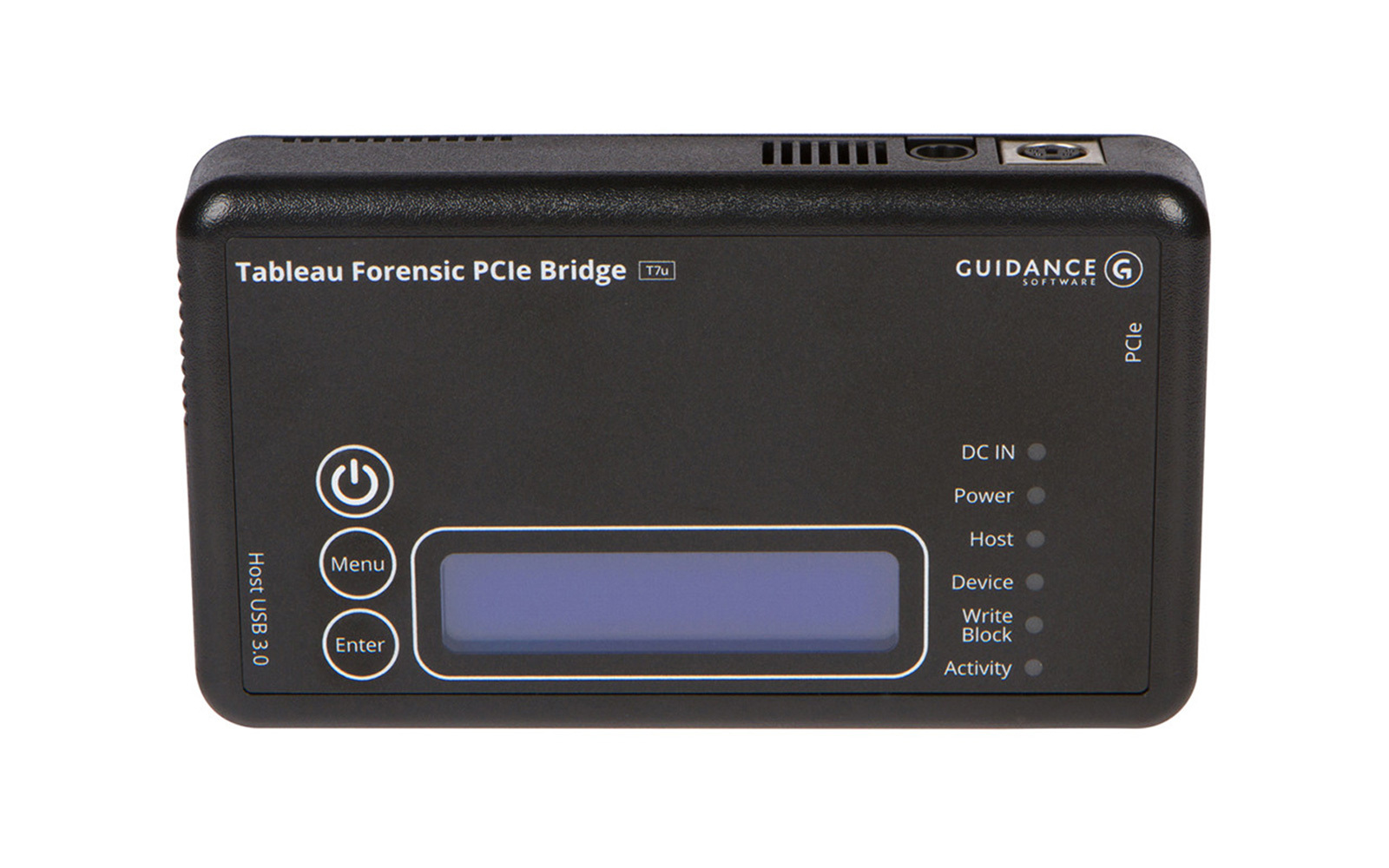

| Device side connector | One Proprietary PCIe connector |
| DIP Switch | The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T7u Quick Reference Guide for more information |
| LCD | 2 Row x 16 Column monochrome LCD character display with LED backlight |
| Buttons | Three buttons: “Menu” and “Enter” buttons for navigation, plus an “On/Off” button to control the power |
| Status LEDs | Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity |
| PCIe Device Compatibility | PCIe devices that comply with the AHCI standard or NVMe 1.0 specification are supported by the TDA7 family of PCIe adapters |
| Host OS Compatibility |
Microsoft Windows version 7, 8, 10 Macintosh OS X Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0) |
| Warranty | One year parts and workmanship from date of purchase |
