SiForce Tableau Forensic Acquisition Unit (FAU)

SiForce Tableau Forensic Acquisition Unit (FAU)

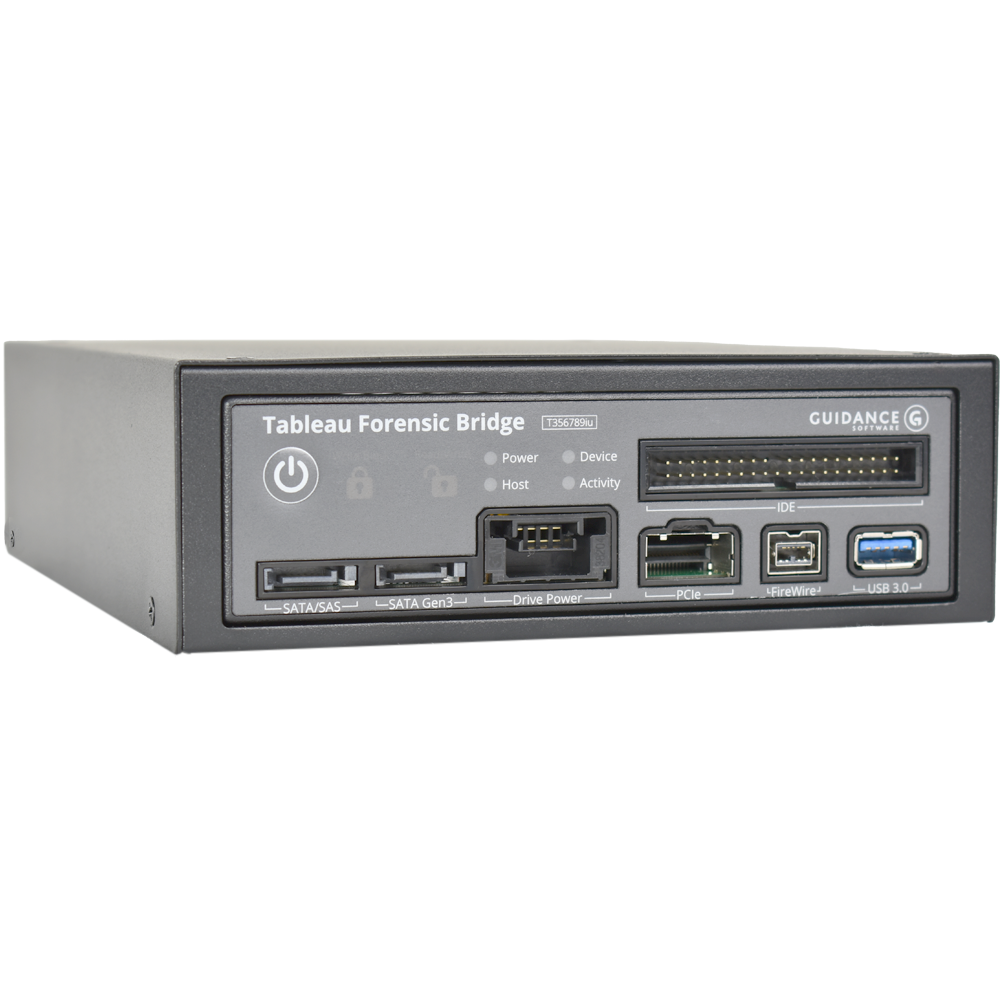

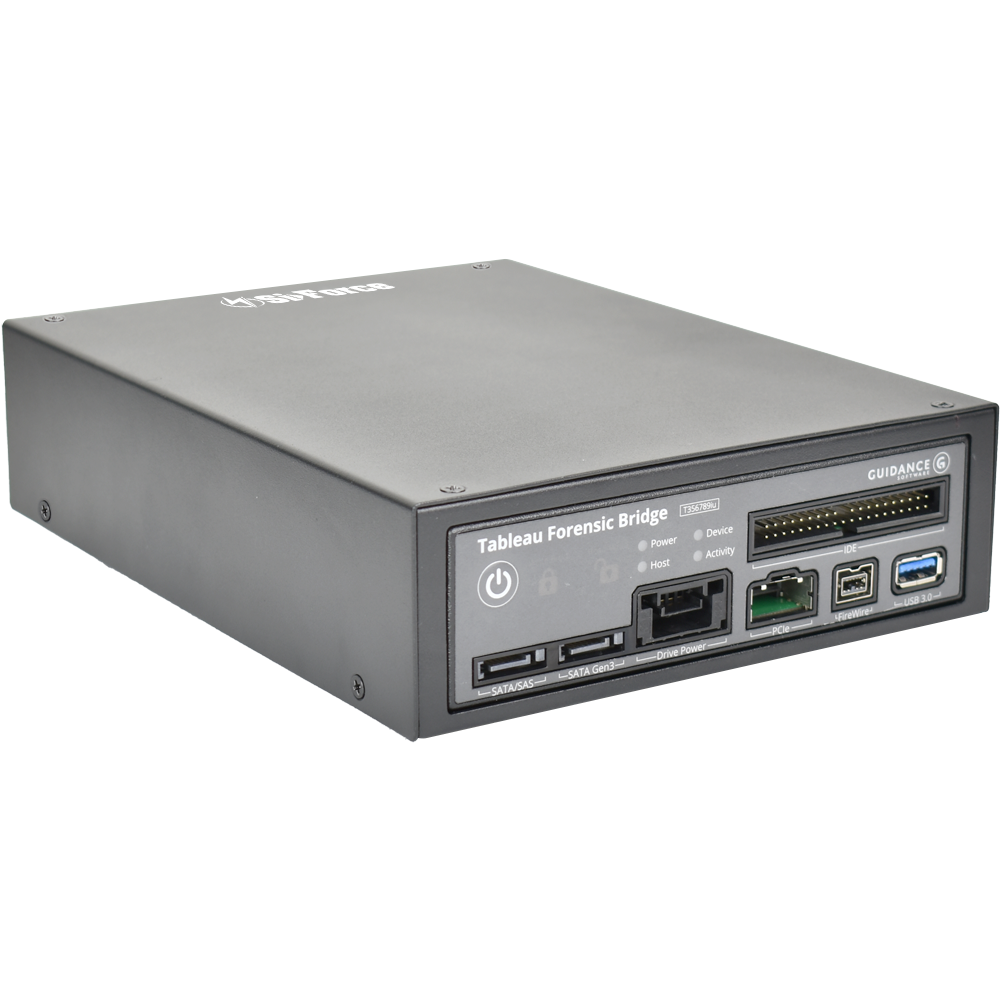

The SiForce Tableau FAU is a portable version of the Tableau Forensic Universal Bridge [T356789iu], a write-blocker that supports forensic acquisitions of SATA, USB, PCIe, SAS, FireWire 800, and IDE. Various cables, adapters, accessories, and a carrying case are all included by default.

Key Features:

• All necessary cables and adapters are included to forensically acquire from USB, SATA, SAS, IDE, PCIe, and FireWire devices of many form factors

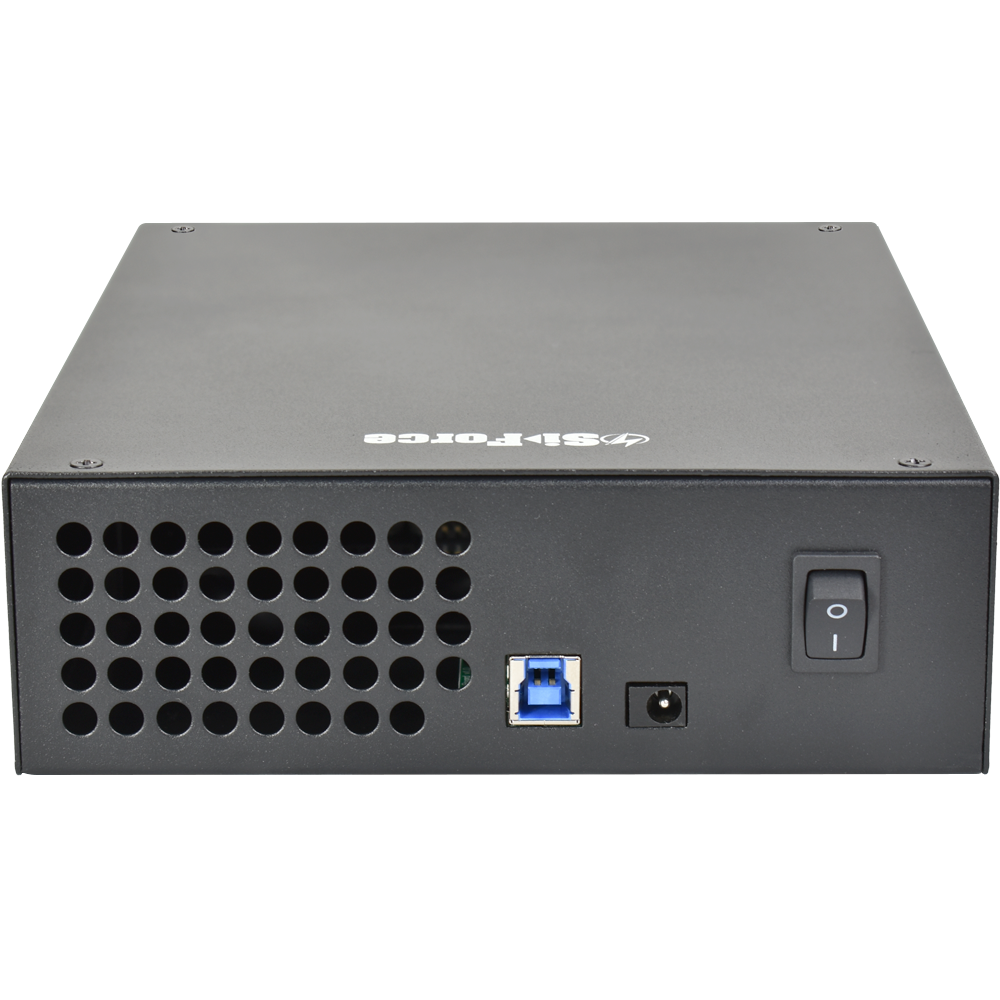

• The unit is portable with USB 3.0 host computer connection (or via USB C by using the included adapter)

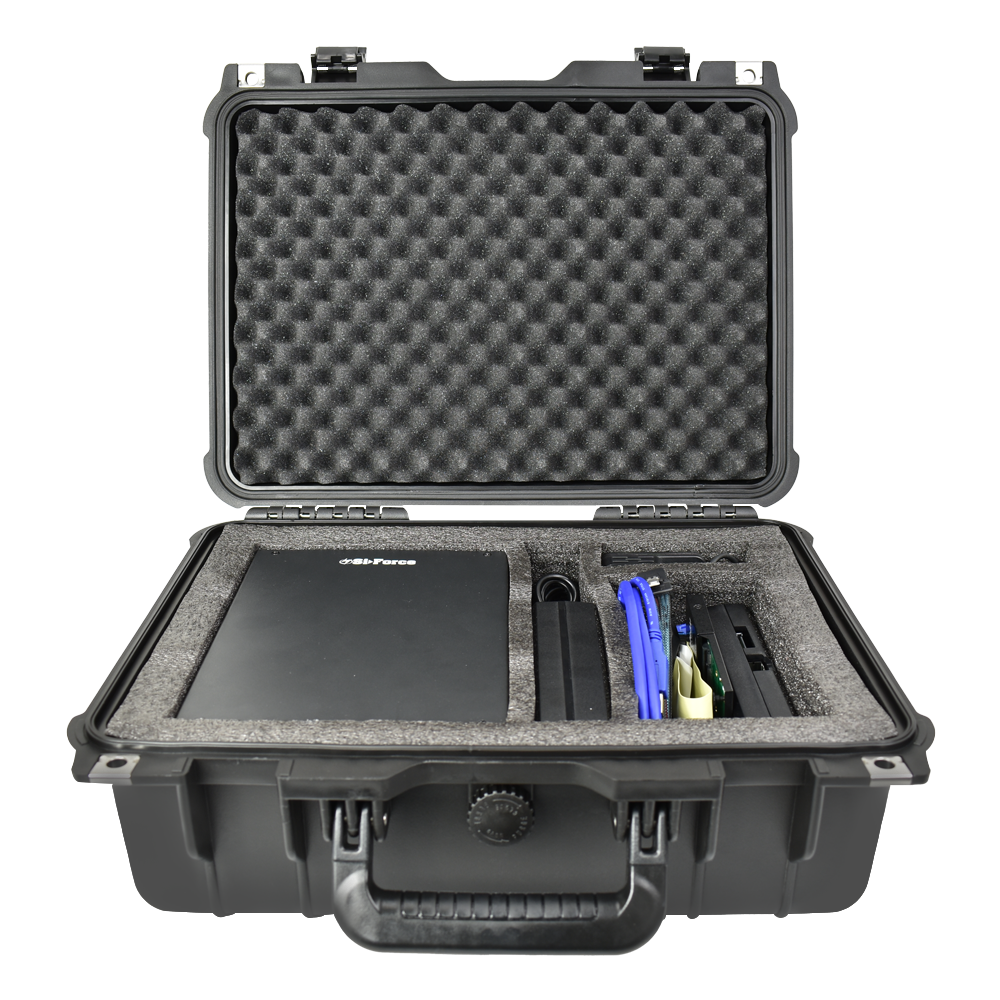

• A rugged carrying case is included to protect the unit and its accessories during travel or at rest

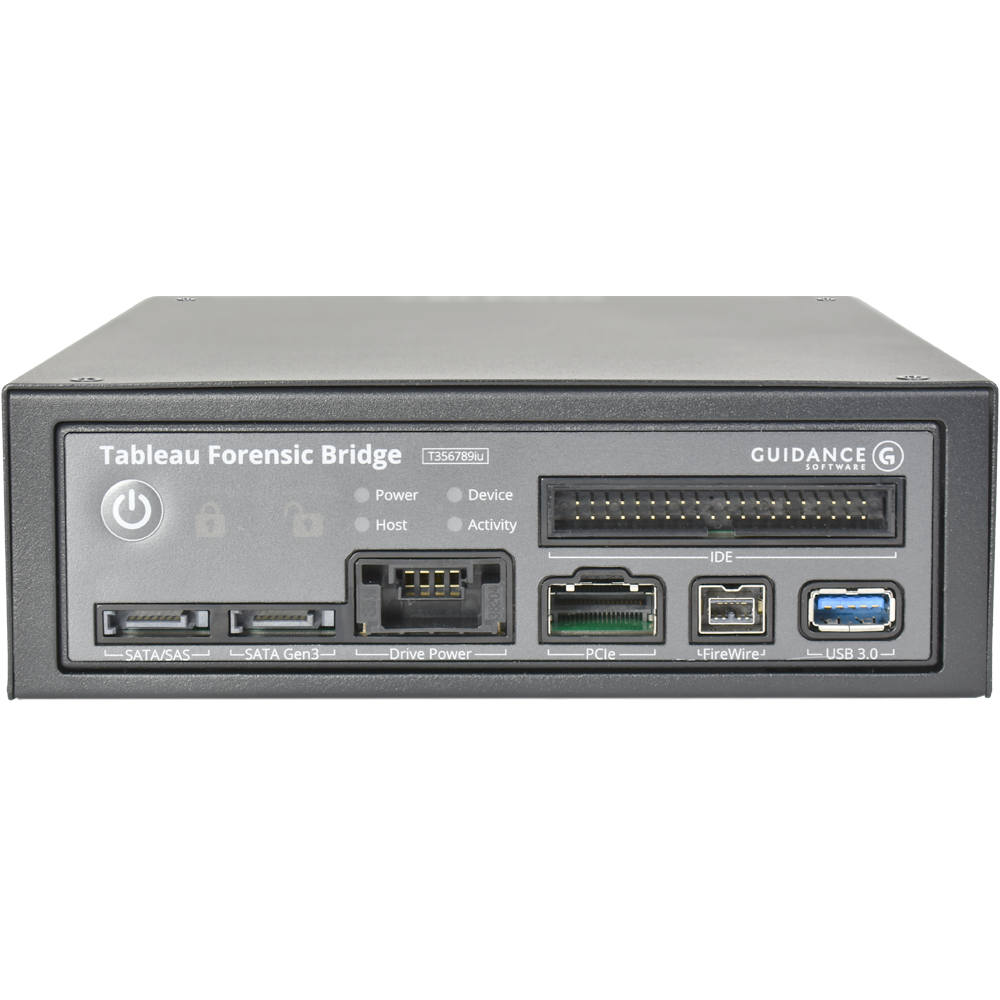

• Color LED indicators are located on the front of the unit to distinguish “Write Block” and “Read/Write” mode
• Free Tableau firmware updates

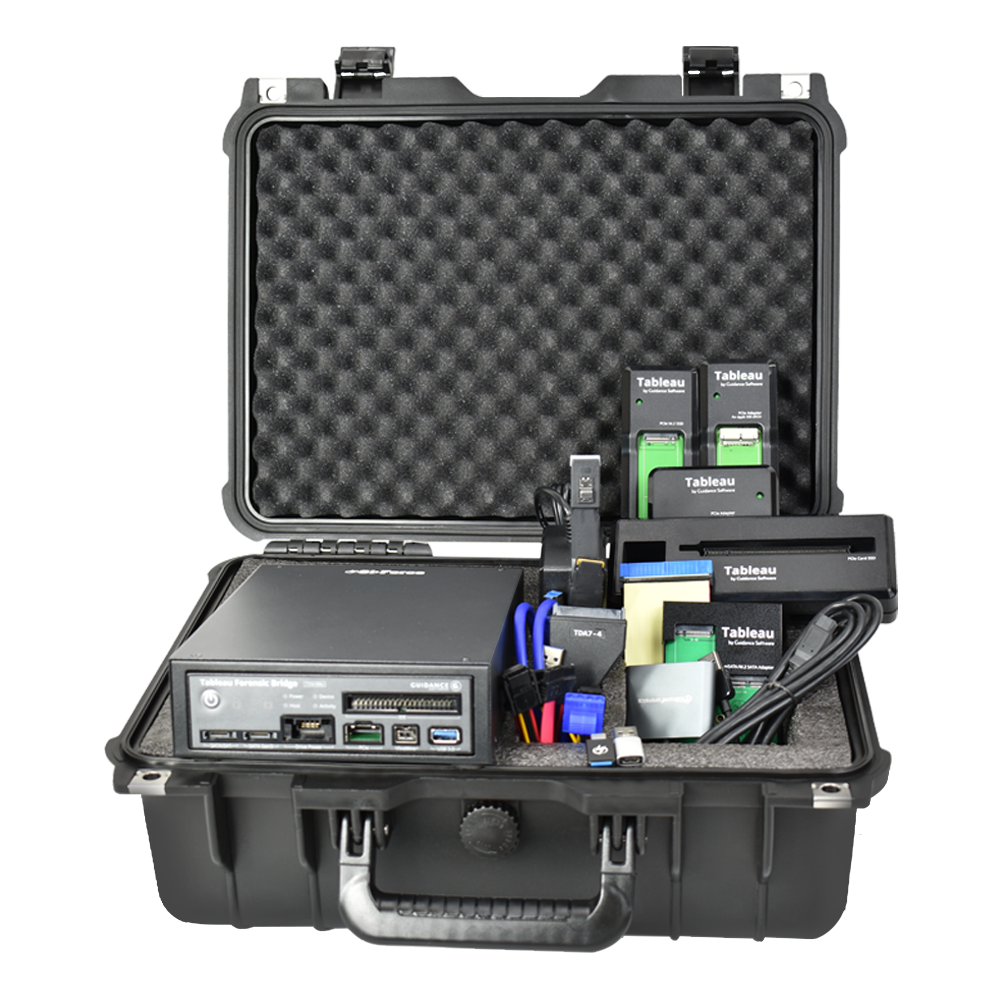

Included Accessories**:

• Tableau Unified SATA/SAS Signal and Power Cable (3M-style) – 8″ [TC4-8-R2]
• Tableau Molex to 3M Drive Power Cable – 8″ [TC2-8-R2]
• Tableau IDE Cable – 8″ [TC6-8]
• Tableau USB 3.0 A-to-B Cable – 6′ [TC-USB3] (for connecting to the host device)
• Tableau FireWire 800 9-pin to 9-pin Cable – 6′ [TC7-9-9]
• Tableau mSATA / M.2 SATA SSD Adapter [TDA3-3]
• Tableau PCIe Adapter Kit Bundle [TKDA-PCIE-5PC], which includes:
  • • PCIe Card SSD Adapter [TDA7-1]
    • PCIe M.2 SSD Adapter [TDA7-2]
    • PCIe Adapter for Apple SSD [TDA7-3]
    • PCIe U.2 SSD Adapter Cable [TDA7-4]
    • Apple 2016+ PCIe SSD Adapter [TDA7-7]
    • Tableau PCIe Adapter Cable – 4″ [TC-PCIE-4]
• SiForce USB 3.0 Media Card Reader (USB adapter for SD, MicroSD, MMC, and CF Memory Cards)
• USB C Female to USB A Male Adapter (for reading USB C target devices)
• USB A Female to USB C Male Adapter (for USB C connection to host device)
• Power Supply and Power Cable

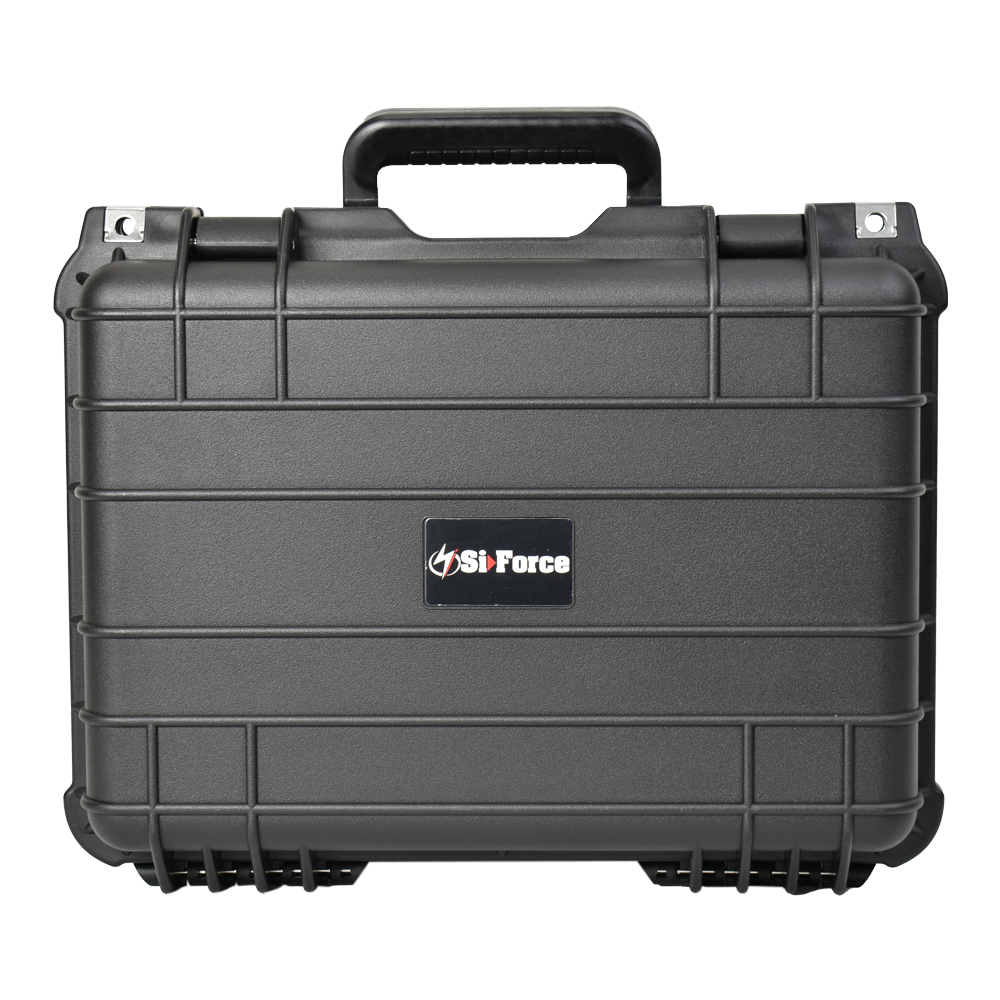

• SiForce Rugged Case with Foam Protection

**The accessories provided by Silicon Forensics may change at any time without notice. For the most up to date accessories that are included, see the Silicon Forensics website:
https://siliconforensics.com/siforce-forensic-acquisition-unit-fau/

Note: The PCIe port on the FAU unit must be used in combination with one of the included Tableau PCIe Adapters from the Tableau PCIe Adapter Kit Bundle [TKDA-PCIE-5PC]:

• Tableau PCIe Card SSD Adapter [TDA7-1]
• Tableau PCIe M.2 SSD Adapter [TDA7-2],
• Tableau PCIe Adapter for Apple SSD [TDA7-3],
• Tableau PCIe U.2 SSD Adapter Cable [TDA7-4], or
• Tableau Apple 2016+ PCIe SSD Adapter [TDA7-7].
